*2 [Minimize], [Maximize], [Restore], and [Close] Buttons
[Minimize] Button (
)
Minimizing a window reduces the window to an icon.
[Maximize] Button (
)
When a window is not at its maximum size, this button appears in
the window’s upper-right corner. When pressed, this enlarges the
edit window to its maximum size.
[Restore] Button (
)
When a window is already at its maximum size, the [Maximize] but-
ton switches to the [Restore] button, which returns the window to its
previous size.
[Close] Button (
)
When pressed, this closes the active window.
*3 Tab Sheets
The provided tab sheets enable the operator to edit the pattern pro-
gram.
*4 Drop-Down List
When you double-click a text box, the text box is changed to a combo
box that has a down arrow on the right side.
When you click the down arrow, a drop-down list box opens.
Set a parameter by selecting one of the options in the drop-down list
box.
A scrollbar might appear on the right side of a drop-down
list when there are many options.
*5 Scrollbars
When the up arrow (
) is pressed, the window scrolls up.
When the down arrow (
) is pressed, the window scrolls down.
When the left arrow (
) is pressed, the window scrolls left.
When the right arrow (
) is pressed, the window scrolls right.
0110-003 2-84
AFO01EDTP
4.1 Basic Operations in Edit Windows
4.1.3 Basic Usage of Text Boxes
• How to enter numerical values
Follow the procedure below to enter numerical values in the text boxes
that require numerical values.
Using the "Tenkey" window

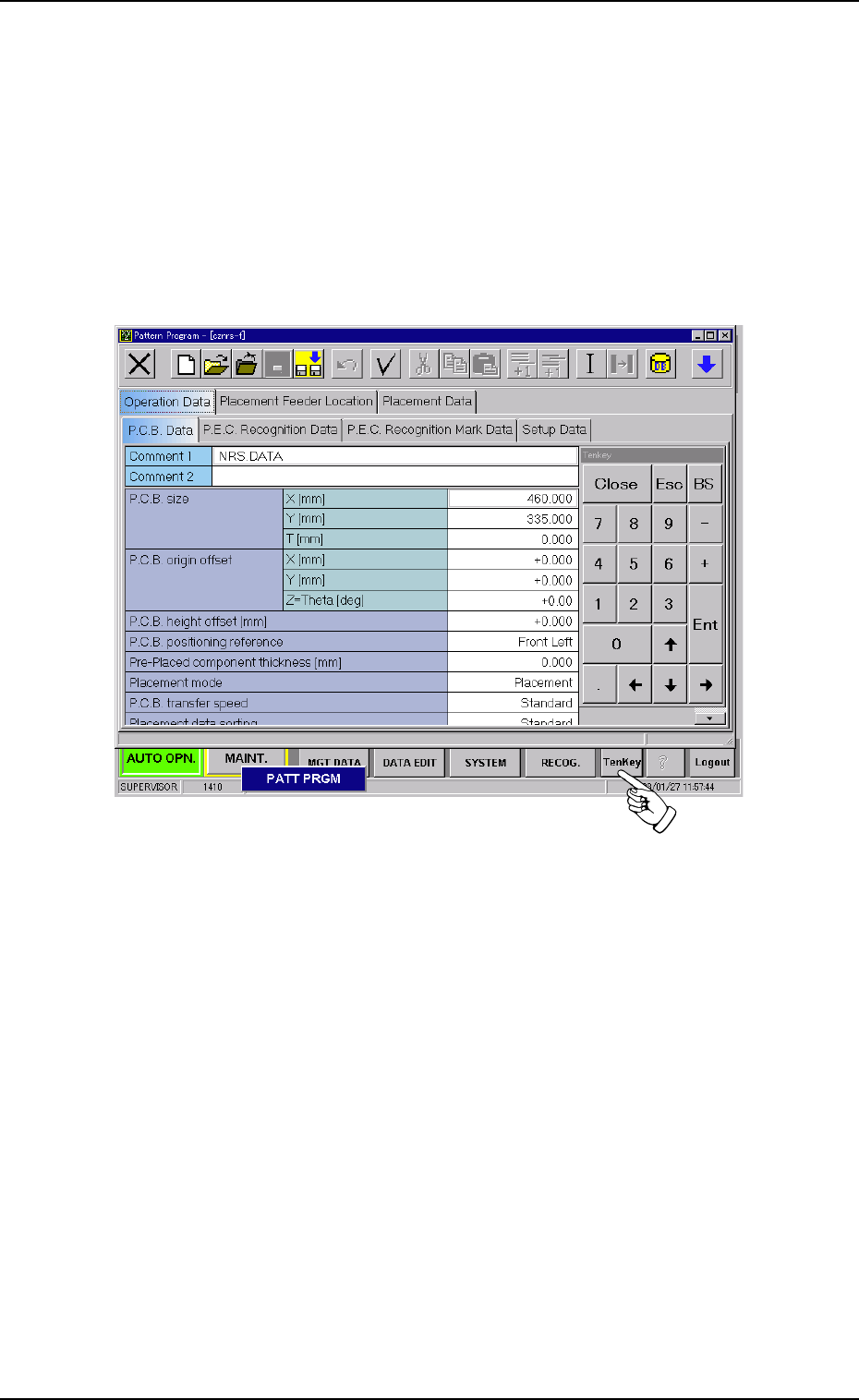

(1) Press the [TenKey] button on the main menu bar. The "Tenkey" win-
dow appears.
Fig. 3B134
0301-005 2-85
AFO01EDTP
4.1 Basic Operations in Edit Windows

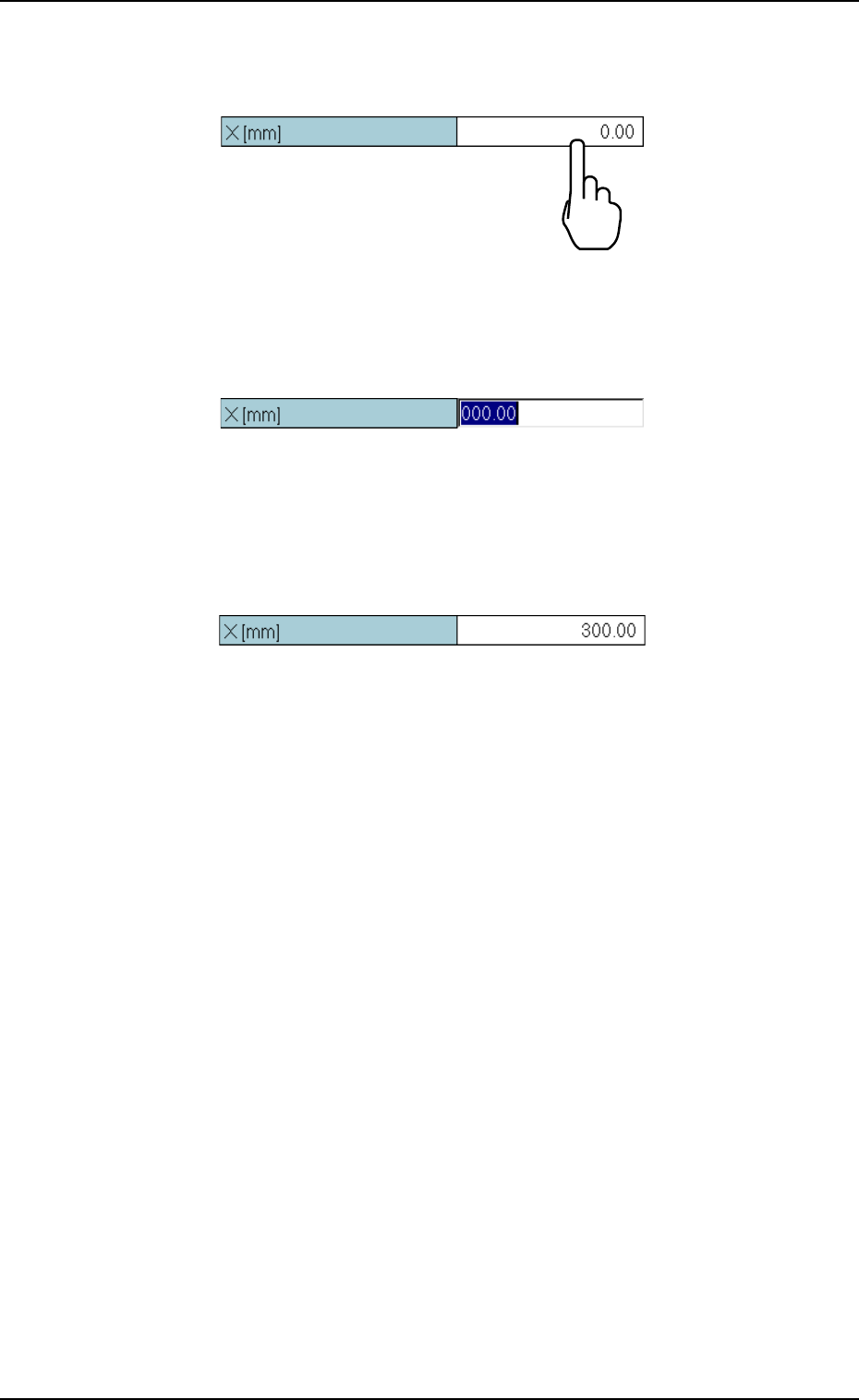

(2) To enter a parameter, press the text box quickly twice.
Or, double-click the text box with the pointing device.
Fig. 3B135
The text box is set ready for data entry.
Fig. 3B136
(3) When a parameter is entered, using the "Tenkey" window and the
[Ent] button is pressed, it is set in the text box.
Fig. 3B137
0110-003 2-86
