• How to set or change a password (1) When the [Password Set] button is pressed according to the given authority , the "Password Entry" edit window opens. Fig. 3E52-4 "Password Entry" Edit Window (2) …

5.2 "Password" Tab

The corresponding tab sheet enables the operator to set a password

and the scope of authority according to the given authority.

The "Password" tab sheet is provided with the following 3 tab sheets.

When a tab is pressed, the corresponding tab sheet appears.

Table 3E7

Tabs Description

Password Set The corresponding tab sheet enables the operator to set a password

according to the given authority.

Available Area Set (1/2) The corresponding tab sheet enables the operator to specify the scope

of authority to use the described functions ("Operation Mode (Modify)"

through "Placement Head/Noz Data").

Available Area Set (2/2) The corresponding tab sheet enables the operator to specify the scope

of authority to use the described functions ("Unit Adjustment" through

"Machine Set-up").

5.2.1 "Password Set" Tab Sheet

• Sheet Layout

When the "Password Set" tab is pressed, the following tab sheet ap-

pears.

Fig. 3E52-3 "Password Set" Tab Sheet

• Sheet Composition

*1 "Supervisor" Group Box

A password can be set in this group box for the user who has the

scope of authority as "Supervisor".

*2 "Operator #1" Group Box

A password can be set in this group box for the user who has the

scope of authority as "Operator #1".

*3 "Operator #2" Group Box

A password can be set in this group box for the user who has the

scope of authority as "Operator #2".

5.2 "Password" Tab

0301-005 5-69 AFO01EDTP

• How to set or change a password

(1) When the [Password Set] button is pressed according to the given

authority, the "Password Entry" edit window opens.

Fig. 3E52-4 "Password Entry" Edit Window

(2) Enter a password and press the [Set] button. the "Password Reen-

try" edit window opens. Enter the same password again and press

the [Set] button.

The password is set or changed and "Set" appears in red on the

right side of the [Password Set] button.

• How to cancel the set password

(1) To cancel the set password, press the [Password Set] button ac-

cording to the given authority. The "Password Entry" edit window

opens.

(2) Press the [Set] button without entering any characters in the entry

field. The "Password Reentry" edit window opens. Press the [Set]

button again without entering any characters.

The preset password is canceled and "Not Set" appears in blue on

the right side of the [Password Set] button.

5.2 "Password" Tab

01 10-003 5-70 AFO01EDTP

5.2.2 "Available Area Set (1/2) or (2/2)" Tab Sheet

• Sheet Layout

When the "Available Area Set (1/2)" tab is pressed, the following tab

sheet appears.

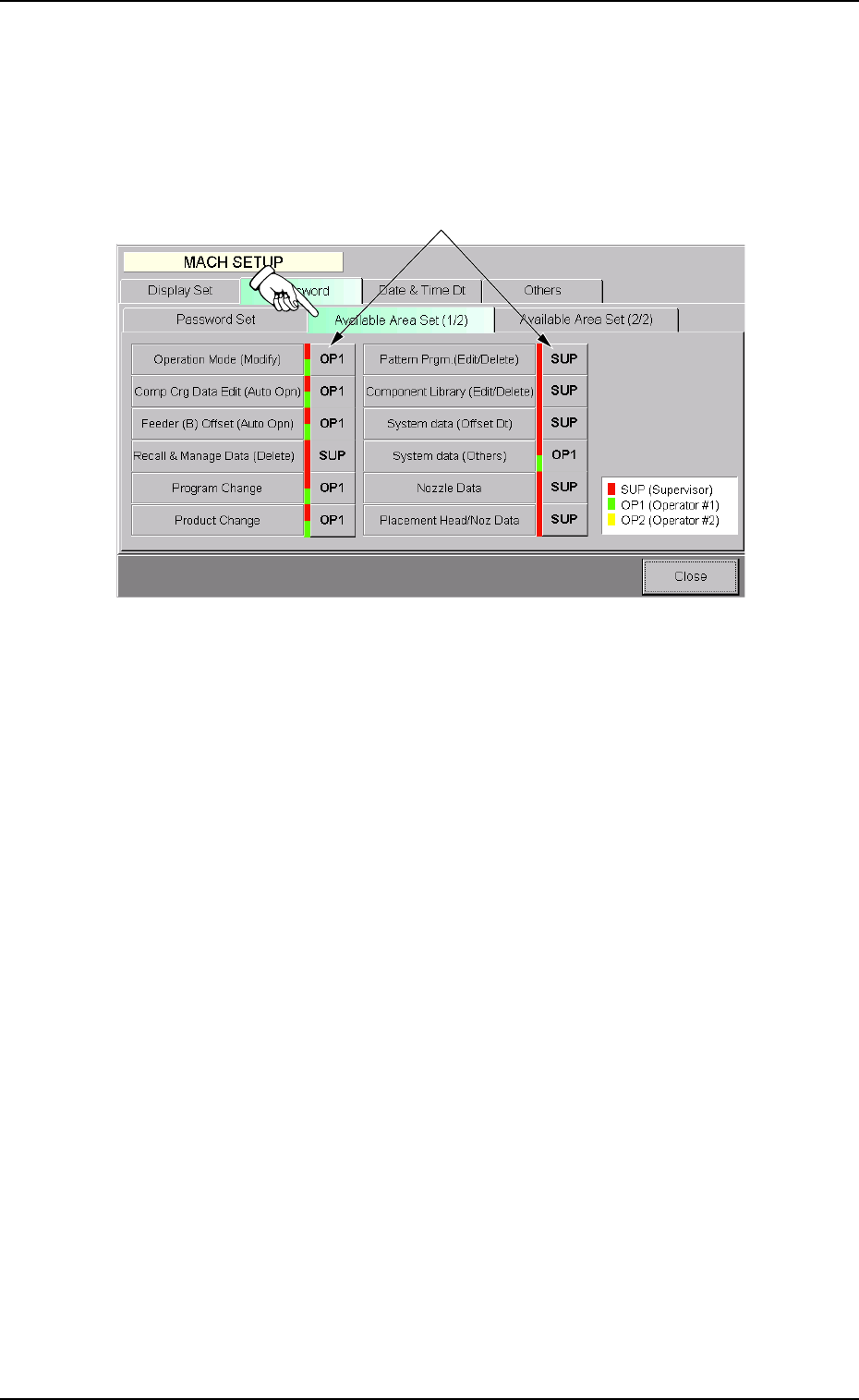

Fig. 3E52-5 "Available Area Set (1/2)" Tab Sheet

• Sheet Composition

*1 "Available Area Set" Buttons

The labels on the buttons indicate that the functions described on

the left side of the buttons are available for the following operators.

SUP : This indicates that only the supervisor is given the authority to

use the function.

When a red bar appears on the right side of the function

name, it indicates that the function is available for "Super-

visor"

OP1 : This indicates that the supervisor and the operator #1 are given

the authority to use the function.

Red and green bars appear on the right side of the func-

tion name.

OP2 : This indicates that the supervisor, the operator #1, and the op-

erator #2 are given the authority to use the function.

That is, the selection means that all operators can use the func-

tion.

Red, green, and yellow bars appear on the right side of the

function name.

5.2 "Password" Tab

0301-004 5-71 AFO01EDTP
