(A01_17) Overall P .C.B. B.B.R. Mode Select one of the following options for the overall P .C.B. B.B.R. function. Disable : The overall P .C.B. B.B.R. detection function is not used. Enable : The overall P .C.B. B.B.R. d…
Select one of the following options to determine how to capture an
image of the unit P.C.B. B.B.R. detection mark (bad mark).
Black (E/NR) : A black mark (E/NR) is used.
White (E/R) : A white mark (E/R) is used.
Component prechuck
"Enable" or "Disable" can be selected to determine whether or not
components should be prechucked.
Disable : Components are not picked up until the unit P.C.B.
B.B.R. detection is completed.
Enable : Components are picked up before the unit P.C.B.
B.B.R. detection is completed.
Sequence
Set one of the following options when both P.E.C. recognition and
unit P.C.B. B.B.R. detection functions are used together.
Bad Mark : The unit P.C.B. B.B.R. detection function is acti-
vated before the P.E.C. recognition function. No
recognition is implemented on the unit P.C.B.
where a bad mark is put.
Recognition: The P.E.C. recognition function is activated before
the unit P.C.B. B.B.R. detection function. Positional
correction is made according to the result of the
P.E.C. recognition during movement to the bad
mark position.
0301-005 2-26
AFO01EDTP
2.3 Operation Data
EnableComponent prechuck
Fig. 3B35
Black (E/NR)
Fig. 3B34
Bad Mark
Sequence
Fig. 3B36
(A01_17) Overall P.C.B. B.B.R.
Mode
Select one of the following options for the overall P.C.B. B.B.R.
function.
Disable : The overall P.C.B. B.B.R. detection function is not
used.
Enable : The overall P.C.B. B.B.R. detection function is used.
X [mm], Y [mm]
When "Enable" is selected, the coordinates (X and Y) of the bad
mark should be set for the overall P.C.B. B.B.R. detection function.
Unit: mm
0210-004 2-27
AFO01EDTP
2.3 Operation Data
Disable
Mode
Fig. 3B37
Fig. 3B38
X [mm]
Y [mm]
000.00
000.00
Overall P.C.B. B.B.R. Detection Function
If most of the unit P.C.B.’s are not defective (bad mark attachment
not required) but the machine implements the unit P.C.B. bad board
reject function on every unit P.C.B., the production rate of the ma-
chine will deteriorate. To avoid this, the overall P.C.B. B.B.R. detec-
tion function becomes effective.
When this function is activated, the machine implements the overall
P.C.B. B.B.R. detection function to detect a bad mark on the overall
P.C.B. before the implementation of the unit P.C.B. B.B.R. detection
on each unit P.C.B. If no bad mark is detected on the overall P.C.B.,
the machine does not implement the unit P.C.B. B.B.R. detection
function on each unit P.C.B. of the multi-unit P.C.B. because each
unit P.C.B. is considered "Defect-Free".

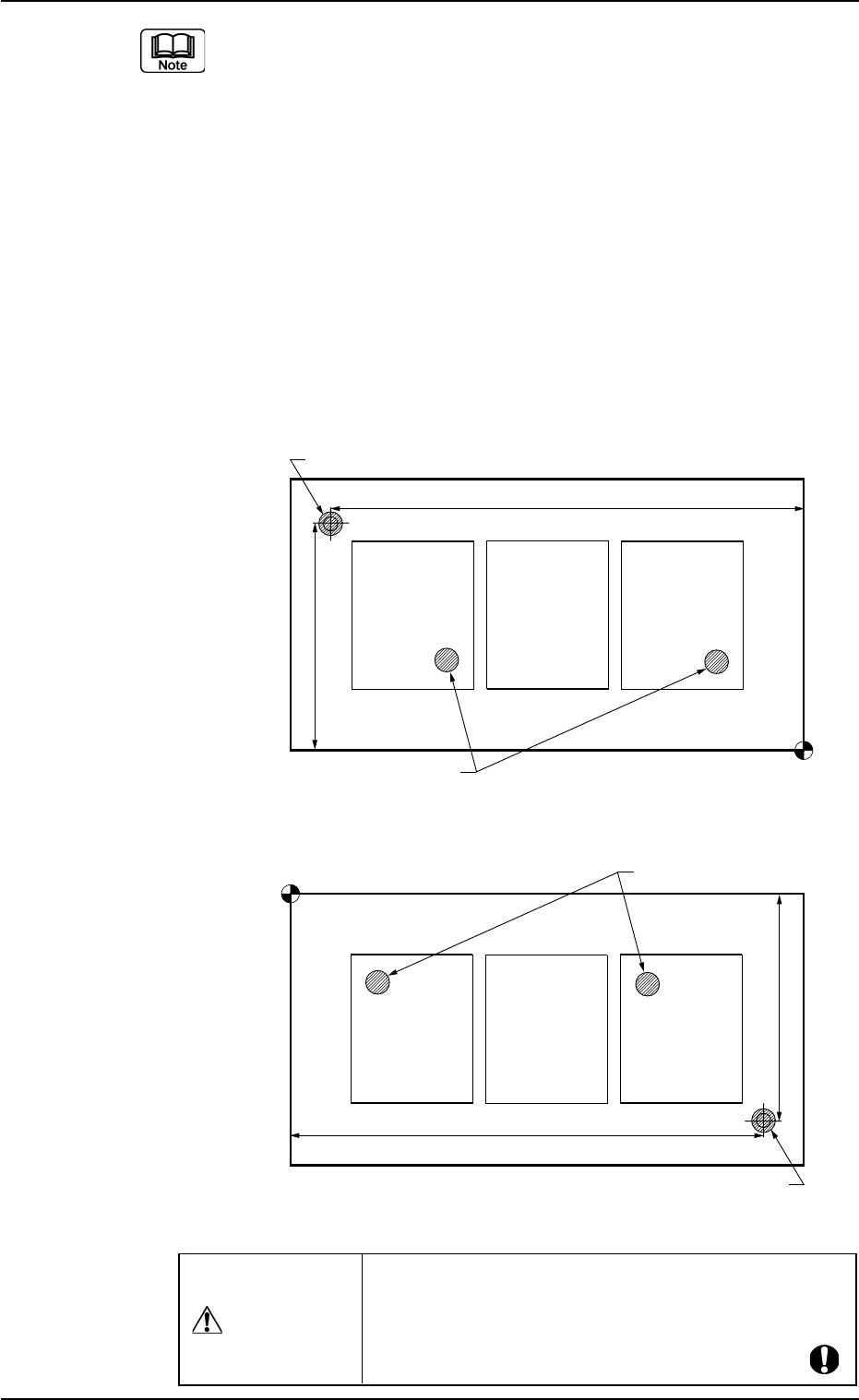

Fig. 3B39
Placement Coordinate Reference (N
0
)
Bad Mark for Overall P.C.B. B.B.R. Function
Normal Bad Marks
Y (Vertical)
X (Horizontal)
Placement Coordinate Reference (N
0
)
Bad Mark for Overall P.C.B. B.B.R. Function
Normal Bad Marks
Y (Vertical)
X (Horizontal)
TCM-X100
TCM-X200 TCM-X300
0210-004 2-28 AFO01EDTP
2.3 Operation Data
When "Enable" is set in the "Overall P.C.B. B.B.R."
text box, be sure to put overall P.C.B. B.B.R. bad marks
on the bad-marked P.C.B.’s. Otherwise,
all unit P.C.B.’s are regarded as "Defect-Free".
CAUTION
