3.2.5 "Lead Data" Tab (Complex Shape)
The corresponding tab sheet appears when "IC (Complex)", "Connec-
tor (Complex)", or "Other Leaded (Complex)" is selected in the "Com-
ponent shape" text box.
• Sheet Layout
When the "Lead Data" tab is pressed in the "Shape Data" tab sheet,
the following tab sheet appears.

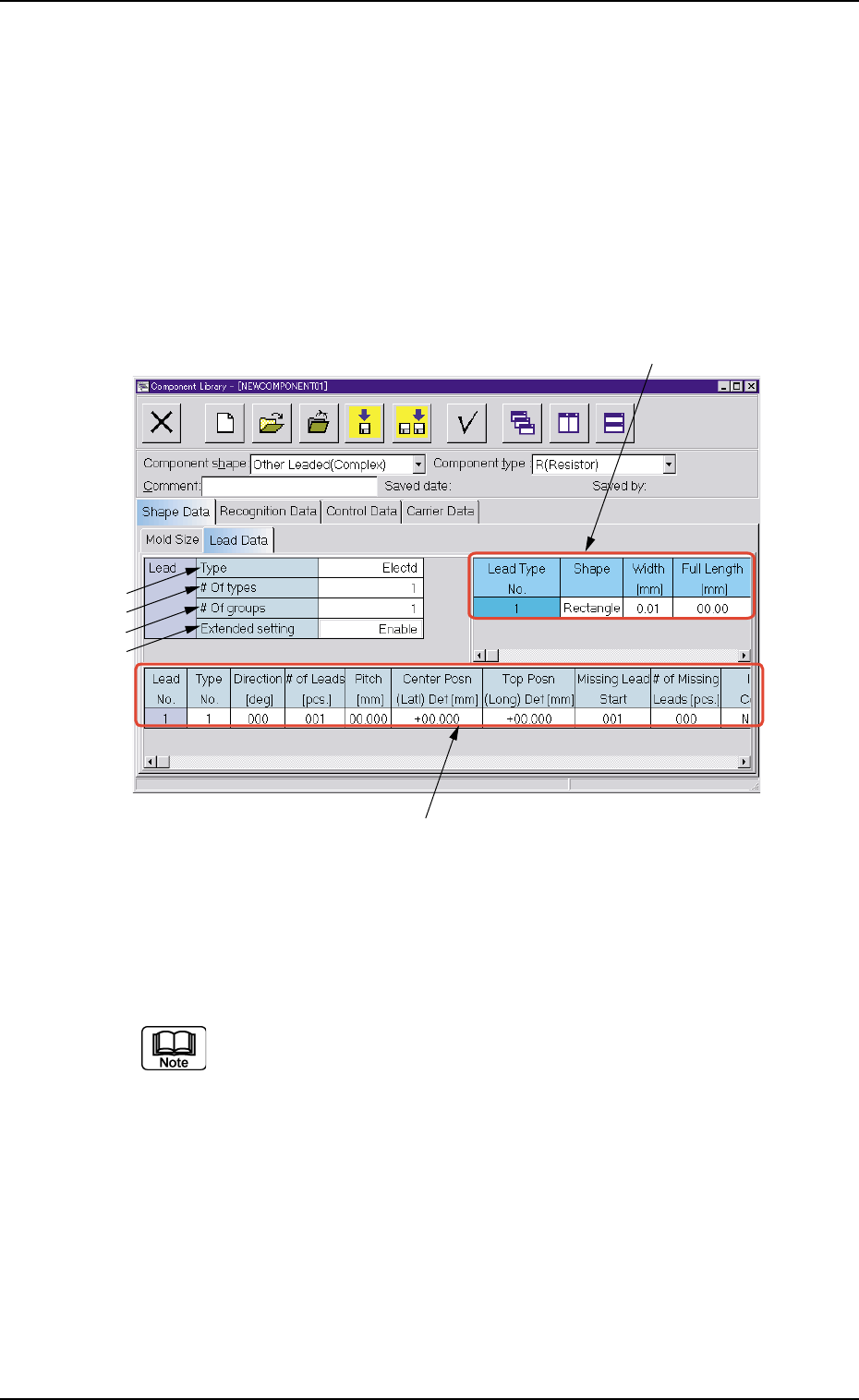

Fig. 3C12-2 "Lead Data" Tab Sheet ("IC (Complex)" Selected)
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" (Section 2) for the
detailed information on how to enter each parameter.
0307-005 3-23
AFO01EDTP
3.2 "Shape Data" Tab
*5
*6
*1
*2
*3
*4
(1) Component Shape: IC (Complex)
*1 Type
Different items will be displayed in "*5", depending on which
type is selected in this text box.
Gull Wing
"Width [mm]" and "Length [mm]" appear in "*5".
J Bend, Straight
"Width [mm]", "Length [mm]", and "Full Length [mm]" appear
in "*5".
Leadless
"Width [mm]" and "Full Length [mm]" appear in "*5".
*2 # Of types, *3 # Of groups
*4 Extended setting
Different items will be displayed in "*6", depending on which
parameter ("Disable" or "Enable") is set in this text box.
Disable
"Type No.", "Direction [°]", "# of Leads [pcs.]", "Pitch [mm]",
"Center Posn (Latl) Det [mm]", and "Top Posn (Long) Det
[mm]" appear in "*6".
Enable
"Type No.", "Direction [°]", "# of Leads [pcs.]", "Pitch [mm]",
"Center Posn (Latl) Det [mm]", "Top Posn (Long) Det [mm]",
"Missing Lead Start", and "# of Missing Leads [pcs.]" appear
in "*6".
*5 Lead Type Data
"Width [mm]", "Length [mm]", "Full Length [mm]"
*6 Lead Group Data
"Type No.", "Direction [deg]", "# of Leads [pcs.]", "Pitch [mm]",
"Center Posn (Latl) Det [mm]", "Top Posn (Long) Det [mm]",
"Missing Lead Start", "# of Missing Leads [pcs.]", "Insp Codtn"
0307-004 3-24
AFO01EDTP
3.2 "Shape Data" Tab
0307-004 3-25 AFO01EDTP
3.2 "Shape Data" Tab
(2) Component Shape: Connector (Complex)
*1 Type
Different items will be displayed in "*5", depending on which
type is selected in this text box.
Standard
"Width [mm]" and "Length [mm]" appear in "*5".
Electd
"Shape", "Width [mm]", and "Length [mm]" appear in "*5".
Others
"Width [mm]", "Length [mm]", and "Full Length [mm]" appear
in "*5".
*2 # Of types, *3 # Of groups
*4 Extended setting
Different items will be displayed in "*6", depending on which
parameter ("Disable" or "Enable") is set in this text box.
Disable
"Type No.", "Direction [°]", "# of Leads [pcs.]", "Pitch [mm]",
"Center Posn (Latl) Det [mm]", and "Top Posn (Long) Det
[mm]" appear in "*6".
Enable
"Type No.", "Direction [°]", "# of Leads [pcs.]", "Pitch [mm]",
"Center Posn (Latl) Det [mm]", "Top Posn (Long) Det [mm]",
"Missing Lead Start", "# of Missing Leads [pcs.]", and "Insp
Condtn" appear in "*6".
*5 Lead Type Data
"Shape", "Width [mm]", "Length [mm]", "Full Length [mm]"
*6 Lead Group Data
"Type No.", "Direction [deg]", "# of Leads [pcs.]", "Pitch [mm]",
"Center Posn (Latl) Det [mm]", "Top Posn (Long) Det [mm]",
"Missing Lead Start", "# of Missing Leads [pcs.]", "Insp Condtn"
