1.4 Composition of Placement Data
The set parameters are used to place the components (IDs in the place-
ment feeder location data) on the points with the specified coordinates
in the designated direction.
One step is allocated for each component to be placed.
Refer to "2.5 Placement Data" in "Section 2" for details.
C01 Placement Data Un Table 3B6
Reference No. Labels
C01_01 Placement Data Unit Designation
C02 Placement Data (P Data) Table 3B7
Reference No. Labels
C02_01 Unit Control
C02_02 Unit P.C.B. B.B.R
C02_03 P-No.
C02_04 X, Y
C02_05 Z
C02_06 H
C02_07 Fdr. No.
C02_08 V
C02_09 C
C02_10 Comment
C02_11 X1, Y1
C02_12 X2, Y2
C02_13 FM1, FM2
C03 Placement Data (O) Table 3B8
Reference No. Labels
C03_01 O-No.
C03_02 X, Y
C03_03 Z
C03_04 C
C03_05 Comment
C03_06 B-X, B-Y
0207-004 2 - 6 AFO01EDTP
1.4 Composition of Placement Data
2. Pattern Program
2.1 Types of P.C.B.’s and Required Data
The following shows typical examples (applications) of each data.
Refer to the examples for creation of a pattern program.
Marks in "Required Data"
: This means that you must refer to the description of the
pattern program data and create the data correctly.
: This means that you must refer to the description of the
pattern program data and set "Disable" for the pertinent func-
tions.

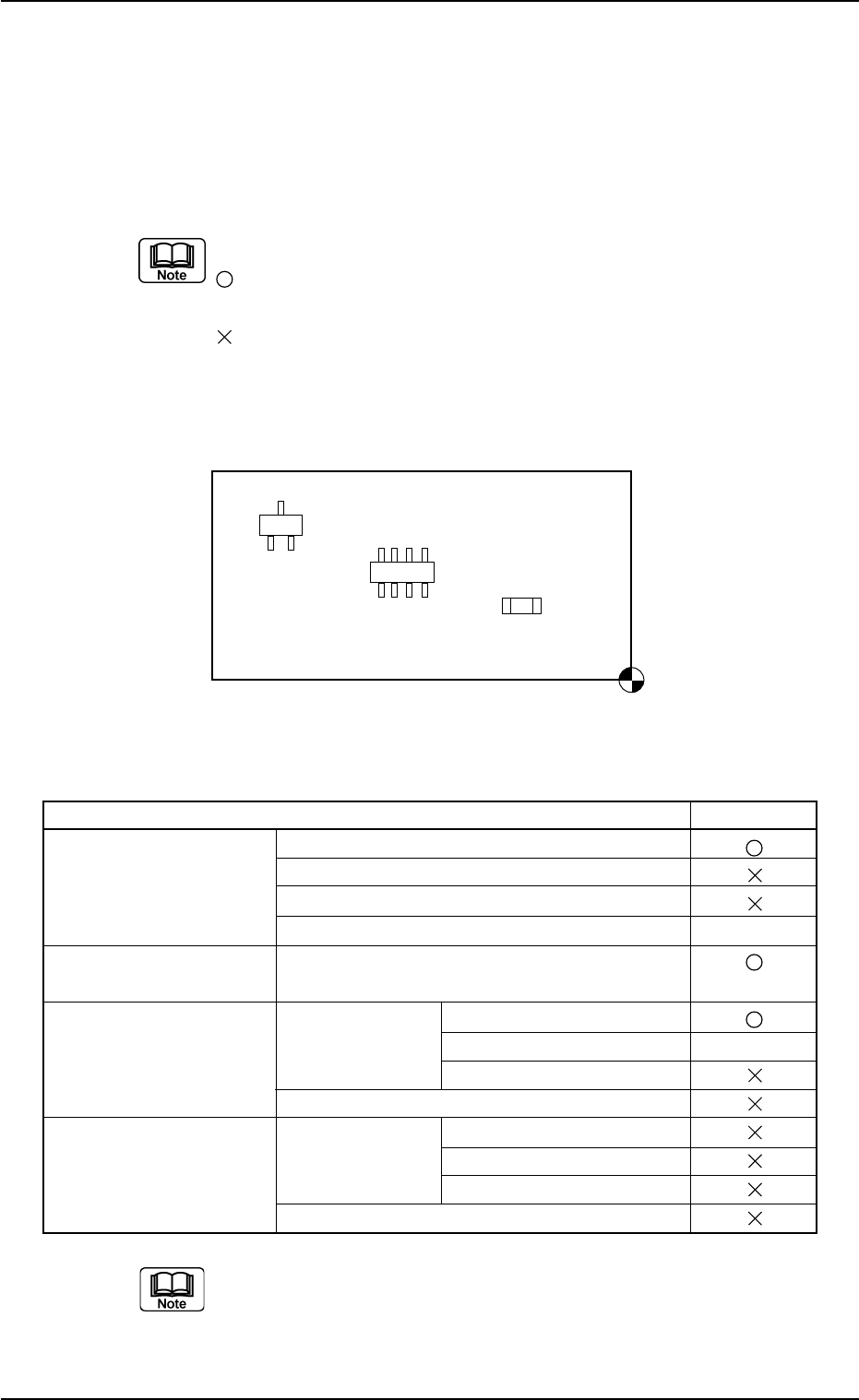

(1) Single Pattern
Fig. 3B2
List of Required Data Table 3B9
Pattern Program
Required Data
Operation Data P.C.B. Data
P.C.B. Recognition Data
P.C.B. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
Placement Coordinate Reference Point
0110-003 2 - 7 AFO01EDTP
2. Pattern Program
(2) Single Pattern (P.E.C. Recognition Function Enabled)
Fig. 3B3
List of Required Data Table 3B10
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
P.E.C. Recognition Mark
P.E.C. Recognition Mark
Placement Coordinate
Reference Point
2.1 Types of P.C.B.’s and Required Data
0301-004 2 - 8 AFO01EDTP
