(B01_03) C Set control commands in the text boxes. CAUTION If a control command other than the following ones is used, the step becomes invalid. - (hyphen) : This command handles the steps as those for the placement feed…
2.4 Placement Feeder Location Data
(B01) Feeder Carriage #1, #2, #3, and #4
Each parameter must be set for the feeder carriages to be used.

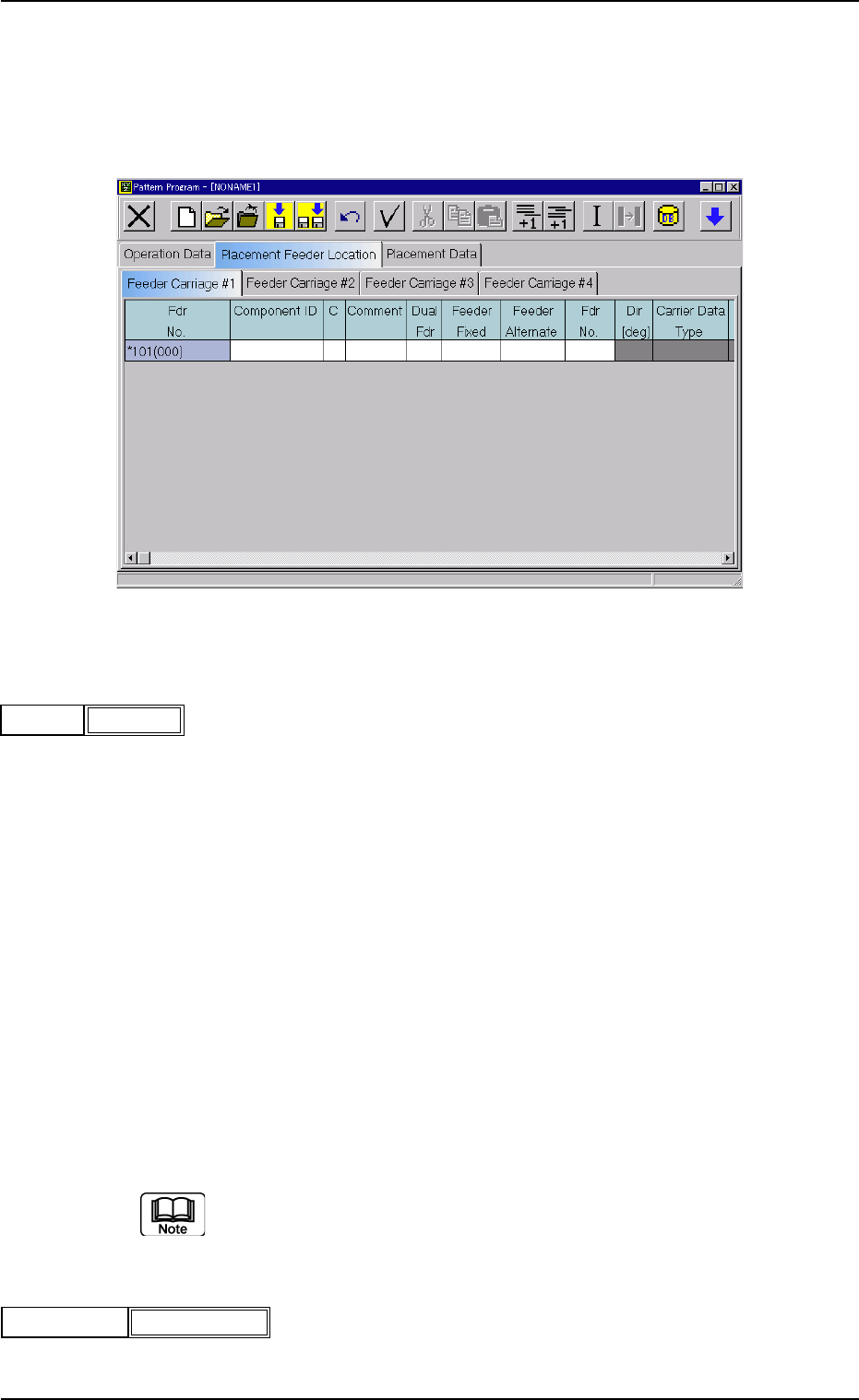

Fig. 3B77 Edit Window (Example)
(B01_01) Fdr No.
Shown are the feeder Nos. in the placement feeder location data.
The numbers in ( ) indicate the feeder Nos. that will actually be loaded
with components.
Data Input Range
TCM-X100 TCM-X200
Feeder Carriage #1: 101 to 179
Feeder Carriage #2: 201 to 279
Feeder Carriage #3: 301 to 379
Feeder Carriage #4: 401 to 479
TCM-X300
Feeder Carriage #1: 101 to 170
Feeder Carriage #2: 201 to 270
Feeder Carriage #3: 301 to 370
Feeder Carriage #4: 401 to 470
The numbers in ( ) indicate the feeder Nos. where the feeder No. offset in
the operation data is added.
(B01_02) Component ID
Set component IDs in the text boxes.
2.4 Placement Feeder Location Data
0301-005 2-42 AFO01EDTP
101(101)Fdr No.
Fig. 3B78
C1005T05B0---
Component ID
Fig. 3B79
(B01_03) C
Set control commands in the text boxes.
CAUTION
If a control command other than the following ones is
used, the step becomes invalid.
- (hyphen) : This command handles the steps as those for the
placement feeder location data.
E:This command shows the end of the placement feeder
location data.
The step where "E" is set is valid.
S:This command invalidates the steps specified as place-
ment feeder location data.
X:This command invalidates the steps specified as place-
ment feeder location data and shows the end of the
data.
(B01_04) Comment
A comment can be entered for each feeder No. (Fdr No.).
Up to 32 characters (alphanumerics and marks) can be used.
(a) The performance of the machine is not affected by these comments.
In other words, it has nothing to do with or without these comments.
(b) It is recommended to set helpful information on components related
to the feeder Nos. (Fdr Nos.).
(B01_05) Dual Fdr
Select one of the following options as the data for the dual tape feeder.
-:The dual tape feeder is not used.
A: Components are picked up from Side A of the dual tape feeder.
B: Components are picked up from Side B of the dual tape feeder.
(B01_06) Feeder Fixed
Select "Enable" or "Disable" to determine whether or not the feeder
positions should be fixed in place.
When "Enable" is selected, the feeder No. (Fdr No.) and the compo-
nent ID are not affected by any insert and delete operations of a com-
ponent.
Disable : The feeder position is not fixed.
Enable : The feeder position is fixed.
2.4 Placement Feeder Location Data
0207-004 2-43 AFO01EDTP
Comment
Fig. 3B81
-
C
Fig. 3B80
Feeder Fixed
Fig. 3B82
Disable
Dual Fdr
Fig. 3B81-1
-
(B01_07) Feeder Alternate
Select "Enable" or "Disable" to determine whether or not the feeder
alternate function should be used.
Disable : The feeder alternate function is not used.
Enable : The feeder alternate function is used.
(B01_08) Fdr No.
When "Enable" is selected for the feeder alternate function, set the
destination feeder No. (Fdr No.) of the feeder that will work in place of
the feeder where a component shortage error has occurred.
2.4 Placement Feeder Location Data
0210-005 2-44 AFO01EDTP
Feeder Alternate
Fig. 3B83
Disable
000 (000)Fdr No.
Fig. 3B84
