3.2.7 "Lighting" Tab
Displayed are the parameters related to the lighting systems.
• Sheet Layout
When the "Lighting" tab is pressed in the "Device Offset" tab sheet, the
following tab sheet appears.

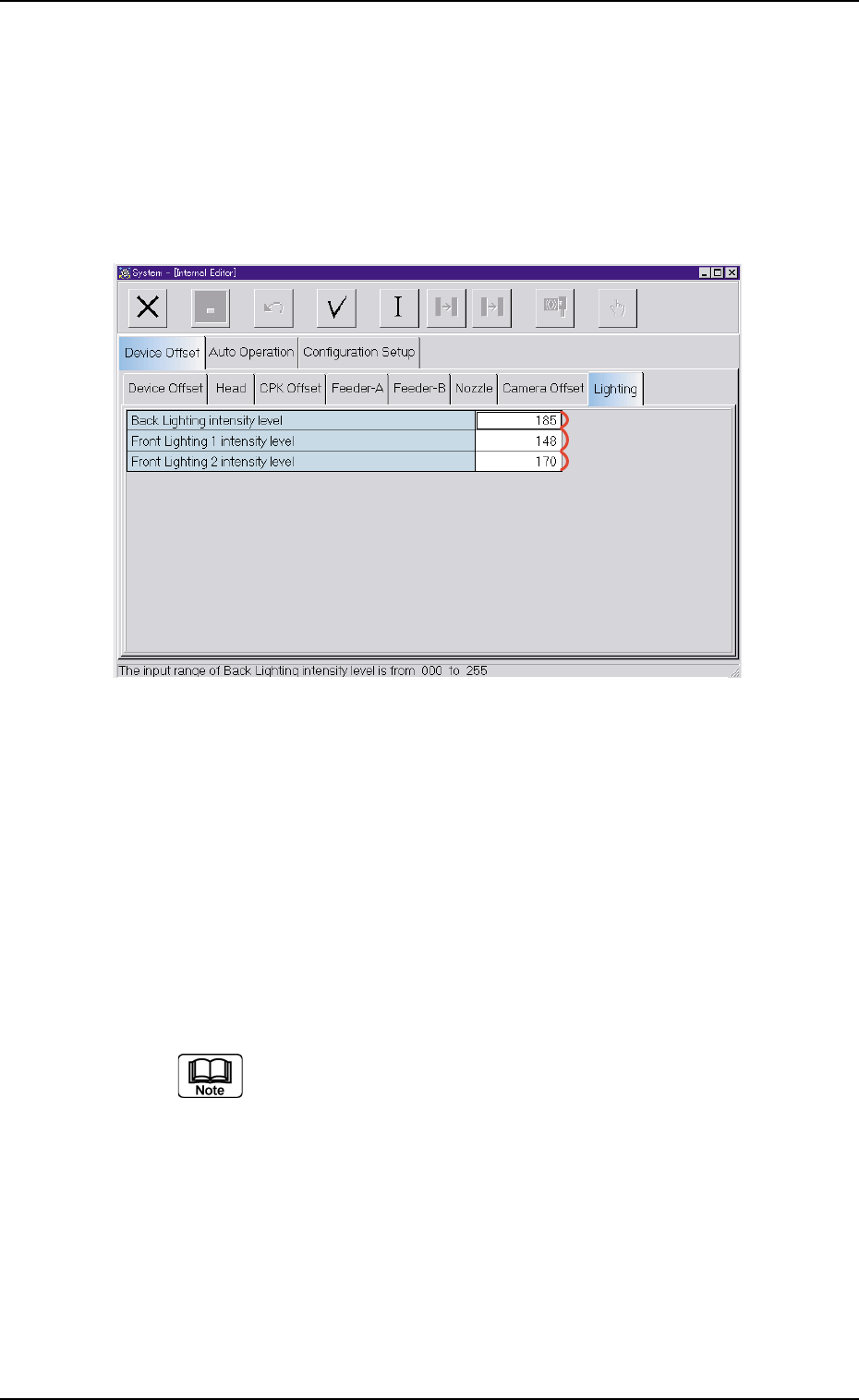

Fig. 3E37 "Lighting" Tab Sheet
• Sheet Composition
*1 Back Lighting intensity level
Set the brightness (intensity level) of the back lighting system.
*2 Front Lighting 1 intensity level
Set the brightness (intensity level) of "Front Lighting 1".
*3 Front Lighting 2 intensity level
Set the brightness (intensity level) of "Front Lighting 2".
(a) The bigger the value is, the more the intensity level
(brightness) increases.
(b) The data input range is "0 to 255".
0307-006 5-42
AFO01EDTP
*1
*2
*3
3.2 "Device Offset" Tab
3.3 "Auto Operation" Tab
3.3.1 "Auto Operation Setup" Tab
• Sheet Layout
When the "Auto Operation Setup" tab is pressed in the "Auto Operation"
tab sheet, the following tab sheet appears.

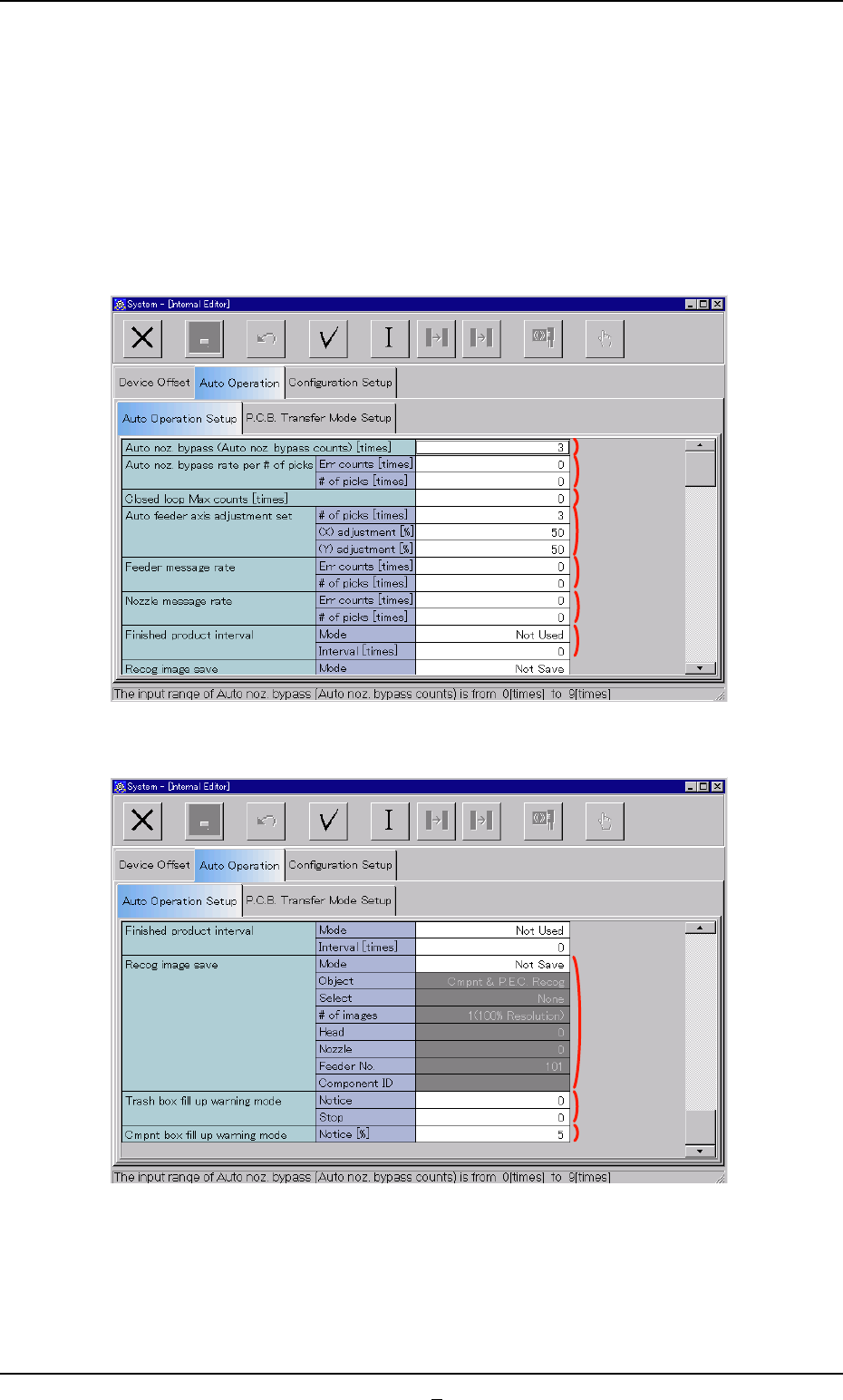

Fig. 3E38-1 "Auto Operation" Tab Sheet (1)
Fig. 3E38-2 "Auto Operation" Tab Sheet (2)
0307-006 5-43 AFO01EDTP
3.3 "Auto Operation" Tab
*1
*2
*3
*4
*5
*6
*7
*9
*8
*10
• Sheet Composition
*1 Auto nozzle bypass (Auto Nozzle bypass counts) [times]
The specified number of pickup errors is used to automatically by-
pass the nozzle (to avoid using the nozzle for component picks)
where pickup error have occurred continuously during automatic
operation.
When pickup errors have occurred continuously the specified num-
ber of times, the nozzle is automatically bypassed and the informa-
tion is displayed as machine information.
(a) The data input range is "0 to 9" (times).
(b) When "0" (zero) is set, the automatic nozzle bypass
function becomes unusable.
*2 Auto nozzle bypass rate per # of picks
Error counts [times], # of picks [times]
The specified parameters are used to automatically bypass the
nozzle whose pickup rate has deteriorated during automatic opera-
tion.
When the number of picks has reached the specified value, the
parameter in the "Bad counts [times]" text box is cleared.
When the number of pickup errors has reached the specified bad
counts before the number of picks reaches the specified number of
picks, the nozzle is automatically bypassed and the information is
displayed as machine information.
(a) The data input range is "0 to 9999" for both "Bad Counts"
and "# of Picks".
(b) When "0" (zero) is set for "# of Picks" and "Bad Counts"
or the parameter in the "Bad counts [times]" text box is
larger than the parameter in the "# of picks [times]"
text box, the automatic nozzle bypass function does
not work.
3.3 "Auto Operation" Tab
