4. "Pattern Program Management Data" Window This window enables the operator to check the management data of the models that correspond to each individual pattern programs. • Window Layout When the [Open] butto…
0210-004 4-28 AFO01EDTP
*F: pick-up diff
The corresponding "Count" text box shows the number of "Pick-
Up Difference Errors" detected through recognition operation.
*G: comp. reverse
The corresponding "Count" text box shows the number of "Re-
versed Component Errors" detected through recognition opera-
tion.
*D: component recognition
The corresponding "Count" text box shows the number of com-
ponents judged "NG" (No Good) through recognition operation.
*E: component thickness
The corresponding "Count" text box shows the number of errors
in component thickness detected by the linear measure detec-
tion sensor.
(2) Component chuck
[((*total comp.-(*A + *B + *C + *F + *G))/*Total comp.) X100](%):
Value (%) determined by the following formula
(# of Picks - (Counts in *A + Counts in *B + Counts in *C + Counts
in *F + Counts in *G))/# of Picks x 100
(3) Component placement
[((*total comp.-(*A + *B + *C + *D + *E + *F + *G))/*Total comp.
X100](%): Value (%) determined by the following formula
(# of Picks - (Counts in *A + Counts in *B + Counts in *C + Counts
in *D + Counts in *E + Counts in *F + Counts in *G))/# of Picks x
100
About Data Counting (Counting of "*A: component miss-
ing [sensor]" and "*B: component missing [recognition]"
(a) When the tape end detection function is used, a compo-
nent shortage alarm is issued after the tape end is de-
tected continuously 3 times.
When "Missing Component" is detected and a component
shortage error occurs after the alarm is issued, the last
chuck action is not added to the number of picks and the
number of chuck errors.
(b) When the tape end detection function is not used, the ma-
chine stops in an error condition according to the number
of times (the number of continuous component missing
errors to be counted to stop the machine in an error condi-
tion) set in the "1" text box of "Error process" in the "Con-
trol Data" tab sheet of a "Component Library" window. In
this case, the number of missing component errors is not
added to the number of picks and the number of chuck
errors.
3.7 "Handling/Placement Data" Tab
4. "Pattern Program Management Data" Window
This window enables the operator to check the management data of the
models that correspond to each individual pattern programs.
• Window Layout
When the [Open] button is pressed after the desired model (program
name) is selected in the "Patt. Prgm Manage. Dt." tab sheet ("Man-
agement Data" window), the "Pattern Program Management Data"
window for the selected model opens.

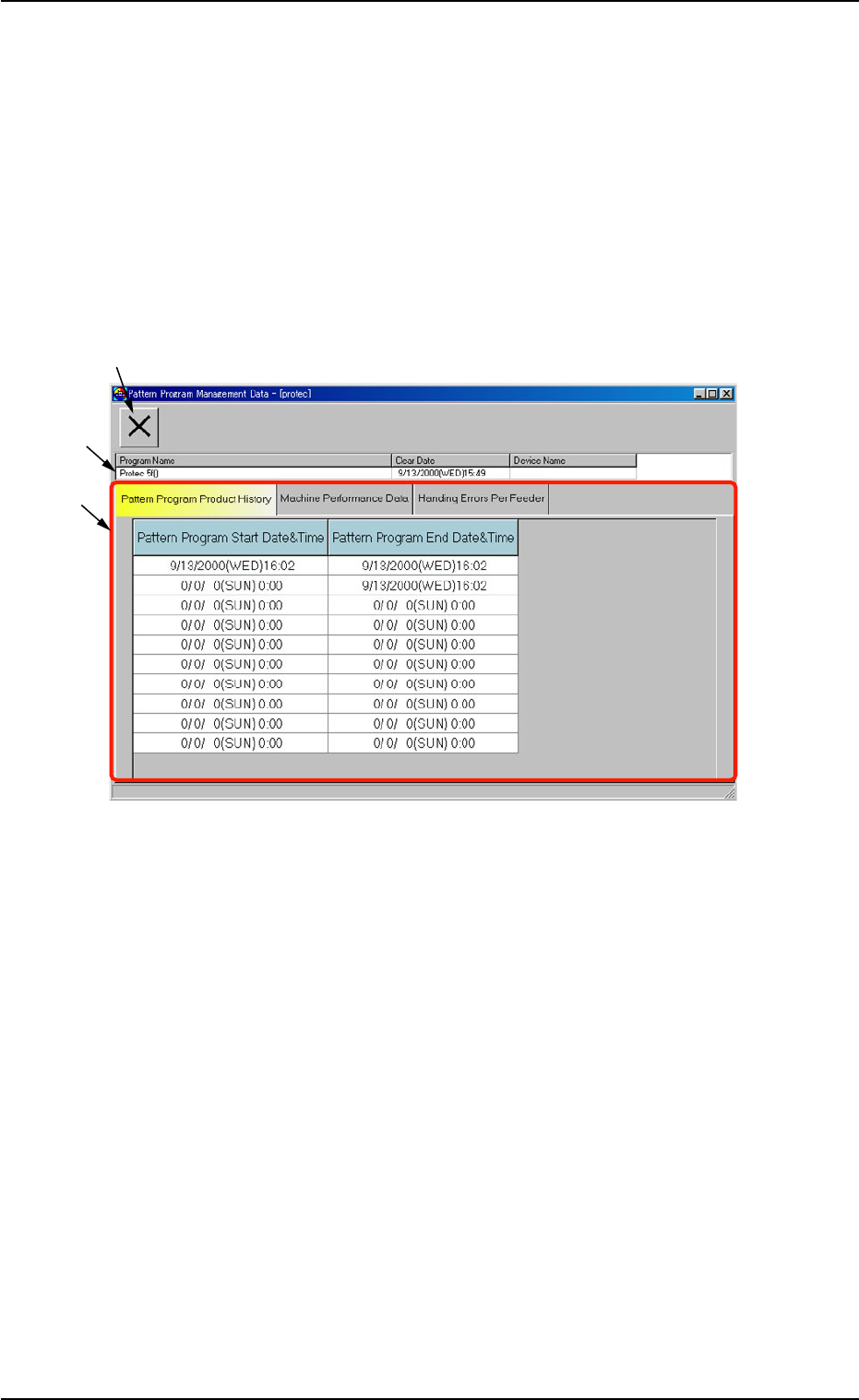

Fig. 3D15 "Pattern Program Management Data" Window
• Window Composition
*1 Toolbar
The following icons are arranged.
[Close] Icon
When this is pressed, the "Pattern Program Management Data"
window closes.
*2 Program Name
Displayed are the pattern program name (comment), the clear date,
and the machine name related to the pattern program management
data.
*3 Tabs and Tab Sheets
The "Pattern Program Management Data" window is provided with
the following three tab sheets. When a tab is pressed, the corre-
sponding tab sheet appears inside the window.
4. "Pattern Program Management Data" Window
01 10-003 4-29 AFO01EDTP
*1
*2
*3
Table 3D6
Tabs Description
Pattern Program The corresponding tab sheet enables the operator to check the
Product History pattern program start and end date & time records (logs).
Machine Performance Listed is the machine performance data such as “P.C.B. counter”,
Data “Product P.C.B.”, “Passed P.C.B.”, “Product P.C.B. (B.B.R.)”, “Total
components”, “Total handling errors”, “Rate of handling errors (%)”,
“Power on time”, “Maintenance time”, “Test mode time”, and “Total
handling errors/Total components”.
Handling Errors Per This tab sheet is provided with the four tabs - “Feeder Location Crg.
Feeder #1”, “Feeder Location Crg. #2”, “Feeder Location Crg. #3”, and
“Feeder Location Crg. #4”. Each tab sheet displays a list of “Total
Components”, “Number of Errors (classified by error types)”, “Total
Errors”, “Rate of Error (%)”, and “Shortage of Components”, “Com-
ponent ID.”, “Type”, and “Width (mm)” for each feeder slot No. (ac-
tual feeder).
4. "Pattern Program Management Data" Window
0301-004 4-30 AFO01EDTP
