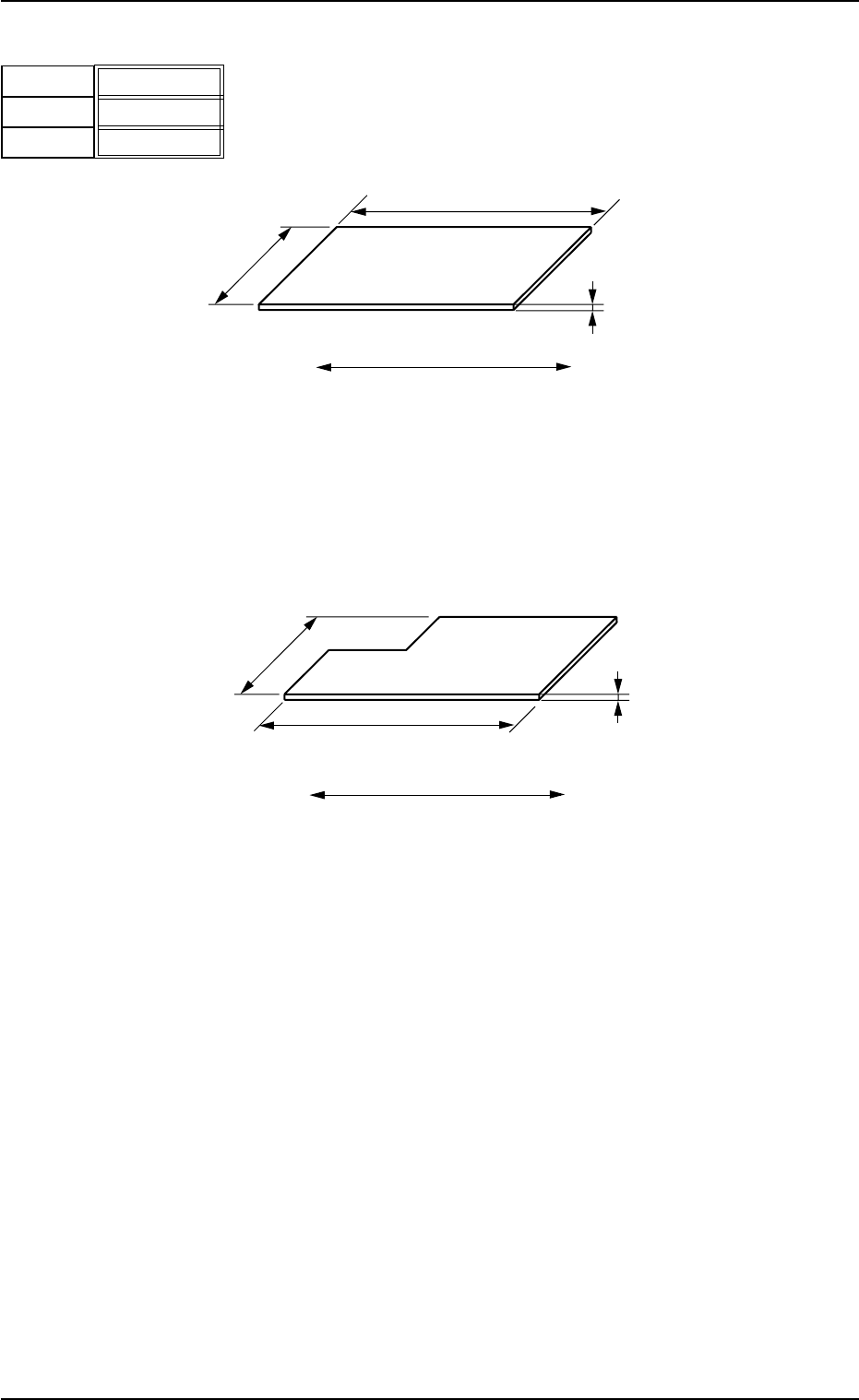

(A01_02) P.C.B. size
X [mm], Y [mm], and T [mm]
Set the dimensions of the P.C.B. to be produced.
Unit: mm
Fig. 3B10
When the P.C.B. has a cutout, the following dimensions must
be entered.
Note: TCM-X100 cannot position a P.C.B. that has a cutout
like one in the figure below.
Fig. 3B11
Data Input Range
TCM-X100
X: 50 to 330 Y: 50 to 250 T: 0.5 to 5.0
TCM-X200
X: 50 to 460 Y: 50 to 381 T: 0.5 to 5.0
TCM-X300
• P.C.B. Origin Position : [to R460 mm]
X: 50 to 460 Y: 50 to 460 T: 0.5 to 5.0
• P.C.B. Origin Position : [to R510 mm]
X: 50 to 510 Y: 50 to 460 T: 0.5 to 5.0
• P.C.B. Origin Position : [to R560 mm]
X: 50 to 560 Y: 50 to 460 T: 0.5 to 5.0
• P.C.B. Origin Position : [to R610 mm]
X: 50 to 610 Y: 50 to 460 T: 0.5 to 5.0
2.3 Operation Data
0307-006 2-14 AFO01EDTP
P.C.B.
P.C.B. Flow Direction
Y (Vertical)
X (Horizontal)
T (Thickness)
Y (Vertical)
X (Horizontal)
T (Thickness)
P.C.B.
P.C.B. Flow Direction
330.000
250.000
1.600
X [mm]
Y [mm]
T [mm]
Fig. 3B9

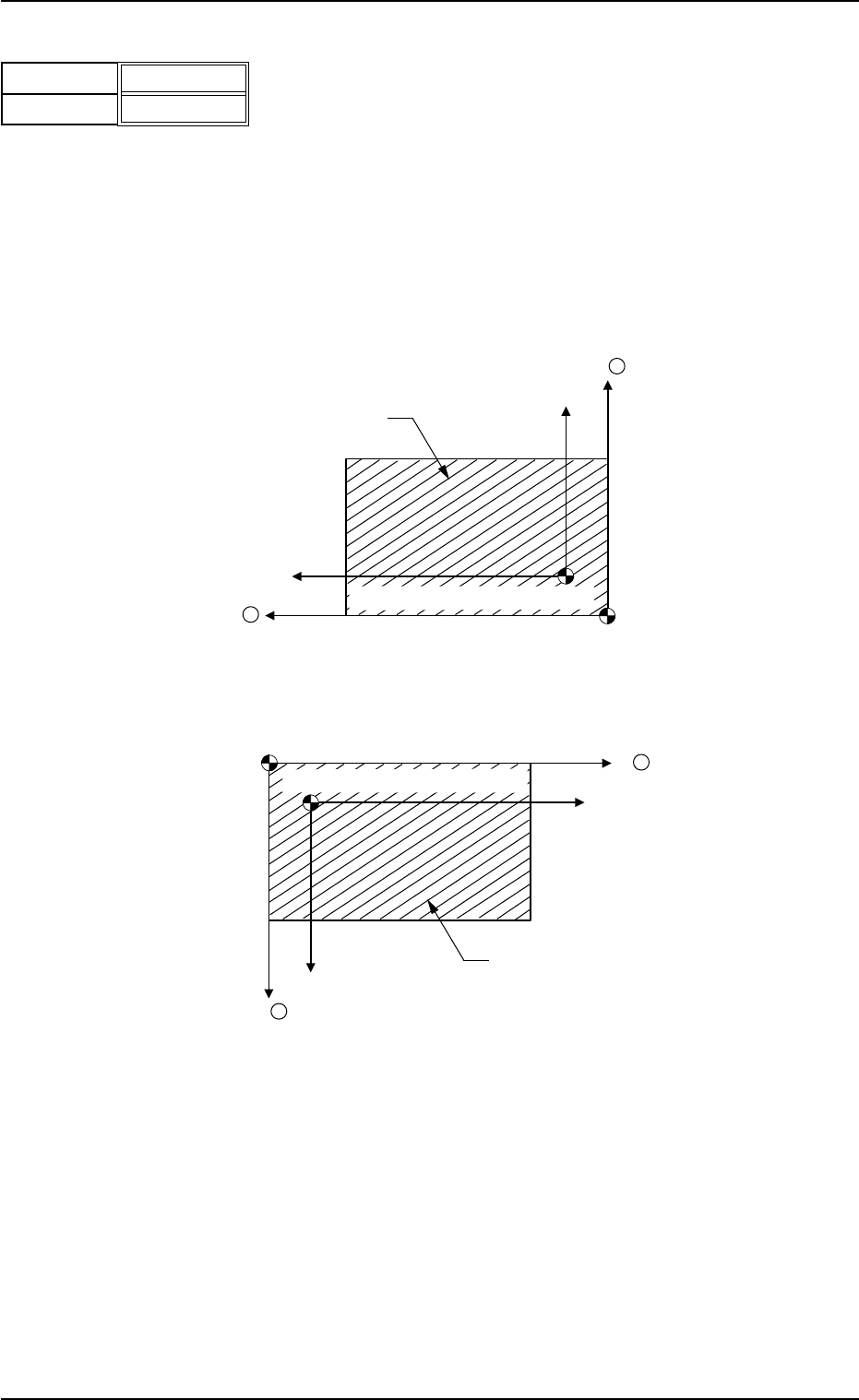

(A01_03) P.C.B. origin offset
X [mm] and Y [mm]
Set the offset values to correct the difference between the placement
coordinate reference point (N
0
) and the P.C.B. origin (P
0
).
Unit: mm
"Plus" or "Minus" can be set in both X and Y coordinates in the direc-
tion of the correction.
Fig. 3B13 Example of "+" (Plus) Direction for Correction
P.C.B. Origin(P
0
)
X +
Y +
P.C.B.
Placement Coordinate Reference (N
0
)
P.C.B. Origin (P
0
)
X +
Y +
P.C.B.
Placement Coordinate Reference (N
0
)
TCM-X100
TCM-X200 TCM-X300
X [mm]
Y [mm]
+00.000
+00.000
Fig. 3B12
2.3 Operation Data
0301-005 2-15 AFO01EDTP
Z=Theta [deg]
Set the offset value for component placement angle.
The set value is added to the "Z=theta" of all components in the place-
ment data (P data).
To correct the angle of component placement counterclockwise, a
parameter must be entered with a "+" (plus) sign. Put a "-" (minus)
sign to correct it clockwise.
Unit: °(degree)
Fig. 3B15
Z=Theta [deg]
Fig. 3B14
+0.00
0°
+.°
-.°
0301-005 2-16 AFO01EDTP
2.3 Operation Data
