(A03) P.E.C. Recognition Mark Data

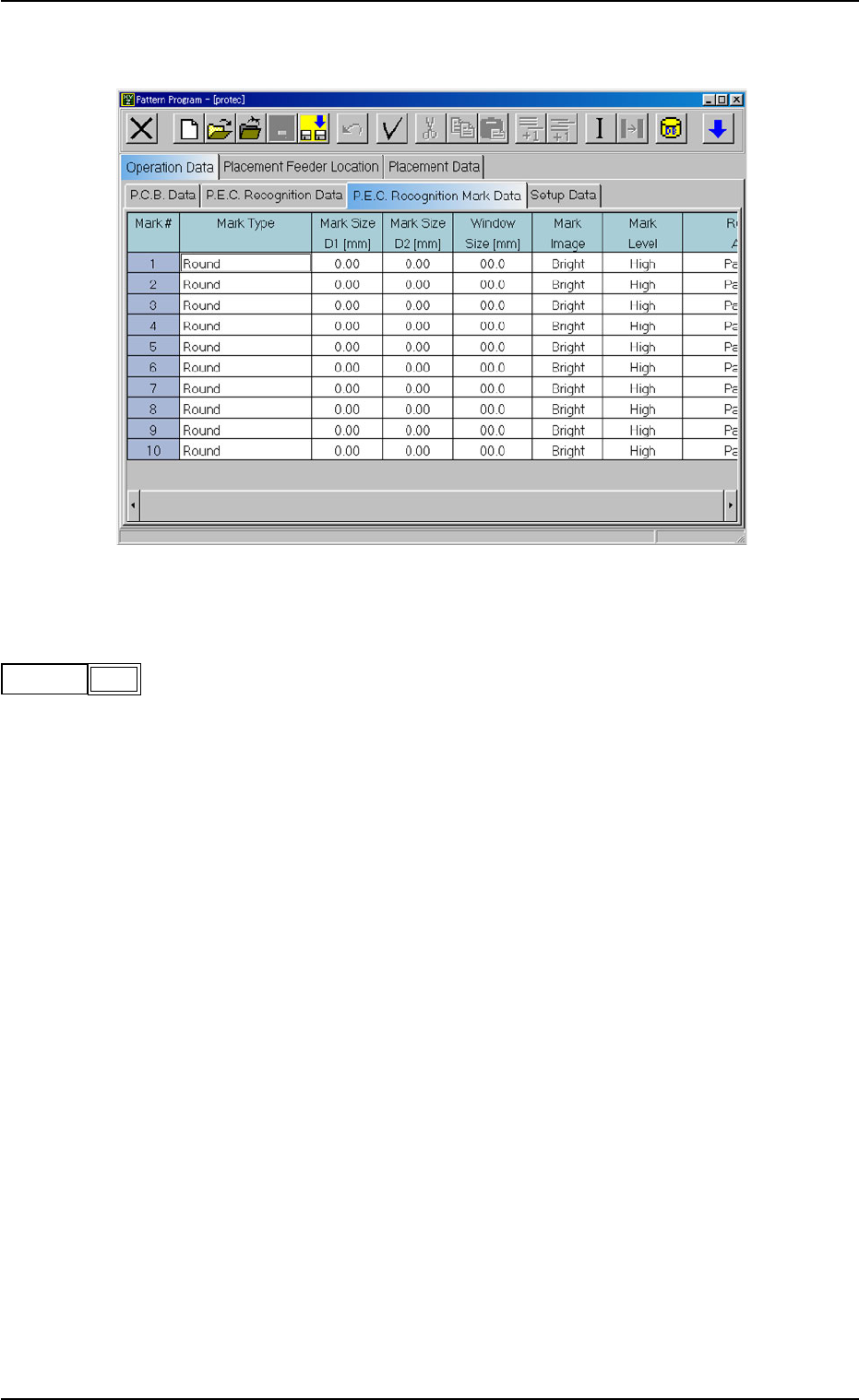

Fig. 3B57 Edit Window (Example)

(A03_01) Mark #

The mark Nos. correspond to the mark codes and the specified pa-

rameters of each fiducial mark used in the P.E.C. recognition function.

10 types of mark codes can be registered for each pattern program.

0210-004 2-34

AFO01EDTP

2.3 Operation Data

mark #

Fig. 3B58

(A03_02) Mark Type

The following options can be selected as shapes of fiducial marks.

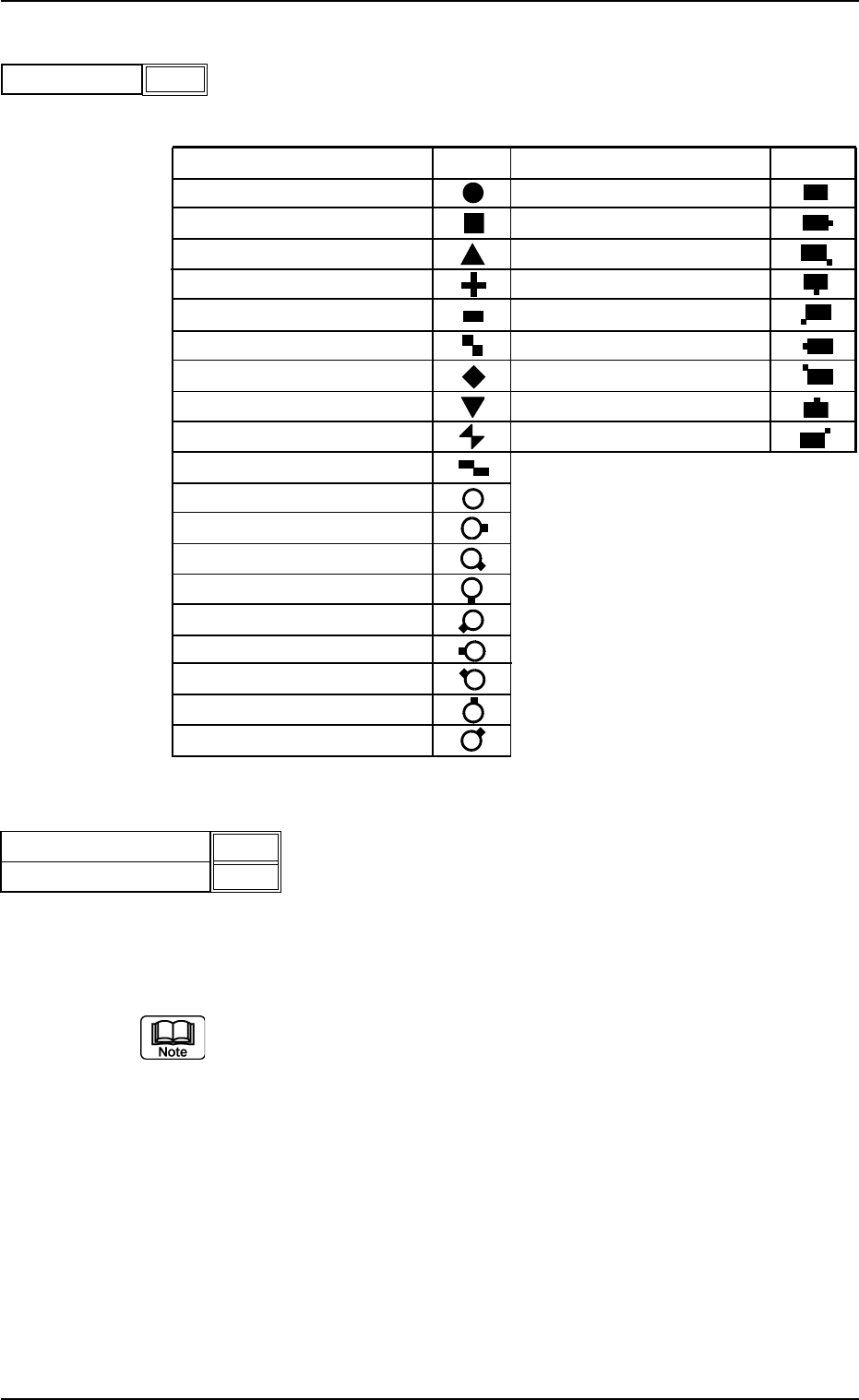

Table 3B15

Mark Type Shape Mark Type Shape

Round Pad Mark/No Land

Square Pad Mark/Land (E)

Equilateral Triangle (Up) Pad Mark/Land (SE)

Cross Pad Mark/Land (S)

Rectangle Pad Mark/Land (SW)

Checker (Square) Pad Mark/Land (W)

Diamond Pad Mark/Land(NW)

Equilateral Triangle (Down) Pad Mark/Land (N)

Bow Tie Pad Mark/Land (NE)

Checker (Rectangle)

Thru Hole/No Land

Thru Hole/Land (E)

Thru Hole/Land (SE)

Thru Hole/Land (S)

Thru Hole/Land (SW)

Thru Hole/Land (W)

Thru Hole/Land (NW)

Thru Hole/Land (N)

Thru Hole/Land (NE)

(A03_03) Mark Size D1 [mm], and Mark Size D2 [mm]

Set the dimensions of fiducial marks.

Unit: mm

Refer to "(A03_08) Fiducial Marks" for details.

2.3 Operation Data

0210-004 2-35 AFO01EDTP

Round

Mark Type

Fig. 3B59

Fig. 3B60

2.00

0.00

Mark Size D1 [mm]

Mark Size D2 [mm]

(A03_04) Window Size [mm]

Set the recognition area (complete square) for the P.E.C. recognition

function.

Unit: mm

Data Input Range

1.0 × 1.0 to 5.0 × 5.0

Set preferably small values to avoid false recognition and shorten rec-

ognition time.

Fig. 3B62

(A03_05) Mark Image

Select one of the following options as an image of the mark pattern to

be captured by the camera.

Select either mode according to the difference in contrast between a

mark pattern and its surroundings to get a clear fiducial images.

Bright : Bright Fiducial/Dark Background

Dark : Dark Fiducial/Bright Background

Wrong mode selection causes malfunction of the recognition.

(A03_06) Mark Level

Set the threshold levels of the fiducial marks.

High : Both identity and similarity between the shape of a fiducial

mark and the real image are detected on a high level.

Middle: Either identity or similarity between the shape of a fiducial

mark and the real image are detected on a middle level.

Low : Both identity and similarity between the shape of a fiducial

mark and the real image are detected on a low level.

(a) Identity

Identity between the shapes of the specified mark and the real im-

age (including the size)

(b) Similarity

Similarity between the shapes of the specified mark and the real


Window Size

Fiducial Mark

2.3 Operation Data

0301-005 2-36 AFO01EDTP
