3 . 5 "Carrier Data" T ab The corresponding tab sheet appears when "Cylindrical", "Square", "De- form (Simple)", "IC (Simple)", "IC (Complex)", "Connector …

100%1 / 321

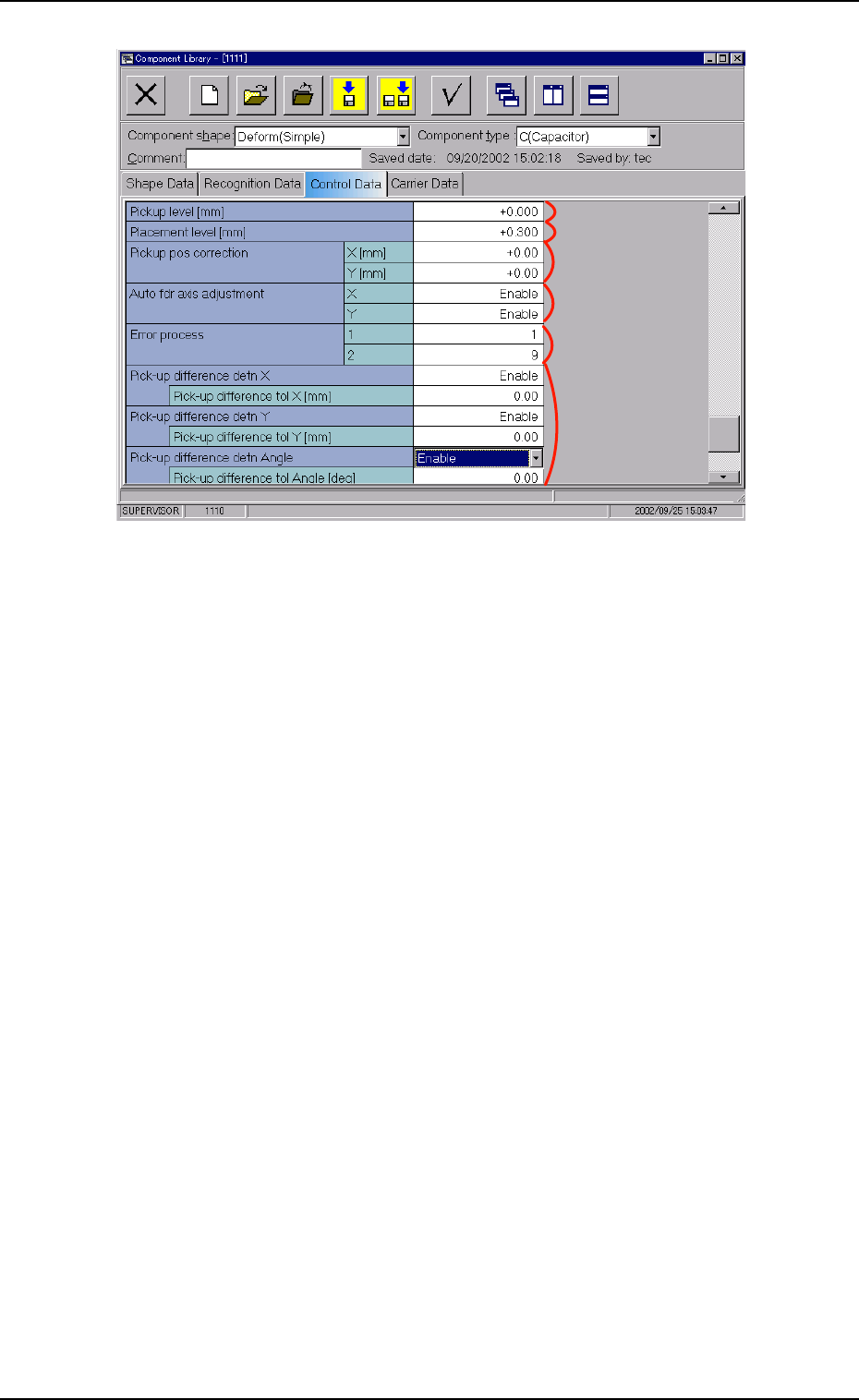

Fig. 3C18 "Control Data" Tab Sheet ("Cylindrical" Selected)
*6 Pickup level [mm], *7 Placement level [mm],
*8 Pickup pos correction, *9 Auto fdr axis adjustment,
*10 Error process, *11 Pick-up difference detn X, Y, Angle
0210-005 3-32
AFO01EDTP
*9
*8
*10
*11
*7
*6
3.4 "Control Data" Tab
3.5 "Carrier Data" Tab
The corresponding tab sheet appears when "Cylindrical", "Square", "De-
form (Simple)", "IC (Simple)", "IC (Complex)", "Connector (Simple)",
"Connector (Complex)", "Other Leaded (Simple)", or "Other Leaded
(Complex)", is selected in the "Component shape" text box.
• Sheet Layout
When the "Carrier Data" tab is pressed, the "Carrier Data" tab sheet
appears.

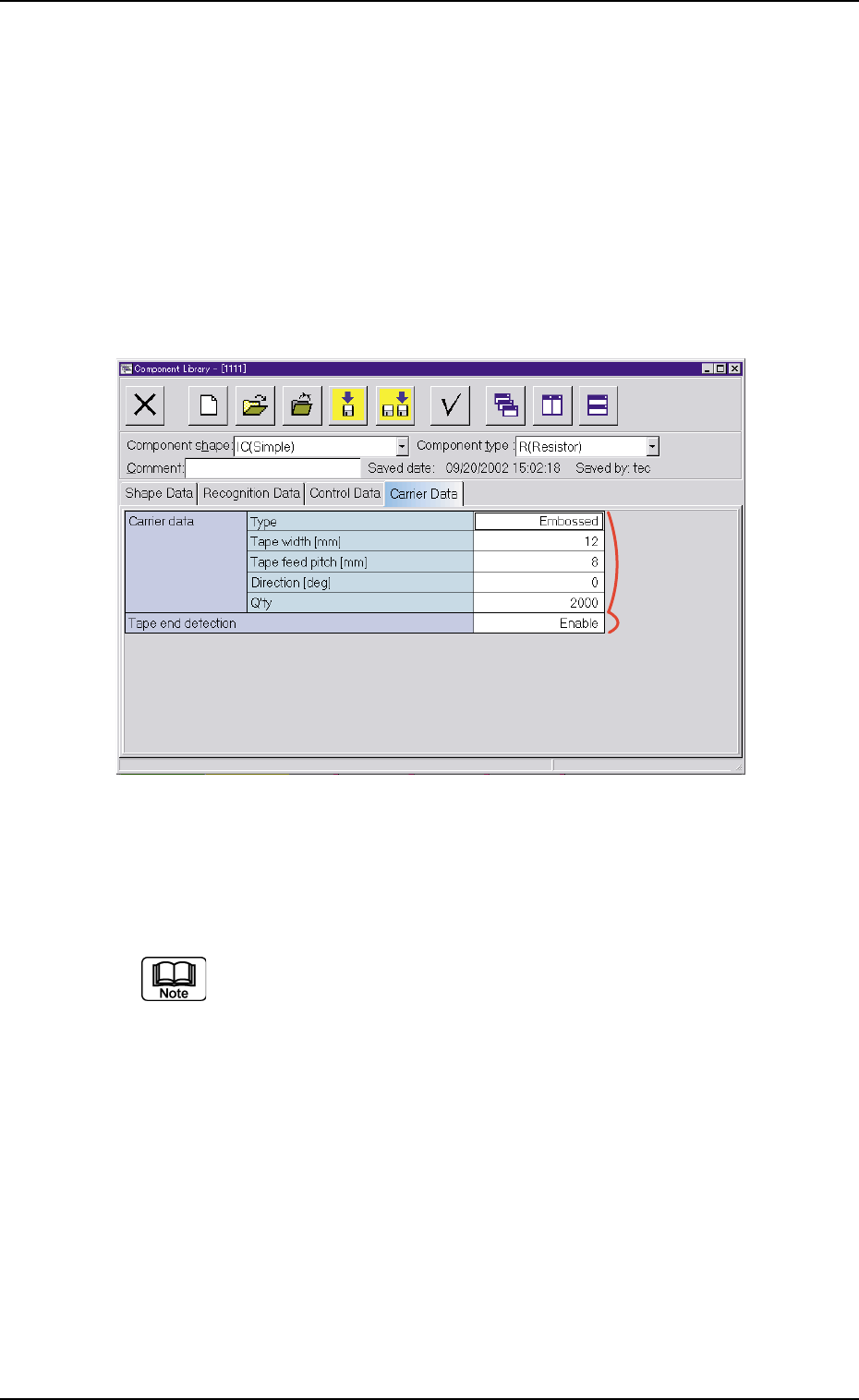

Fig. 3C19 "Carrier Data" Tab Sheet ("Cylindrical" Selected)
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Carrier Data, *2 Tape end detection
*1
*2
3.5 "Carrier Data" Tab
0210-005 3-33 AFO01EDTP
4. Saving an active file of the component ID
The following describes how to save a newly created file (component
ID) or the edited parameters of the component ID.
• Operation Procedure
(1) Press the [
] or the [ ] icon on the toolbar.
[
] : Save
When pressed, this button saves the edited compo-
nent ID (file), replacing the original component ID (file)
with the current one.
[
] : Save As
When pressed, this button saves a newly created file
(data of a new component ID) or the edited file with
another name (component ID).
(2) When the [Save As] icon is pressed, the following window opens.

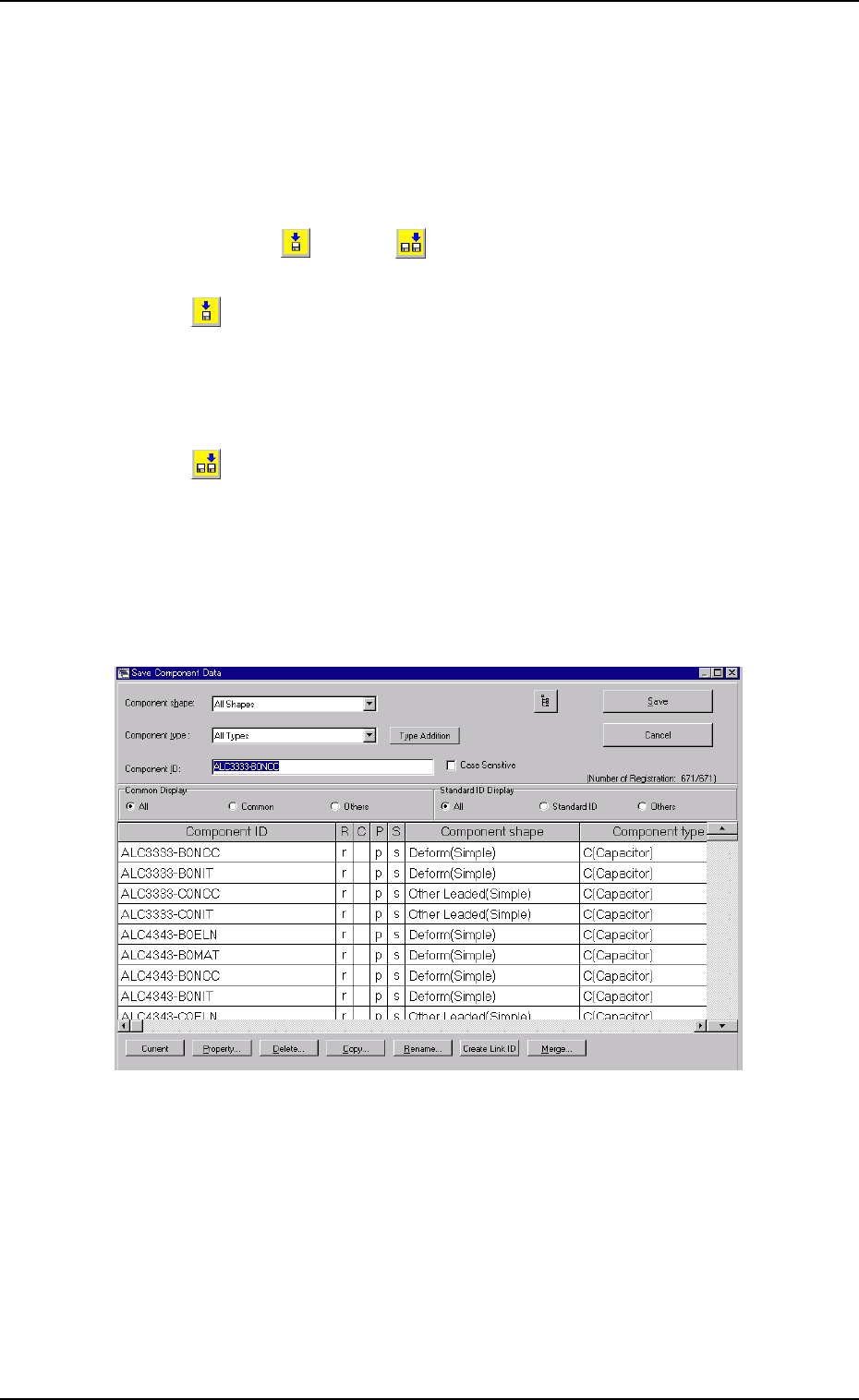

Fig. 3C20 "Save Component Data" Window
(3) Enter the pre-determined component ID as a file name in the "Com-
ponent ID" text box and press the [Open] button.
The data in the active edit window is saved as a file with the entered
component ID name.
0301-005 3-34 AFO01EDTP
4. Saving an active file of the component ID
