2.1.2 "Nozzle Data" Window The following describes how to open the "Nozzle Data" window . • Window Layout (1) Press the [SYSTEM] button on the main menu bar . The "SYS SEL" menu opens. Fig. …
: When pressed, this icon fills all the selected text boxes
with the parameter in the first text box.
: When pressed, this icon fills all the selected text boxes
with the parameter in the last text box.
: When pressed, this changes the colors of the tower light
and the buzzer sounds to the standard ones.
: When pressed, this displays a list of component IDs, mak-
ing it possible to select a component ID.
0301-004 5 - 5
AFO01EDTP
2.1 Display of Each Window
2.1.2 "Nozzle Data" Window
The following describes how to open the "Nozzle Data" window.
• Window Layout

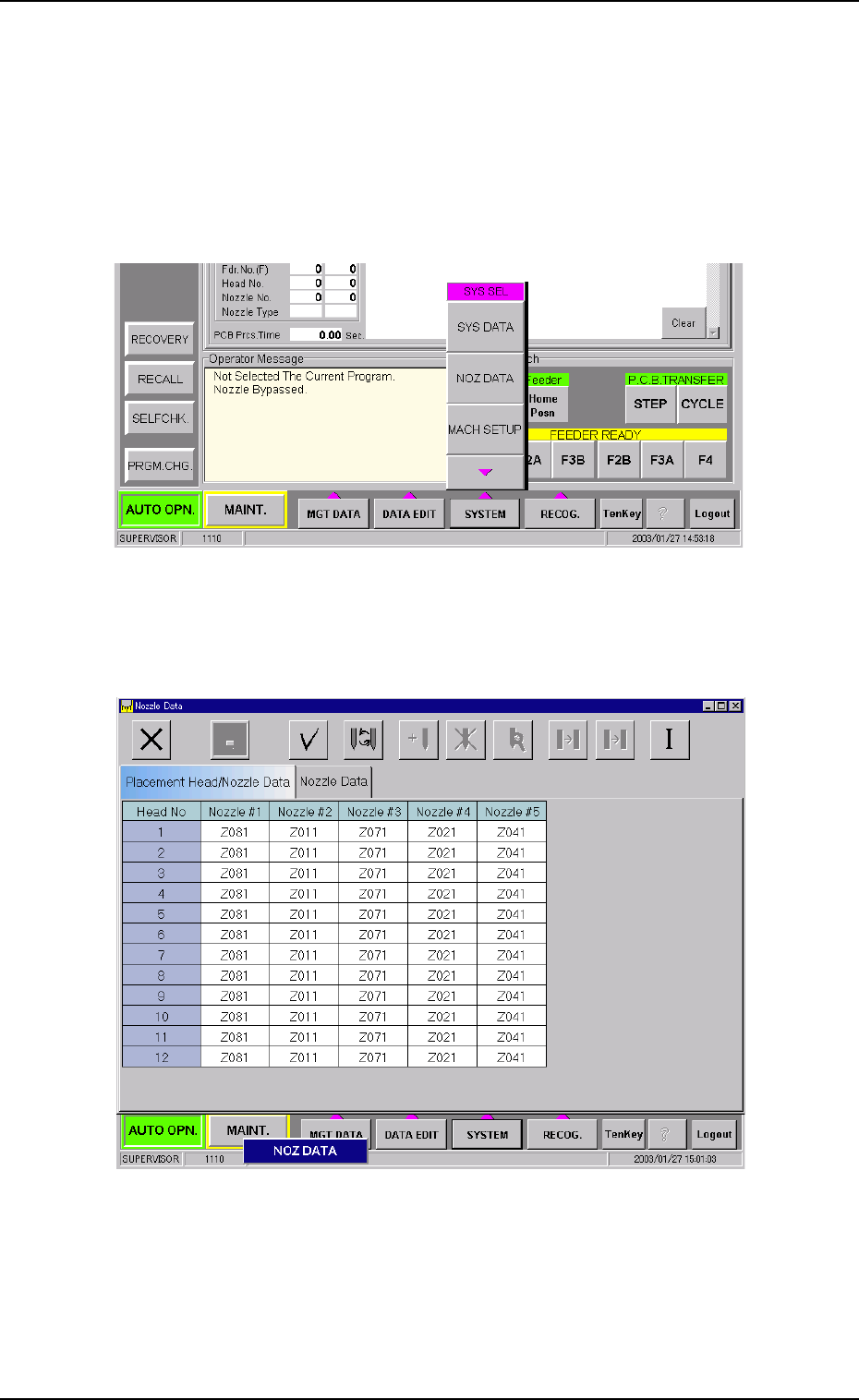

(1) Press the [SYSTEM] button on the main menu bar. The "SYS SEL"
menu opens.
Fig. 3E5
(2) Press the [NOZ DATA] button.
The "Nozzle Data" window opens.
Fig. 3E6 "Nozzle Data" Window
0301-005 5 - 6
AFO01EDTP
2.1 Display of Each Window
• Composition of "Nozzle Data" Window

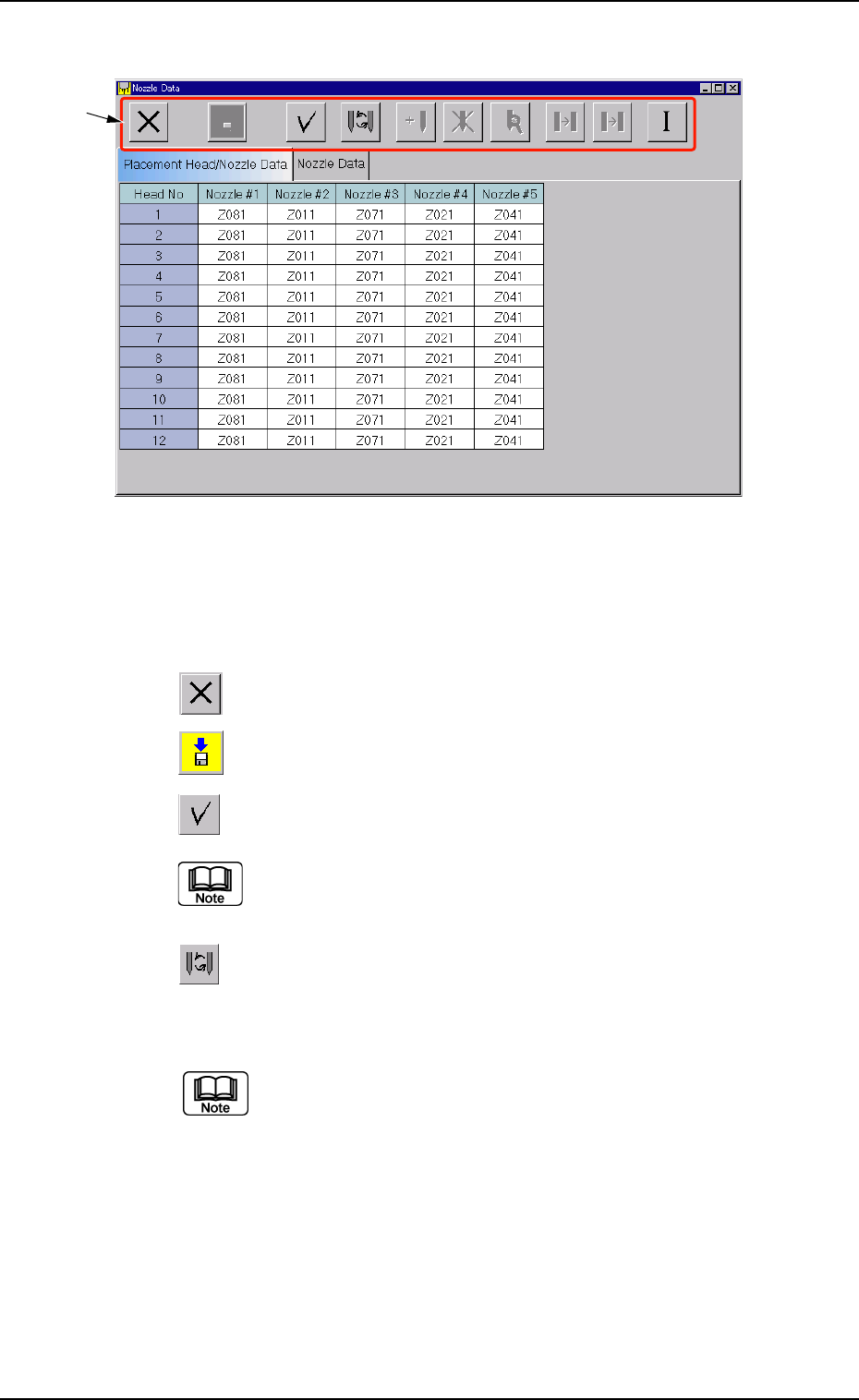

Fig. 3E7 "Nozzle Data" Window
*1 Icons
The following functions can be executed.
: When pressed, this closes the "Nozzle Data" window.
: When pressed, this saves the entered parameters.
: When pressed, this checks the entered parameters.
When an error is found, an error message box opens.
: When pressed, this opens the "Nozzle Type" window.
This window enables you to change the currently selected
nozzle type to another one.
(a) Double-clicking a text box also opens the "Nozzle
Type" window.
(b) Clicking a "Nozzle #" label (title) selects the nozzle
Nos. on all heads at a time.
0210-004 5 - 7
AFO01EDTP
*1
2.1 Display of Each Window
