(1) "Camera Offset" T ab • Sheet Layout When the "Camera Offset" tab is pressed in the "Camera Offset" tab sheet, the following tab sheet appears. Fig. 3E35 "Camera Offset" T ab Sh…
3.2.6 "Camera Offset" Tab
The "Camera Offset" tab sheet is composed of the "Camera Offset",
"Individual Nozzle Camera #1 Gain/Level", and "Individual Nozzle Cam-
era #2 Gain/Level" tabs.
• Sheet Layout
When the "Camera Offset" tab is pressed in the "Device Offset" tab
sheet, the following tab sheet appears.
Fig. 3E34 "Camera Offset" Tab Sheet
• Sheet Composition
*1 "Camera Offset" Tab
When selected, the "Camera Offset" tab sheet appears.
*2 "Individual Nozzle Camera #1 Gain/Level" Tab
When selected, the "Individual Nozzle Camera #1 Gain/Level" tab
sheet appears.
*3 "Individual Nozzle Camera #2 Gain/Level" Tab
When selected, the "Individual Nozzle Camera #2 Gain/Level" tab
sheet appears.
0301-005 5-35
AFO01EDTP
*1 *2
*3
3.2 "Device Offset" Tab
(1) "Camera Offset" Tab
• Sheet Layout
When the "Camera Offset" tab is pressed in the "Camera Offset" tab
sheet, the following tab sheet appears.
Fig. 3E35 "Camera Offset" Tab Sheet (1)
Fig. 3E35-1 "Camera Offset" Tab Sheet (2)
0307-006 5-36 AFO01EDTP
*1
*2
*3
*4
3.2 "Device Offset" Tab
*5
*6
*7
• Sheet Composition
*1 Camera1-Camera2
X [mm], Y [mm]
This is the offset data (X and Y directions) used to correct positional
relation between the centers of Camera #1 (Component Recogni-
tion Camera (High Magnification)) and Camera #2 (Component Rec-
ognition Camera (Low Magnification)).
Shifted coordinates (deviation converted into Camera #1
scanned coordinate axis) between the center coordinates
of Camera #2 and Camera #1 are set using Camera #1
scanning coordinate system.
*2 Camera 1
Magnification X [0.01
µµ
µµ
µm/pixel], Y [0.01
µµ
µµ
µm/pixel]
These parameters are used to set magnification of Camera #1 (Com-
ponent Recognition Camera (High Magnification)) in increments of
0.01 mm per pixel.
Parameters must be entered for both X and Y directions.

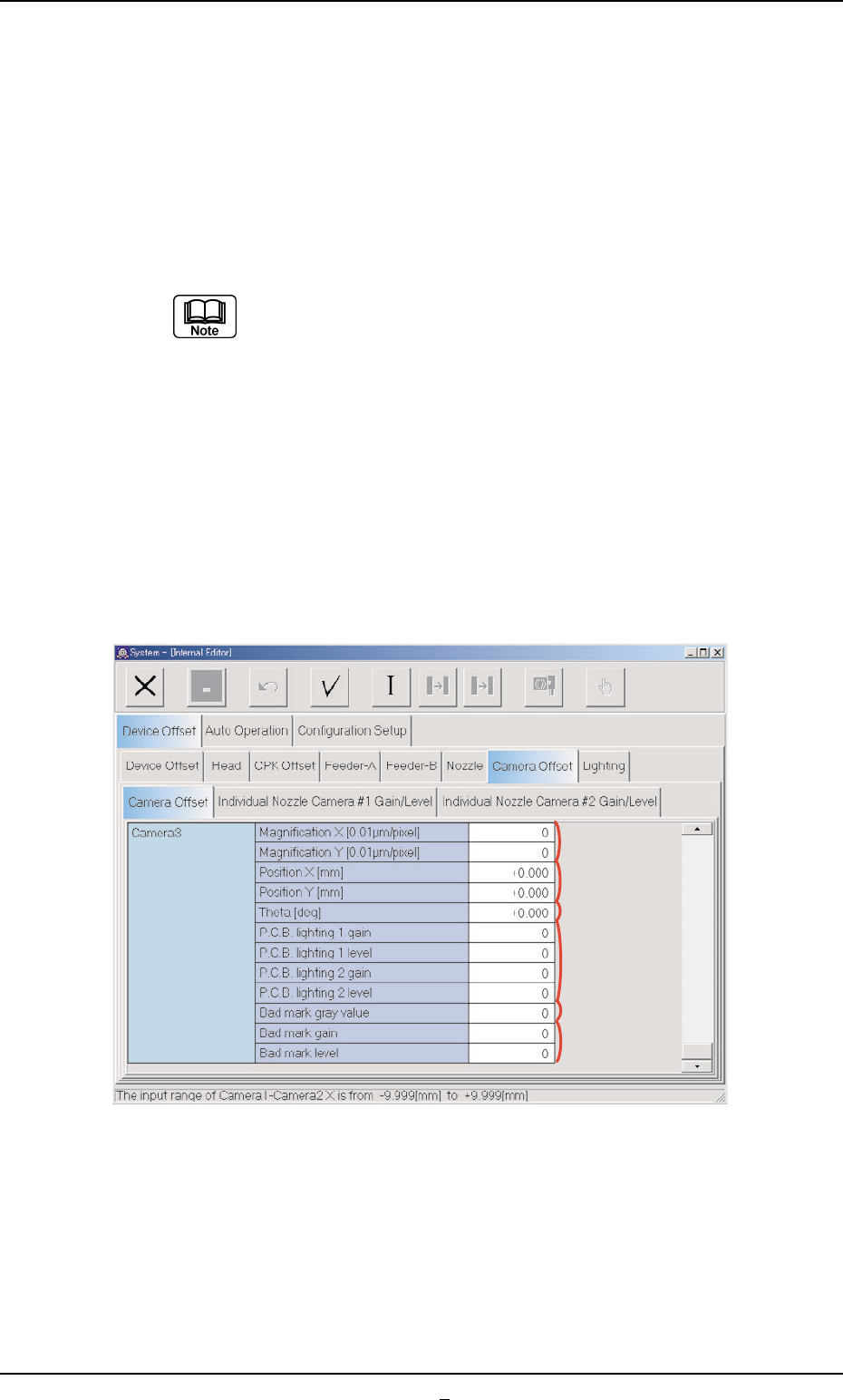

Fig. 3E35-2 "Camera Offset" Tab Sheet (3)
3.2 "Device Offset" Tab
*8
*9
*10
*11
*12
*13
0307-002 5-36-1 AFO01EDTP
