4 . 1 "Pattern Program Product History" T ab The corresponding tab sheet enables the operator to check the pattern program start and end date & time records (logs). • Sheet Layout When the "Pattern Pro…
Table 3D6
Tabs Description
Pattern Program The corresponding tab sheet enables the operator to check the
Product History pattern program start and end date & time records (logs).
Machine Performance Listed is the machine performance data such as “P.C.B. counter”,
Data “Product P.C.B.”, “Passed P.C.B.”, “Product P.C.B. (B.B.R.)”, “Total
components”, “Total handling errors”, “Rate of handling errors (%)”,
“Power on time”, “Maintenance time”, “Test mode time”, and “Total
handling errors/Total components”.
Handling Errors Per This tab sheet is provided with the four tabs - “Feeder Location Crg.
Feeder #1”, “Feeder Location Crg. #2”, “Feeder Location Crg. #3”, and
“Feeder Location Crg. #4”. Each tab sheet displays a list of “Total
Components”, “Number of Errors (classified by error types)”, “Total
Errors”, “Rate of Error (%)”, and “Shortage of Components”, “Com-
ponent ID.”, “Type”, and “Width (mm)” for each feeder slot No. (ac-
tual feeder).
4. "Pattern Program Management Data" Window
0301-004 4-30 AFO01EDTP
4.1 "Pattern Program Product History" Tab
The corresponding tab sheet enables the operator to check the pattern
program start and end date & time records (logs).
• Sheet Layout
When the "Pattern Program Product History" tab is pressed in the
"Pattern Program Management Data" window, the following tab sheet
appears inside the window.

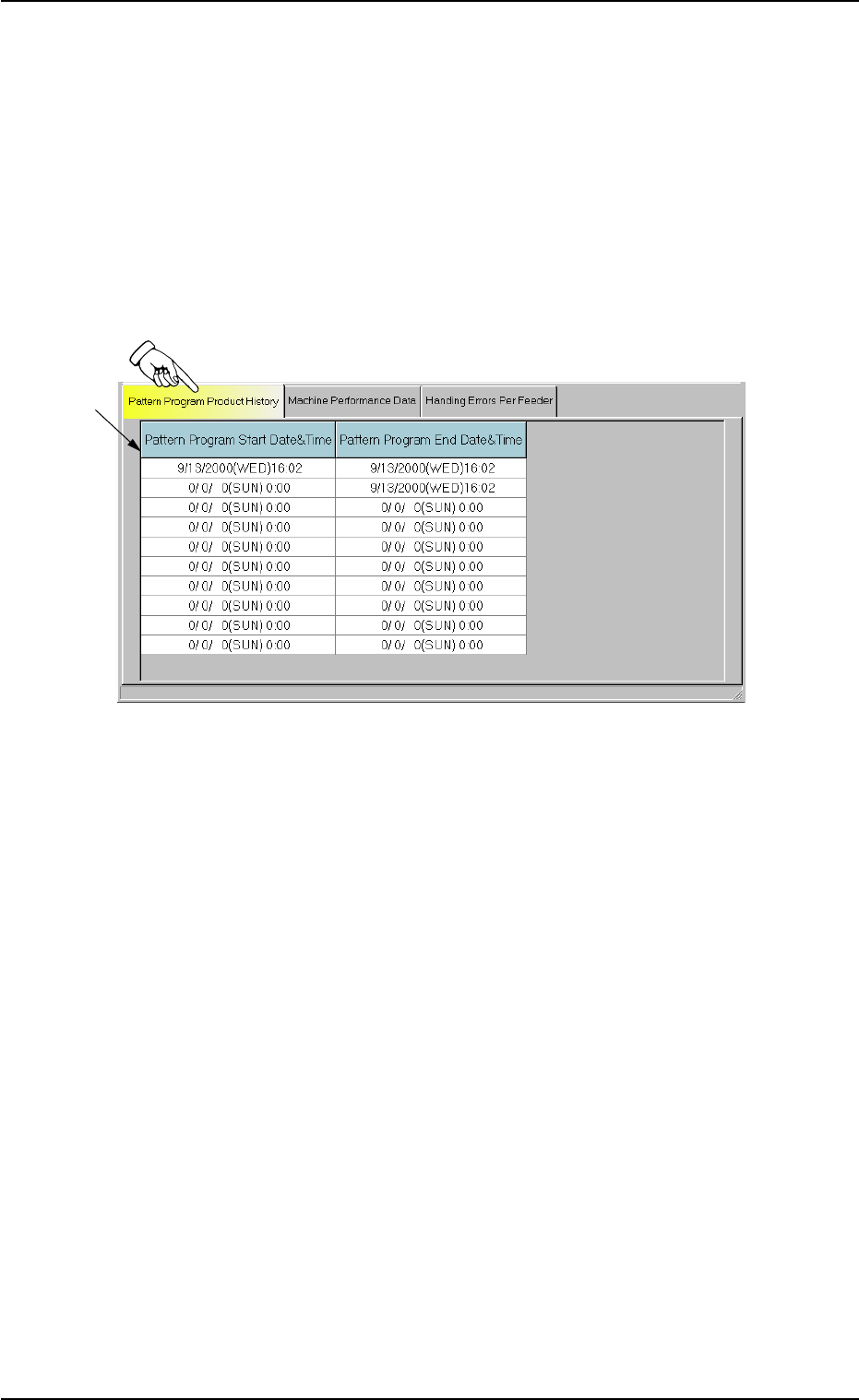

Fig. 3D16 "Pattern Program Product History" Tab Sheet
• Sheet Composition
*1 List of Pattern Program Logs
Up to 10 records (logs that show the number of times specified as
current pattern program) are displayed for each individual pattern
programs.
The start and end date & time records (logs) are also displayed for
the selected pattern program.
When there are more than 10 logs, the older ones are deleted one
by one.
01 10-003 4-31
AFO01EDTP
*1
4.1 "Pattern Program Product History" Tab
4.2 "Machine Performance Data" Tab
The corresponding tab sheet enables the operator to view the perfor-
mance data of the production model.
• Sheet Layout
When the "Machine Performance Data" tab is pressed in the "Pat-
tern Program Management Data" window, the following tab sheet
appears inside the window.

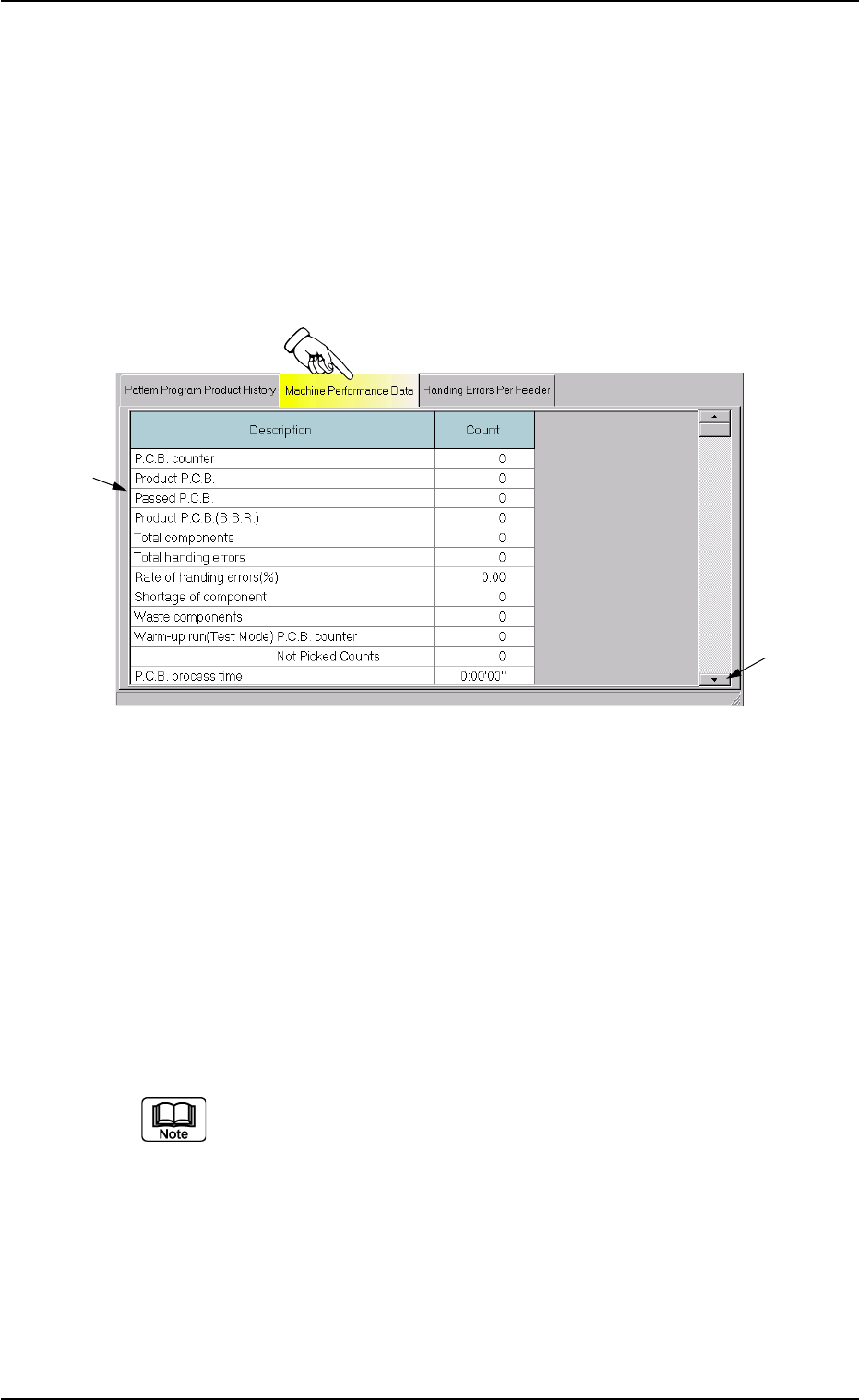

Fig. 3D17 "Machine Performance Data" Tab Sheet
• Sheet Composition
*1 Items
The following items are displayed.
(1) P.C.B. counter
Shown is the number of produced P.C.B.’s.
Counting is implemented when the X/Y table is zeroed after com-
ponent placement operation (when a P.C.B. is finished).
When a particular pattern program is set several times as cur-
rent one, the sum total is computed.
(2) Product P.C.B.
The number of produced unit P.C.B.’s on multi-unit P.C.B. is
summed up. Counting is implemented when the X/Y table is ze-
roed after component placement operation (when a unit is fin-
ished).
When the bad board reject (B.B.R.) function is used, defective
unit P.C.B.’s are excluded.
4.2 "Machine Performance Data" Tab
*2
*1
0301-005 4-32 AFO01EDTP
