(2) Creation of Operation Data
• P.C.B. Data
Follow the same procedure as described in "3.1 Single Pattern".
• P.E.C. Recognition Data
Table 3B26
P.E.C. recognition function Enable
P.E.C. recognition mode global Disable
P.E.C. recognition mode image Enable
P.E.C. recognition mode local Disable
Fiducial mark #1 X location [mm] 0.000 [mm]
Fiducial mark #1 Y location [mm] 0.000 [mm]
Fiducial mark #1 Mark # 1
Fiducial mark #2 X location [mm] 0.000 [mm]
Fiducial mark #2 Y location [mm] 0.000 [mm]
Fiducial mark #2 Mark # 1
Fiducial mark #3 X location [mm]
Fiducial mark #3 Y location [mm]
Fiducial mark #3 Mark #
• P.E.C. Recognition Mark Data
Table 3B27
Mark #
Mark Mark Size Mark Size Window
Mark Image Mark Level Recog Algo
Type D1 [mm] D2 [mm] Size [mm]
1 Round 1.00 0.00 5.0 Bright High Pattern
• Setup Data
Create this data when the automatic setup function should be used.
(3) Creation of Placement Feeder Location Data
Follow the same procedure as described in "3.1 Single Pattern".
0307-006 2-67
AFO01EDTP
3.4 Repetitive Patterns (Unit P.C.B. B.B.R. Enabled)
(4) Placement Data (P-data) U01
• Unit Control
Follow the same procedure as described in "3.1 Single Pattern".
• Unit P.C.B. B.B.R.
Table 3B28
Unit P.C.B. Recog Coord Recog Coord Recog Coord Recog Coord Fiducial Mark Fiducial Mark
B.B.R. X1 [mm] Y1 [mm] X2 [mm] Y2 [mm] FM1 FM2
Enable FX
1
FY
1
FX
2
FY
2
11
• Placement Data (P-data)
Table 3B29
P-No. X [mm] Y [mm] Z
= =
= =
= theta [deg
]]
]]
] H [mm] Fdr. No. V C Comment
1 X
1
Y
1
+000.00 +0.000 101 00 -
2 X
2
Y
2
+090.00 +0.000 103 00 -
3 X
3
Y
3
+180.00 +0.000 105 00 -
4 +000.000 +000.000 +000.00 +0.000 000 00 P
Set "P" or "Q" as a control command in the last line (last step
No.).
(5) Creation of Placement Data (O-data) U01
Table 3B30
O-No. X [mm] Y [mm] Z = theta [deg] C Comment B-X [mm] B-Y [mm]
1 OX
1
OY
1
+000.00 - +000.000 +000.000
2 OX
2
OY
2
+000.00 - +000.000 +000.000
3 OX
3
OY
3
+000.00 - +000.000 +000.000
4 +000.000 +000.000 +000.00 E +000.000 +000.000
0210-005 2-68 AFO01EDTP
3.4 Repetitive Patterns (Unit P.C.B. B.B.R. Enabled)
3.5 Repetitive Patterns (Unit P.C.B. B.B.R. Function
Enabled)
Described below are the typical examples of data creation.
(1) Information on Pattern Program Creation
• P.C.B. Size and Packaged Posture & IDs of Components
Follow the same procedure as described in "3.1 Single Pattern".
• Placement Coordinates and Angles (Z=Theta)

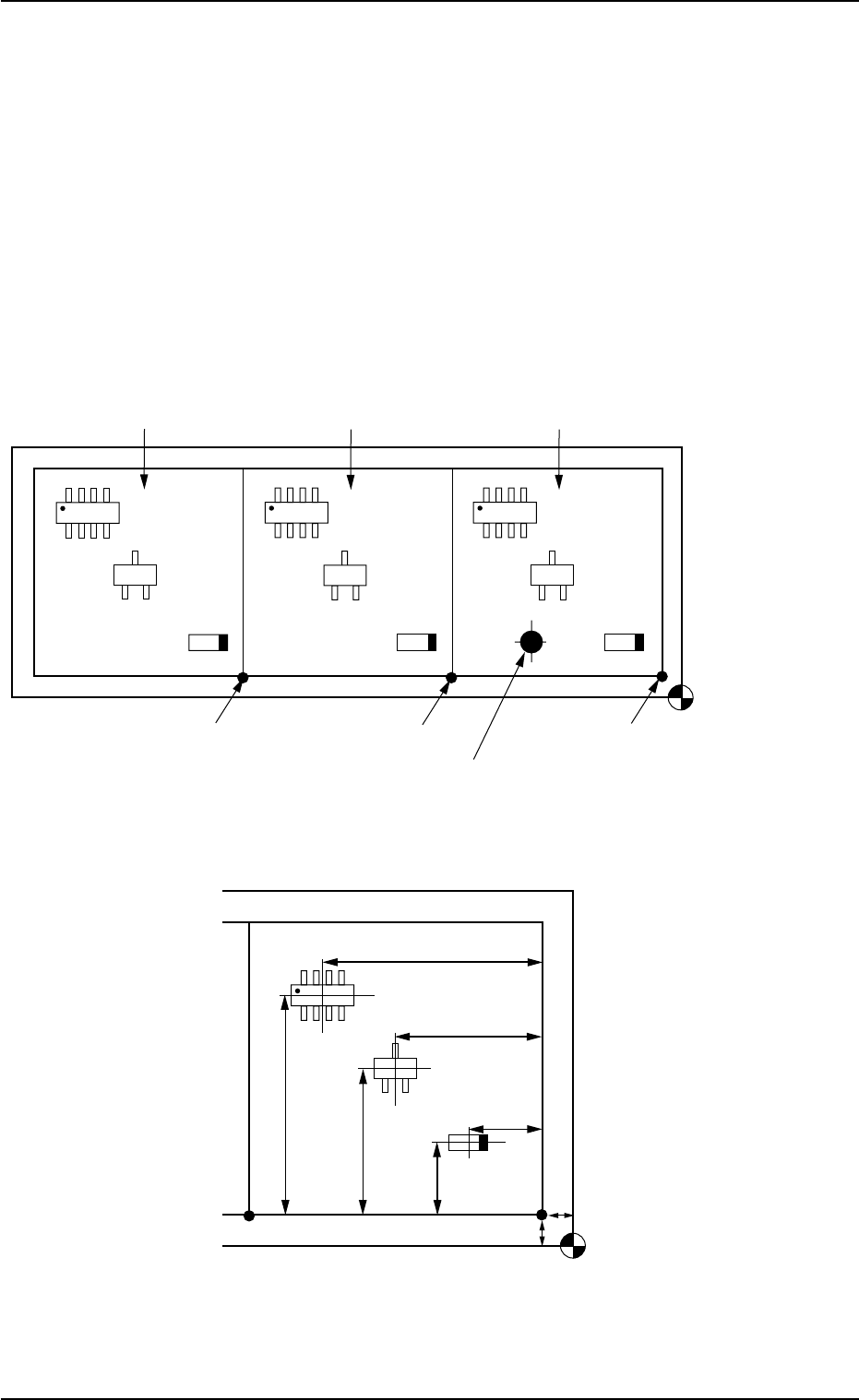

Fig. 3B125 General View
Fig. 3B126 Pattern 1 (Magnified View)
0110-003 2-6 9
AFO01EDTP
Placement Coordinate
Reference Point
(OX
1
, OY
1
)
(OX
2
, OY
2
)
Pattern Origin (OX
3
, OY
3
)
Pattern 1
Location of Bad Mark (BX
1
, BY
1
)
Pattern 2
Pattern 3
Placement Coordinate
Reference Point
X3
Y3
X2
Y2
X1
Y1
OY1
OX1
3.5 Repetitive Patterns (Unit P.C.B. B.B.R. Function Enabled)
