3.2.6 "Camera Offset" T ab The "Camera Offset" tab sheet is composed of the "Camera Offset", "Individual Nozzle Camera #1 Gain/Level", and "Individual Nozzle Cam- era #2 Gain/…
(4) "Nozzle-L" and "Nozzle-H" Tabs
Follow the same procedure for the "Nozzle-H" tab sheet.
• Sheet Layout
When the "Nozzle-L" tab is pressed in the "Nozzle" tab sheet, the fol-
lowing tab sheet appears. When the "Nozzle-H" tab is pressed, almost
the same tab sheet appears.

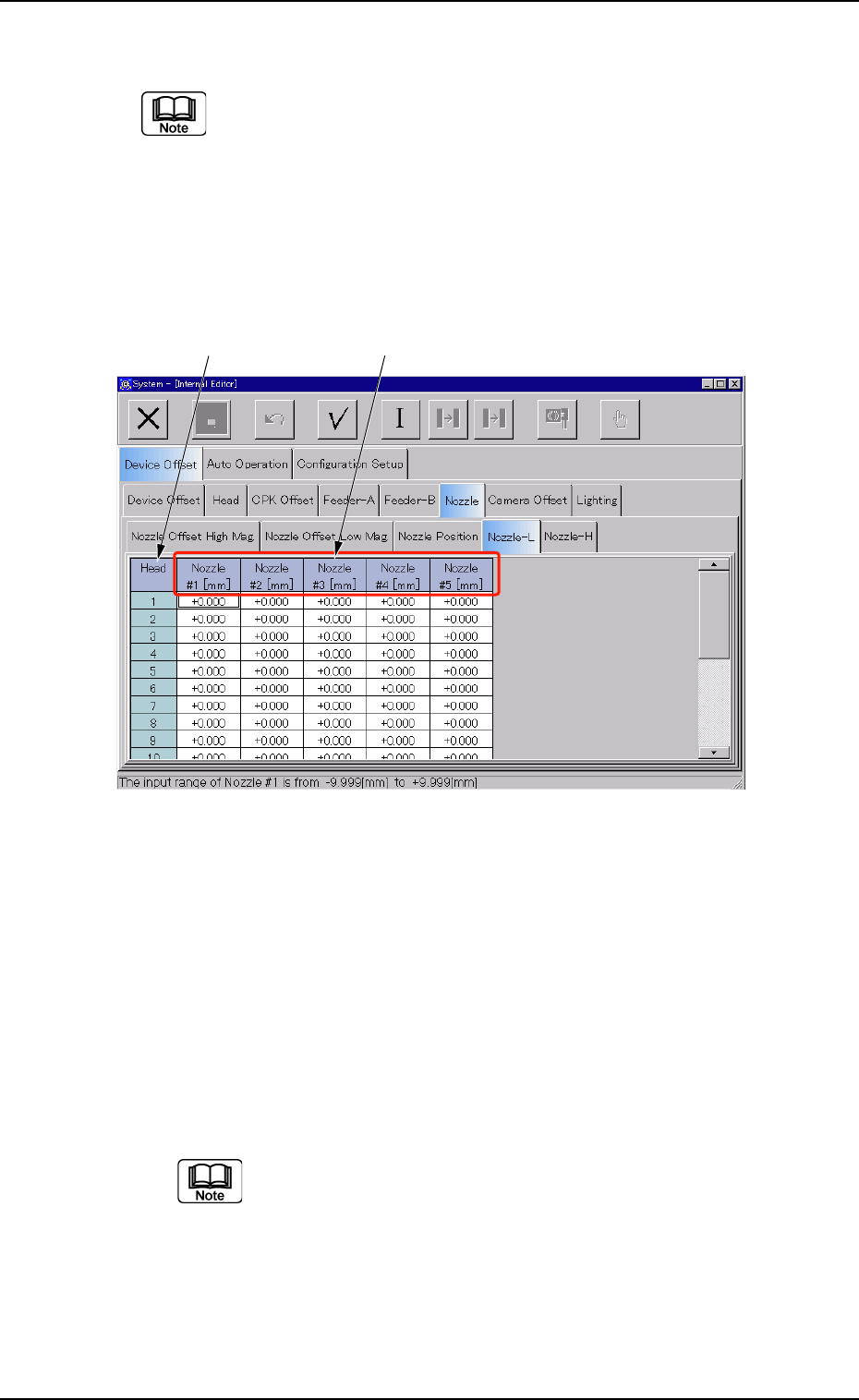

Fig. 3E33 "Nozzle-L" Tab Sheet
• Sheet Composition
*1 Head
The head Nos. are displayed.
*2 Nozzle #1 [mm], Nozzle #2 [mm], Nozzle #3 [mm], Nozzle #4
[mm], Nozzle #5 [mm]
Each text box shows an offset value that is used to correct varia-
tions in each nozzle height when the nozzle U/D selector (L/H se-
lection) is set to "L" (Low Level) or "H" (High Level).
(a) A plus or minus value is allocated according to the level
variation of each nozzle compared with the origin of the
linear measure detection sensor.
(b) When a nozzle is located above the origin level of the
linear measure detection sensor, a minus (-) value
must be entered as the offset data.
0301-006 5-34
AFO01EDTP
*1 *2
3.2 "Device Offset" Tab
3.2.6 "Camera Offset" Tab
The "Camera Offset" tab sheet is composed of the "Camera Offset",
"Individual Nozzle Camera #1 Gain/Level", and "Individual Nozzle Cam-
era #2 Gain/Level" tabs.
• Sheet Layout
When the "Camera Offset" tab is pressed in the "Device Offset" tab
sheet, the following tab sheet appears.

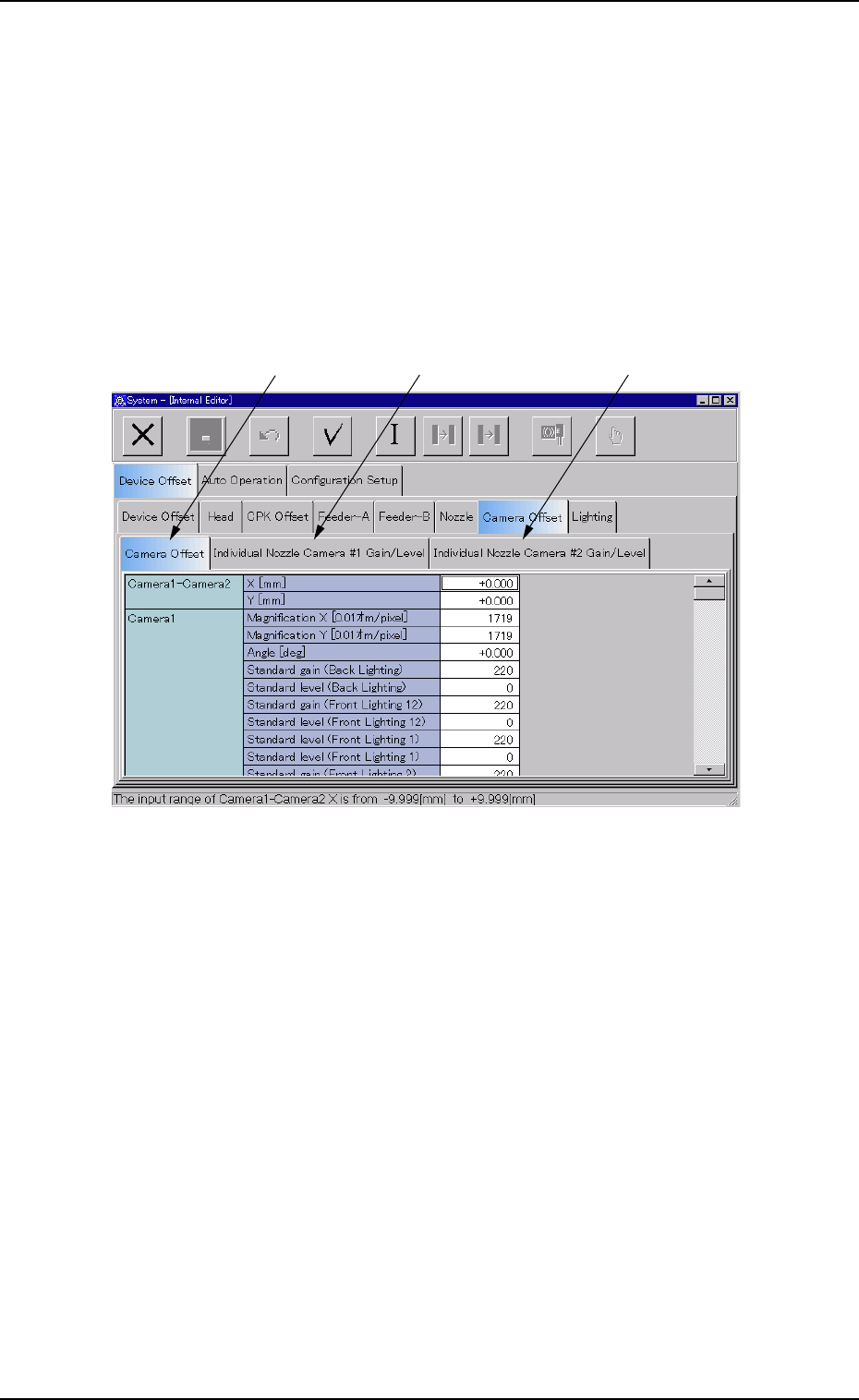

Fig. 3E34 "Camera Offset" Tab Sheet
• Sheet Composition
*1 "Camera Offset" Tab
When selected, the "Camera Offset" tab sheet appears.
*2 "Individual Nozzle Camera #1 Gain/Level" Tab
When selected, the "Individual Nozzle Camera #1 Gain/Level" tab
sheet appears.
*3 "Individual Nozzle Camera #2 Gain/Level" Tab
When selected, the "Individual Nozzle Camera #2 Gain/Level" tab
sheet appears.
0301-005 5-35
AFO01EDTP
*1 *2
*3
3.2 "Device Offset" Tab
(1) "Camera Offset" Tab
• Sheet Layout
When the "Camera Offset" tab is pressed in the "Camera Offset" tab
sheet, the following tab sheet appears.

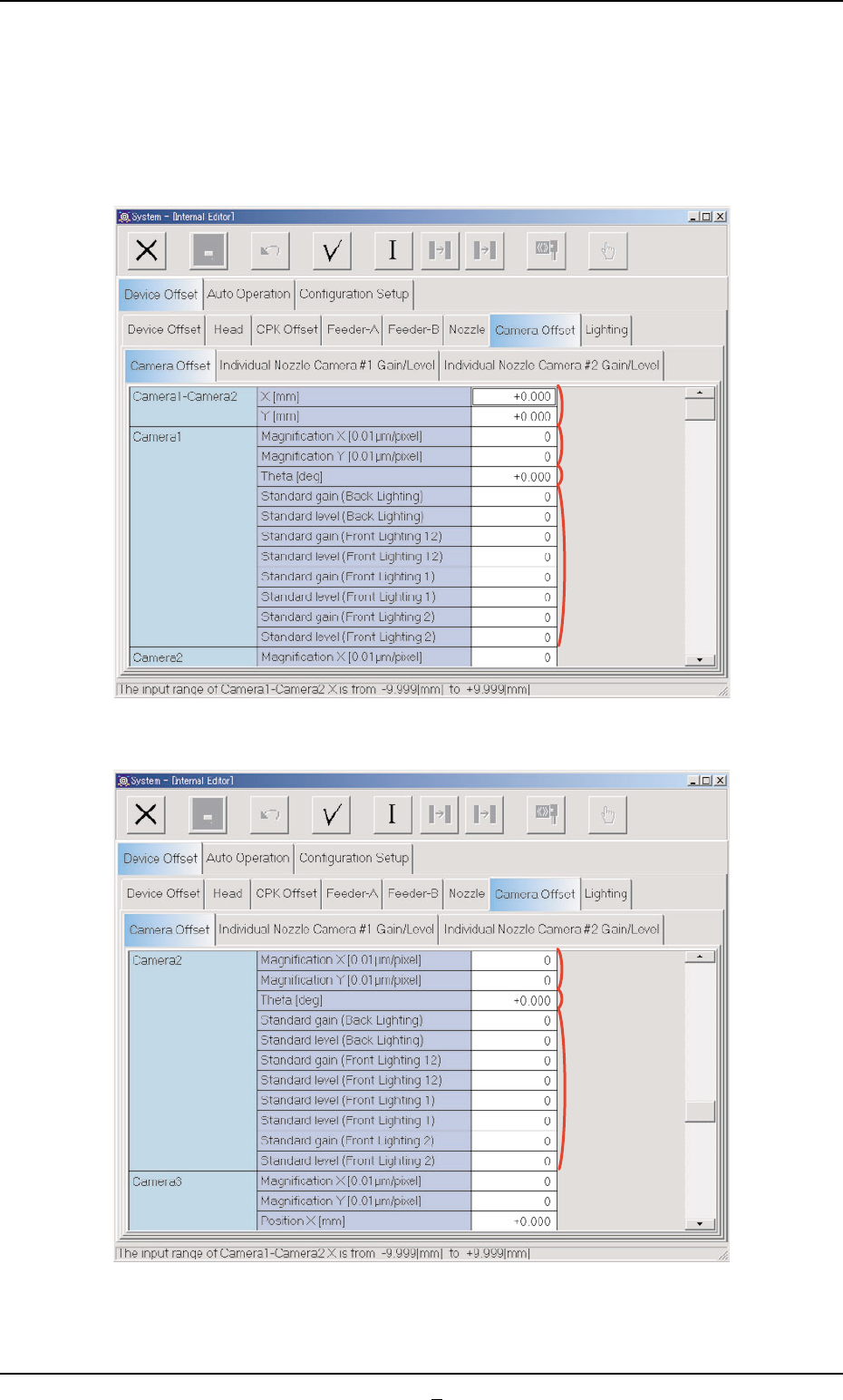

Fig. 3E35 "Camera Offset" Tab Sheet (1)
Fig. 3E35-1 "Camera Offset" Tab Sheet (2)
0307-006 5-36 AFO01EDTP
*1
*2
*3
*4
3.2 "Device Offset" Tab
*5
*6
*7
