3.7 "Handling/Placement Data" Tab

The corresponding tab sheet enables the operator to view the handling/

placement data.

• Sheet Layout

When the "Handling/Placement Data" tab is pressed in the "Manage-

ment Data" window, the following tab sheet appears inside the window.

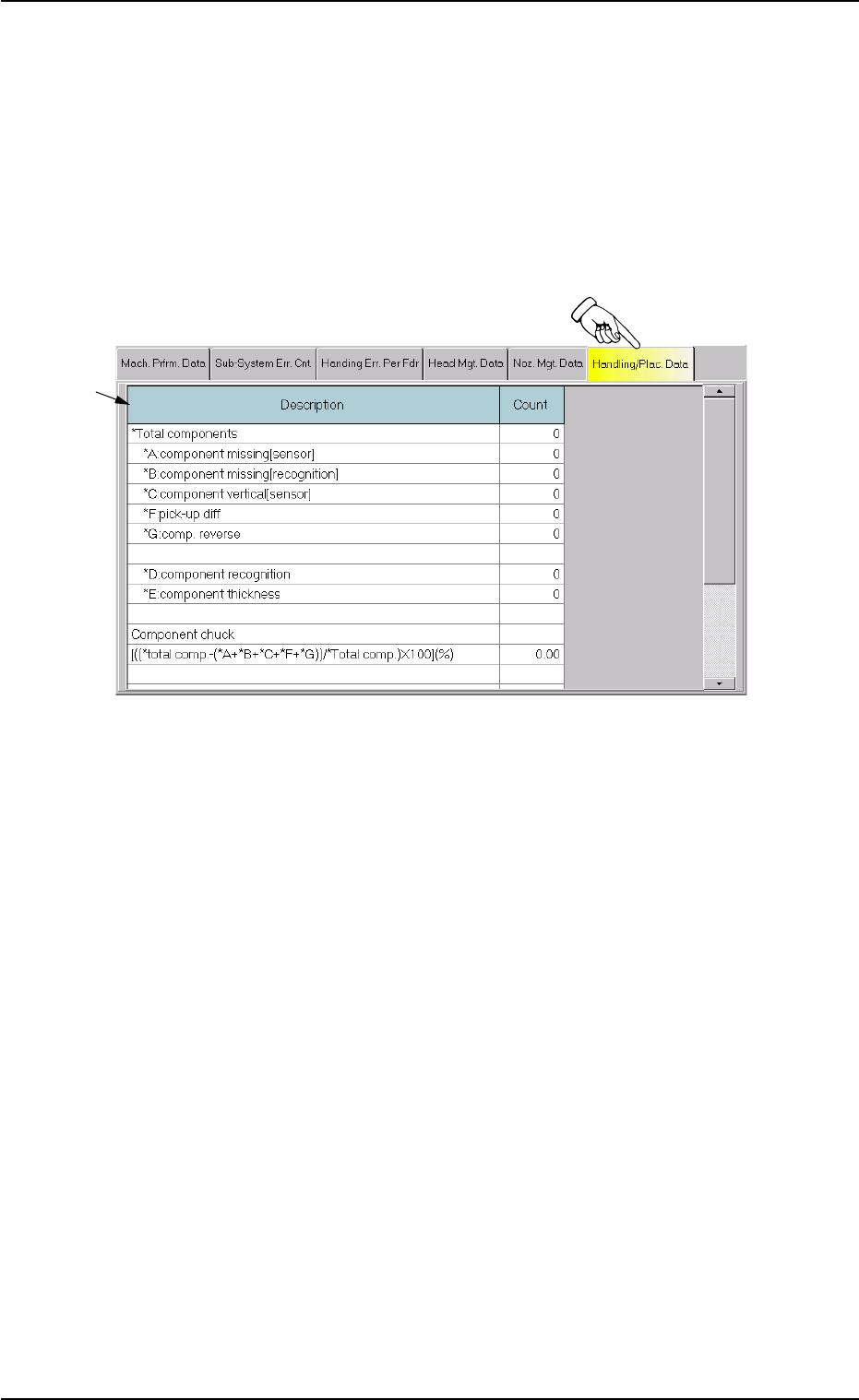

Fig. 3D14 "Handling/Placement Data" Tab Sheet

• Sheet Composition

*1 Description and Count

The following items are displayed.

(1) *Total components

The corresponding "Count" text box shows the number of com-

ponent picks.

*A: component missing [sensor]

The corresponding "Count" text box shows the number of miss-

ing components detected by the linear measure detection sen-

sor.

*B: component missing [recognition]

The corresponding "Count" text box shows the number of miss-

ing components detected through component recognition op-

eration.

*C: component vertical [sensor]

The corresponding "Count" text box shows the number of verti-

cal components detected by the linear measure detection sen-

sor.

3.7 "Handling/Placement Data" Tab

0210-005 4-27 AFO01EDTP

0210-004 4-28 AFO01EDTP

*F: pick-up diff

The corresponding "Count" text box shows the number of "Pick-

Up Difference Errors" detected through recognition operation.

*G: comp. reverse

The corresponding "Count" text box shows the number of "Re-

versed Component Errors" detected through recognition opera-

tion.

*D: component recognition

The corresponding "Count" text box shows the number of com-

ponents judged "NG" (No Good) through recognition operation.

*E: component thickness

The corresponding "Count" text box shows the number of errors

in component thickness detected by the linear measure detec-

tion sensor.

(2) Component chuck

[((*total comp.-(*A + *B + *C + *F + *G))/*Total comp.) X100](%):

Value (%) determined by the following formula

(# of Picks - (Counts in *A + Counts in *B + Counts in *C + Counts

in *F + Counts in *G))/# of Picks x 100

(3) Component placement

[((*total comp.-(*A + *B + *C + *D + *E + *F + *G))/*Total comp.

X100](%): Value (%) determined by the following formula

(# of Picks - (Counts in *A + Counts in *B + Counts in *C + Counts

in *D + Counts in *E + Counts in *F + Counts in *G))/# of Picks x

100

About Data Counting (Counting of "*A: component miss-

ing [sensor]" and "*B: component missing [recognition]"

(a) When the tape end detection function is used, a compo-

nent shortage alarm is issued after the tape end is de-

tected continuously 3 times.

When "Missing Component" is detected and a component

shortage error occurs after the alarm is issued, the last

chuck action is not added to the number of picks and the

number of chuck errors.

(b) When the tape end detection function is not used, the ma-

chine stops in an error condition according to the number

of times (the number of continuous component missing

errors to be counted to stop the machine in an error condi-

tion) set in the "1" text box of "Error process" in the "Con-

trol Data" tab sheet of a "Component Library" window. In

this case, the number of missing component errors is not

added to the number of picks and the number of chuck

errors.

3.7 "Handling/Placement Data" Tab

4. "Pattern Program Management Data" Window

This window enables the operator to check the management data of the

models that correspond to each individual pattern programs.

• Window Layout

When the [Open] button is pressed after the desired model (program

name) is selected in the "Patt. Prgm Manage. Dt." tab sheet ("Man-

agement Data" window), the "Pattern Program Management Data"

window for the selected model opens.

Fig. 3D15 "Pattern Program Management Data" Window

• Window Composition

*1 Toolbar

The following icons are arranged.

[Close] Icon

When this is pressed, the "Pattern Program Management Data"

window closes.

*2 Program Name

Displayed are the pattern program name (comment), the clear date,

and the machine name related to the pattern program management

data.

*3 Tabs and Tab Sheets

The "Pattern Program Management Data" window is provided with

the following three tab sheets. When a tab is pressed, the corre-

sponding tab sheet appears inside the window.
