0301-004 2-61 AFO01EDTP
3.2 Single Pattern (P.E.C. Recognition Function
Enabled)
(1) Information on Pattern Program Creation
• P.C.B. size
Follow the same procedure as described in "3.1 Single Pattern".
• Packaged Posture and IDs of Components
Follow the same procedure as described in "3.1 Single Pattern".

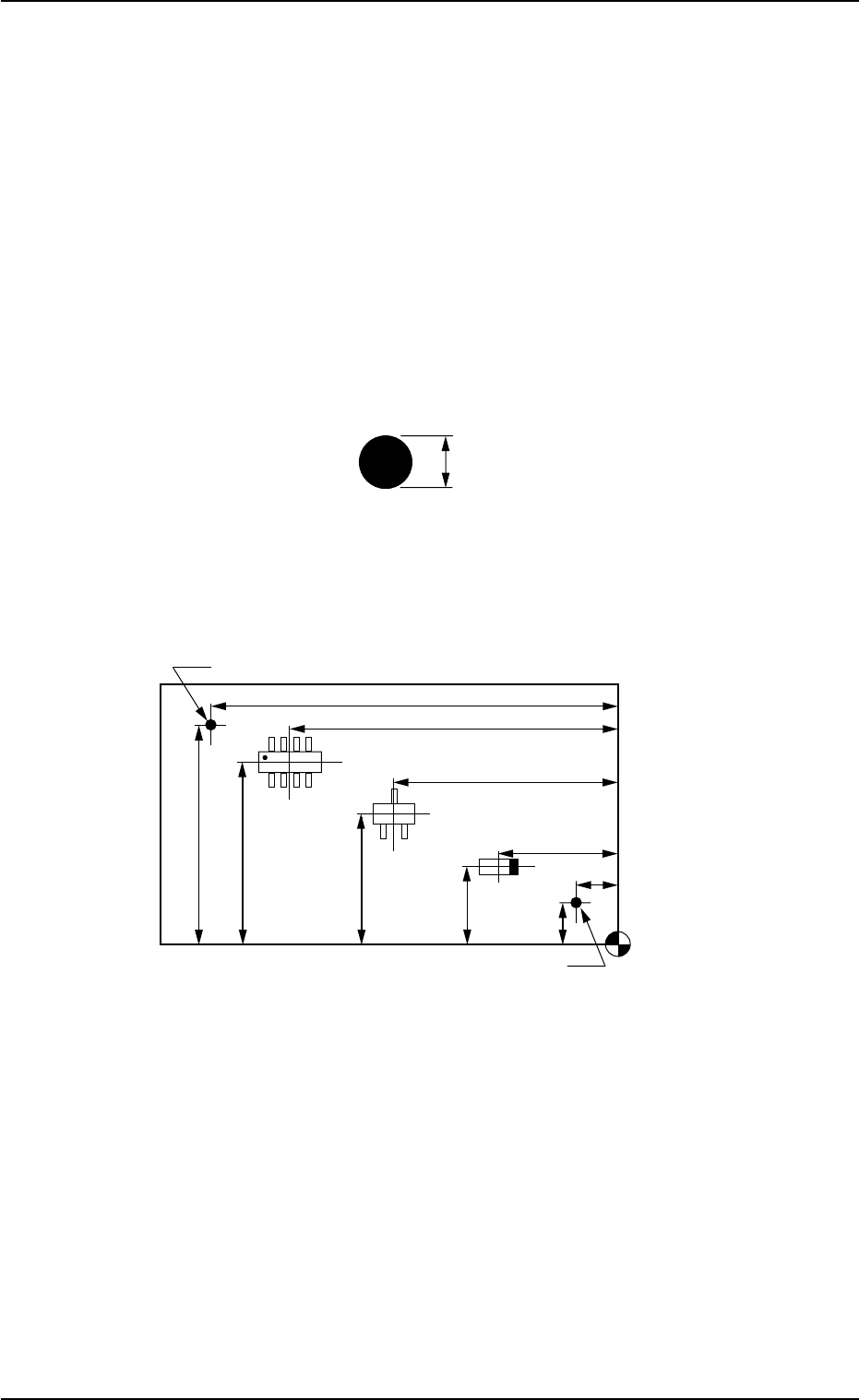

• P.E.C. Recognition Mark Data
Fig. 3B119
• Placement Coordinates & Angles and Coordinates of Fiducial
Marks
Fig. 3B120
1.0 mm
Placement Coordinate
Reference Point
X
3
Y
3
X
2
Y
2
X
1
FX
1
Y
1
FY
1
FY
2
FX
2
Fiducial Mark
Fiducial Mark
3.2 Single Pattern (P.E.C. Recognition Function Enabled)
0307-006 2-62 AFO01EDTP
(2) Creation of Operation Data
• P.C.B. Data
Follow the same procedure as described in "3.1 Single Pattern".
• P.E.C. Recognition Data
Table 3B22
P.E.C. recognition function Enable
P.E.C. recognition mode global 2 Point
P.E.C. recognition mode image Disable
P.E.C. recognition mode local Disable
Fiducial mark #1 X location [mm] FX
1
Fiducial mark #1 Y location [mm] FY1
Fiducial mark #1 Mark # 1
Fiducial mark #2 X location [mm] FX
2
Fiducial mark #2 Y location [mm] FY2
Fiducial mark #2 Mark # 1
Fiducial mark #3 X location [mm]
Fiducial mark #3 Y location [mm]
Fiducial mark #3 Mark #
• P.E.C. Recognition Mark Data
Table 3B23
Mark #
Mark Mark Size Mark Size Window
Mark Image Mark Level Recog Algo
Type D1 [mm] D2 [mm] Size [mm]
1 Round 1.00 0.00 5.0 Bright High Pattern
• Setup Data
Create this data when the automatic setup function should be used.
(3) Placement Feeder Location Data
Follow the same procedure as described in "3.1 Single Pattern".
3.2 Single Pattern (P.E.C. Recognition Function Enabled)
(4) Placement Data (P-data) U01
• Unit Control
Follow the same procedure as described in "3.1 Single Pattern".
• Unit P.C.B. B.B.R.
Follow the same procedure as described in "3.1 Single Pattern".
• Placement Data (P-data)
Follow the same procedure as described in "3.1 Single Pattern".
(5) Placement Data (O-data) U01
Do not make this data.
0110-003 2-6 3
AFO01EDTP
3.2 Single Pattern (P.E.C. Recognition Function Enabled)
