(6) Multi-Model Repetitive Pattern (Unit P .C.B. B.B.R. Enabled) Fig. 3B7 List of Required Data T able 3B14 Pattern Program Required Data Operation Data P .C.B. Data P .E.C. Recognition Data P .E.C. Recognition Mark Data…
(5) Repetitive Pattern (Unit P.C.B. B.B.R. Function Enabled)
Fig. 3B6
List of Required Data Table 3B13
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
Unit P.C.B. B.B.R. Detection Mark (Bad Mark)
Placement Coordinate Reference Point
2.1 Types of P.C.B.’s and Required Data
0301-004 2-11 AFO01EDTP

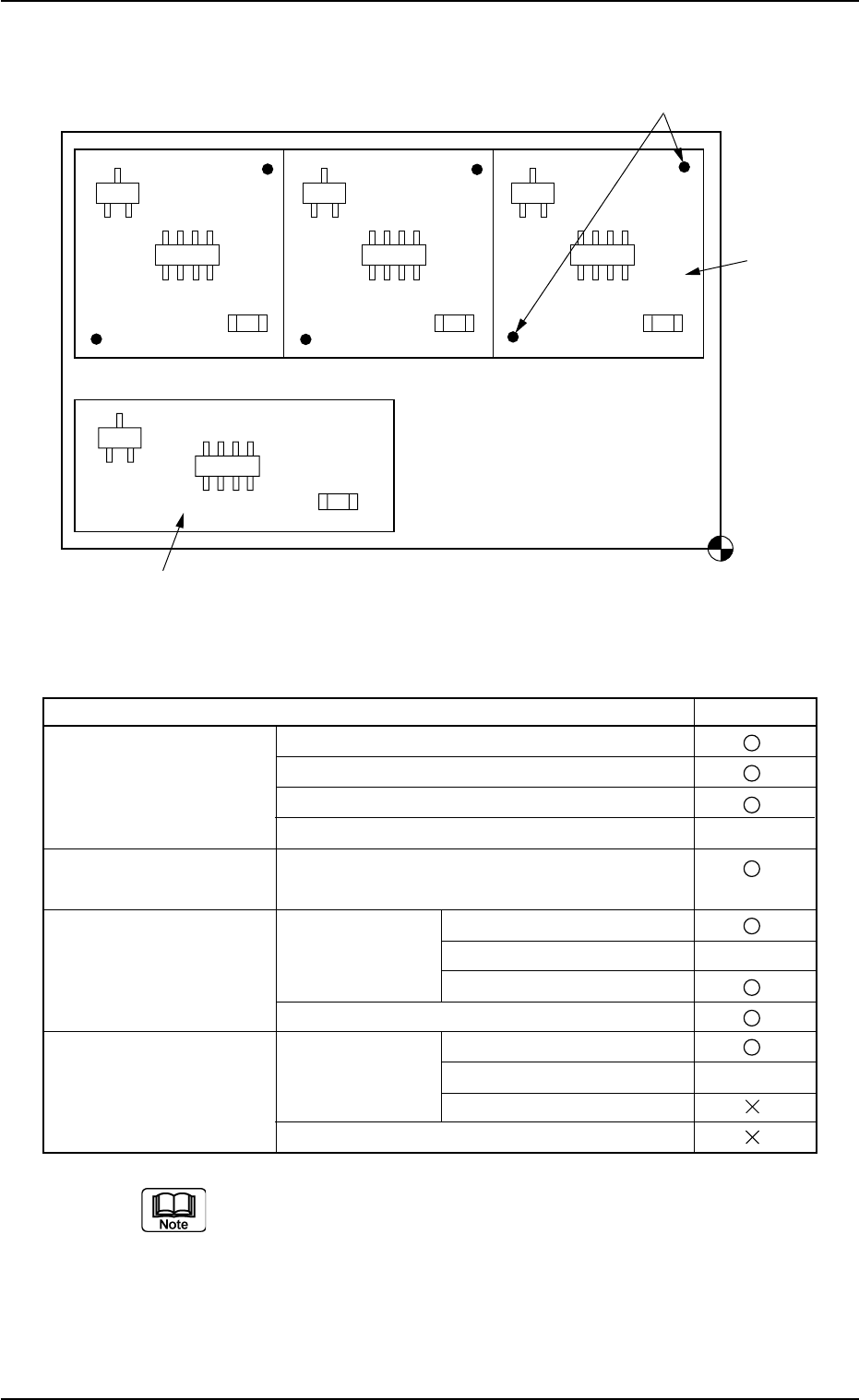

(6) Multi-Model Repetitive Pattern (Unit P.C.B. B.B.R. Enabled)
Fig. 3B7
List of Required Data Table 3B14
Pattern Program
Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Feeder Carriages #1, #2, #3, and #4
Location Data
Placement Data U01 Placement Data Placement Data (P Data)
(P Data) Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
Placement Data Un Placement Data Placement Data (P Data)
(P Data) Unit control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O Data)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor and chute widths, etc.
(b) Specify these parameters (data) according to the situational
changes.
P.E.C. Recognition Marks
U02
U01
Placement Coordinate Reference Point
2.1 Types of P.C.B.’s and Required Data
0301-004 2-12 AFO01EDTP
2.2 Pattern Program Name
To save a pattern program, it is required to give a name to the program.
Up to 32 characters (alphanumerics and marks) can be used.
2.3 Operation Data
(A01) P.C.B. Data

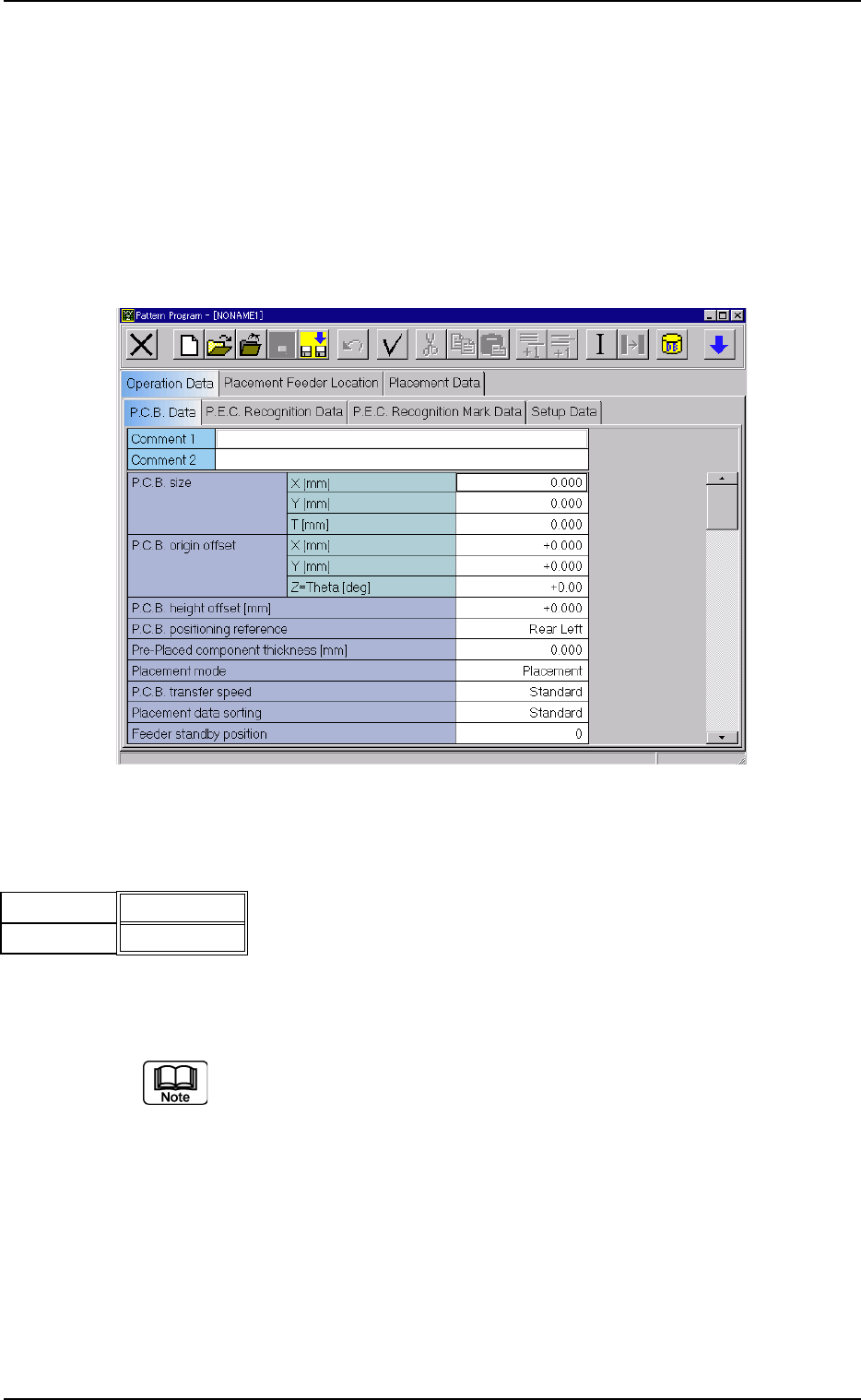

Fig. 3B8 Edit Window (Example)
(A01_01) Comment 1, 2
Comments on the pattern program can be specified in these text boxes.
Up to 32 characters (alphanumerics and marks) can be used.
The performance of the machine is not affected by these comments. In
other words, it has nothing to do with or without these comments.
2.2 Pattern Program Name
0210-004 2-13 AFO01EDTP
Fig. 3B8-1
Comment 1
Comment 2
