5 . 4 "Nozzle Bypass Rate" T ab The corresponding tab sheet displays the pick-up rates (managed for each individual nozzles) based on the nozzle bypass rates specified in the auto operation setup. • Sheet Layou…

100%1 / 321
(5) [D: comp. Recog.] Button
Each text box shows the number of component recognition errors.
(6) [E: comp. Thick] Button
Each text box shows the number of errors in component thickness
detected by the linear measure sensor for each individual nozzles.
(7) [F: pick-up Diff] Button
Each text box shows the number of pick-up difference errors de-
tected through recognition operation for each individual nozzles.
(8) [G: Comp. Reverse] Button
Each text box shows the number of reversed component errors
detected through recognition operation for each individual nozzles.
(9) [Nozzle Message Rate (Total Errors/Total Noz. Usage)] But-
ton
Each text box shows the rate of pick-up errors (the number of pick-
up errors per number of picks) for each individual nozzles.
0210-005 4-47
AFO01EDTP
5.3 "Nozzle Message Rate" Tab
5.4 "Nozzle Bypass Rate" Tab
The corresponding tab sheet displays the pick-up rates (managed for
each individual nozzles) based on the nozzle bypass rates specified in
the auto operation setup.
Sheet Layout
When the "Nozzle Bypass Rate" tab is pressed in the "Bypass & Rate
Data" window, the following tab sheet appears inside the window.

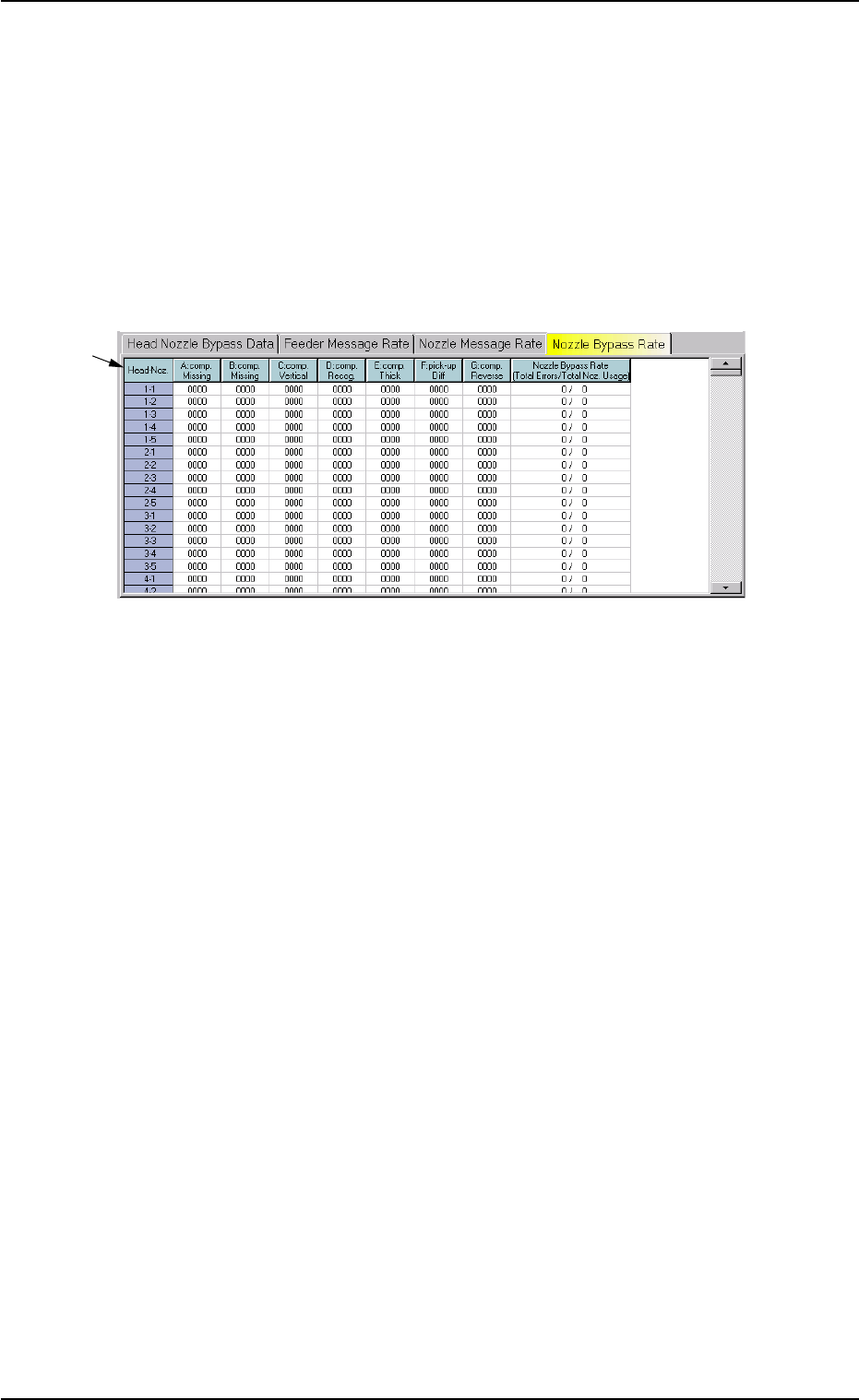

Fig. 3D24 "Nozzle Bypass Rate" Tab Sheet
Sheet Composition
*1 Items
The following items are displayed.
(1) [Head-Noz.] Button
Shown are the nozzle Nos. on each head No.
(2) [A: comp. Missing] Button
Each text box shows the number of missing component errors de-
tected by the linear measure detection sensor.
(3) [B: comp. Missing] Button
Each text box shows the number of missing component errors de-
tected through recognition operation.
(4) [C: comp. Vertical] Button
Each text box shows the number of vertical component errors de-
tected by the linear measure sensor for each individual nozzles.
*1
0210-005 4-48 AFO01EDTP
5.4 "Nozzle Bypass Rate" Tab
(5) [D: comp. Recog.] Button
Each text box shows the number of component recognition errors.
(6) [E: comp. Thick] Button
Each text box shows the number of errors in component thickness
detected by the linear measure sensor for each individual nozzles.
(7) [F: pick-up Diff] Button
Each text box shows the number of pick-up difference errors de-
tected through recognition operation for each individual nozzles.
(8) [G: Comp. Reverse] Button
Each text box shows the number of reversed component errors
detected through recognition operation for each individual nozzles.
(9) [Nozzle Bypass Rate (Total Errors/Total Noz. Usage)] Button
Each text box shows the rate of pick-up errors (the number of pick-
up errors per number of picks) for each individual nozzles.
0210-004 4-49
AFO01EDTP
5.4 "Nozzle Bypass Rate" Tab
