3.2.5 "Nozzle" Tab
The "Nozzle" tab sheet is composed of the "Nozzle Offset High Mag.",
"Nozzle Offset Low Mag.", "Nozzle Position", "Nozzle-L", and "Nozzle-
H" tabs.

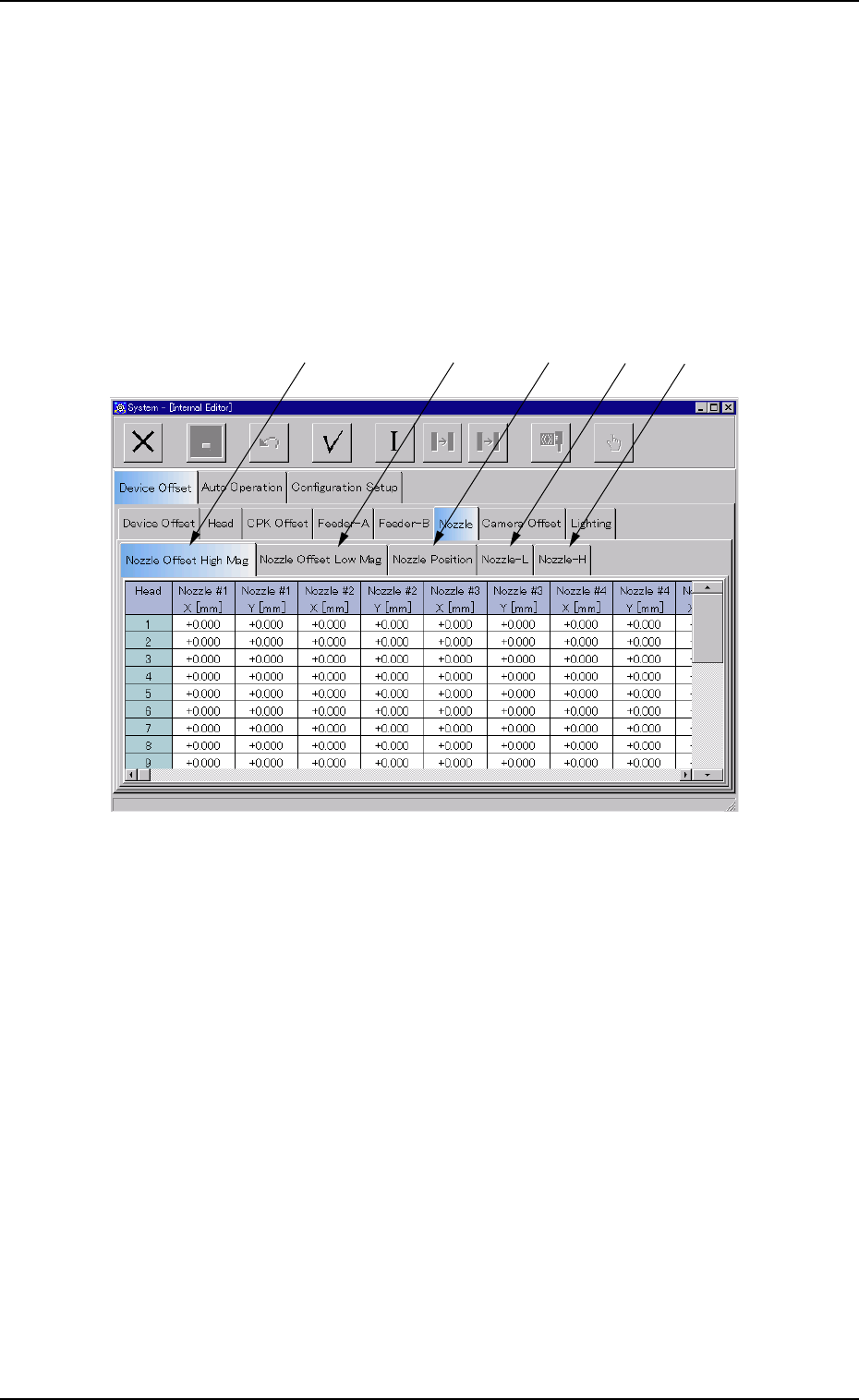

• Sheet Layout
When the "Nozzle" tab is pressed in the "Device Offset" tab sheet, the
following tab sheet appears.
Fig. 3E28
• Sheet Composition
*1 [Nozzle Offset High Mag.] Tab
When selected, the "Nozzle Offset High Mag." tab sheet appears.
*2 [Nozzle Offset Low Mag.] Tab
When selected, the "Nozzle Offset Low Mag." tab sheet appears.
*3 [Nozzle Position] Tab
When selected, the "Nozzle Position" tab sheet appears.
*4 [Nozzle-L] Tab
When selected, the "Nozzle-L" tab sheet appears.
*5 [Nozzle-H] Tab
When selected, the "Nozzle-H" tab sheet appears.
0301-005 5-28
AFO01EDTP
*1
*2
*3
*4
*5
3.2 "Device Offset" Tab
(1) "Nozzle Offset High Mag." Tab
• Sheet Layout
When the "Nozzle Offset High Mag." tab is pressed in the "Nozzle" tab
sheet, the following tab sheet appears.

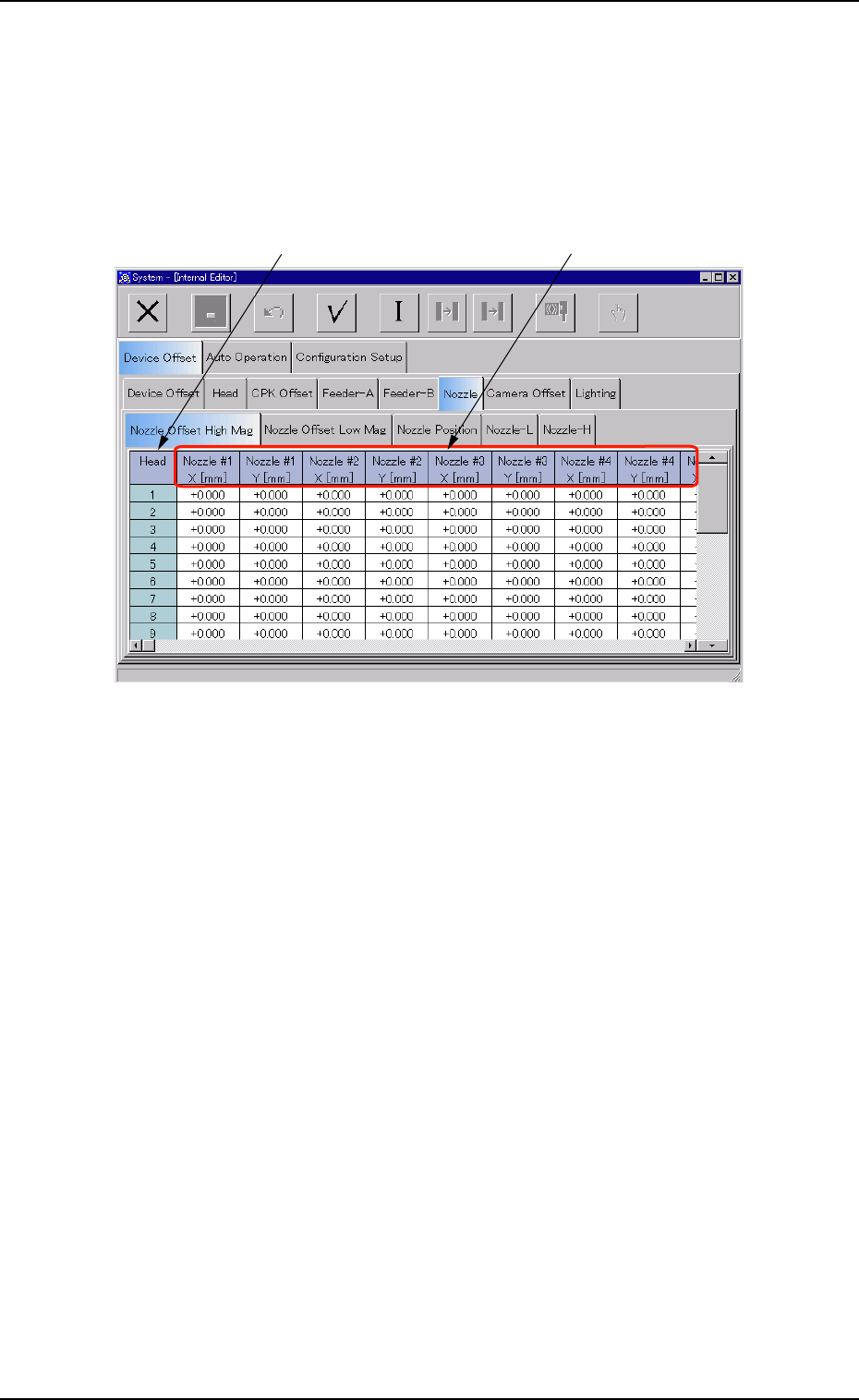

Fig. 3E29 "Nozzle Offset High Mag." Tab Sheet
• Sheet Composition
*1 Head
The head Nos. are displayed.
0301-005 5-29
AFO01EDTP
*1
*2
3.2 "Device Offset" Tab
*2 Nozzle #1 X [mm], Nozzle #1 Y [mm], Nozzle #2 X [mm], Nozzle
#2 Y [mm], Nozzle #3 X [mm], Nozzle #3 Y [mm], Nozzle #4 X
[mm], Nozzle #4 Y [mm], Nozzle #5 X [mm], Nozzle #5 Y [mm]
Each text box shows an offset value of nozzle position based on the
center of the component recognition camera (Camera #1 High Mag-
nification) at component recognition of each nozzle.
(a) These offset values are automatically calculated through
teaching operation.

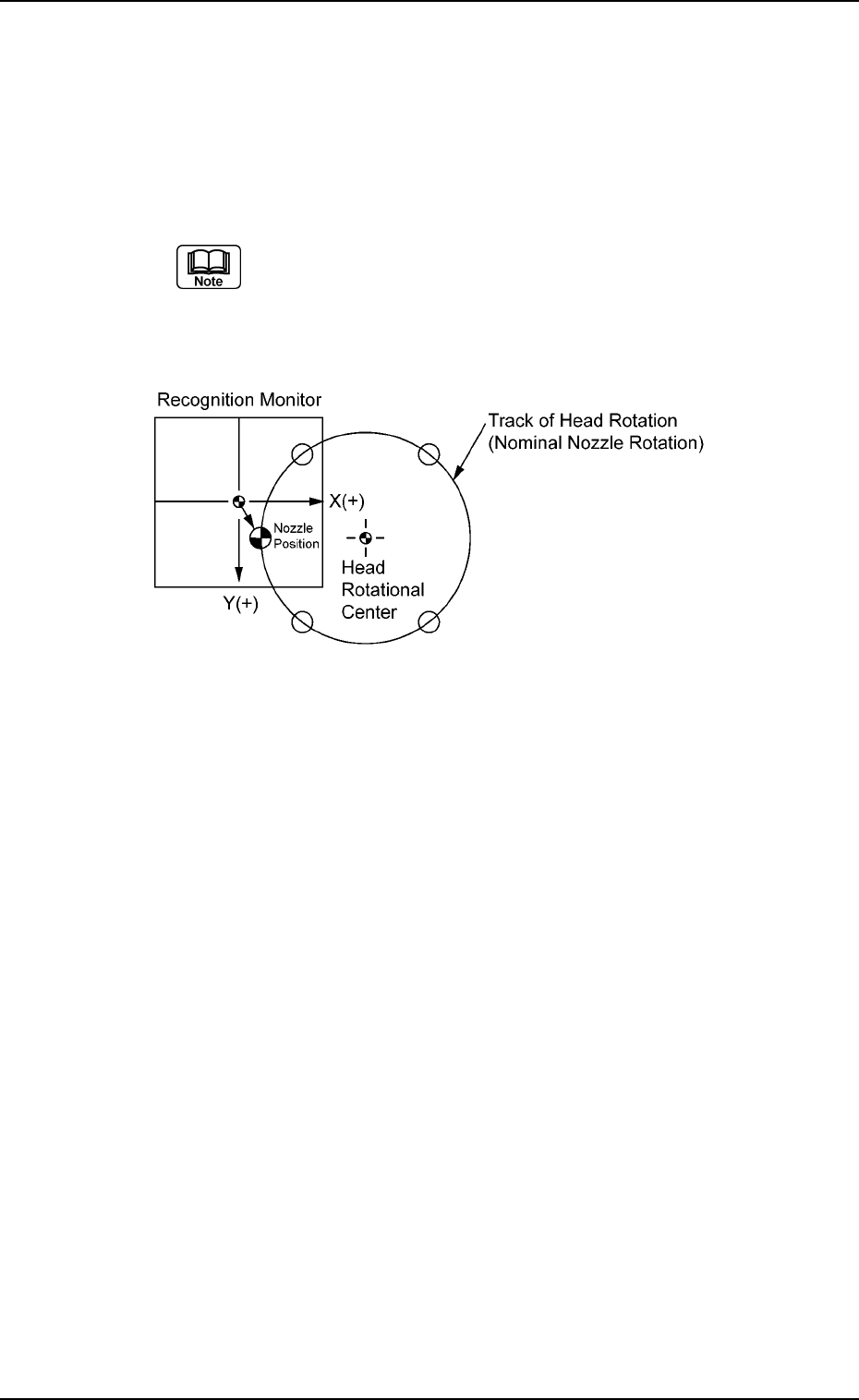

(b) When a nozzle is located at the place shown below,
plus values are allocated for both X and Y.
Fig. 3E30
0207-004 5-30
AFO01EDTP
