12. Feed the cleaner paper across the body assembly, ensuring the cleaner paper is aligned parallel to the unit end plate. 13. Insert the paper roll rod into the right hand flange of the shaft. Lay the rod along the shaf…

Rotate the paper roll shaft until the groove is at 45° to the horizontal, facing

towards the top rear printhead cover of the machine.

10. Refit the paper spindles to both ends of the new paper roll. Ensure both

faces of the new paper roll are flush.

11. Install the new clean paper roll at the front of the unit, ensure the paper is

routed from underneath the roll towards the rear of the unit.

9.30 User Manual Software Version 6

CONSUMABLE REPLENISHMENTS

BLUE UNDERSCREEN CLEANER

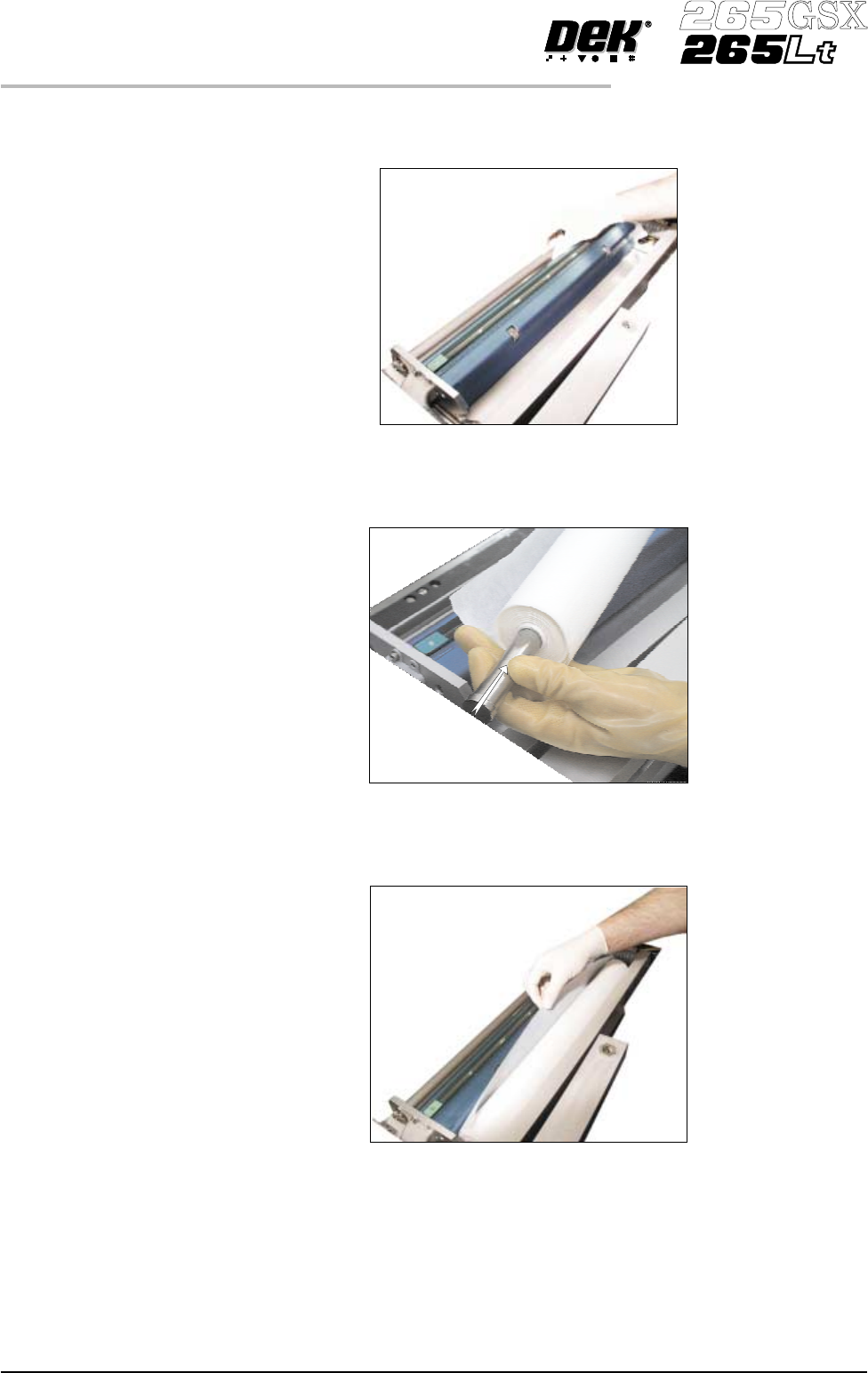

12. Feed the cleaner paper across the body assembly, ensuring the cleaner paper

is aligned parallel to the unit end plate.

13. Insert the paper roll rod into the right hand flange of the shaft. Lay the rod

along the shaft’s groove trapping the cleaner paper between the shaft and

rod.

14. Rotate the end flange of the rod towards the rear of the machine to lock the

rod onto the shaft.

Software Version 6 User Manual 9.31

CONSUMABLE REPLENISHMENTS

BLUE UNDERSCREEN CLEANER

15. Rotate the take up roll one complete revolution against the motor clutch to

tension the cleaner paper across the cleaner squeegee assembly.

16. Ensure the cleaner paper has been routed correctly, from underneath the

paper roll (1) rearwards across the squeegee assembly and threaded between

paper rod and shaft (2).

NOTE

Figures in brackets refer to the diagram below.

17.

Press Prime Paper (F5) key.

The message ‘Press the two control buttons to feed paper’ is displayed.

Prime

Paper

9.32 User Manual Software Version 6

CONSUMABLE REPLENISHMENTS

BLUE UNDERSCREEN CLEANER
