Installation Installation on X Series and D3 Machines Electrical Connections 114 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/ 36 3.2.3 Electrical Co nnections If you are retrofitting a TwinH ead or CPP head, yo…
Installation
Mechanical Assembly Installation on X Series and D3 Machines
Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 113
3.2.2.2 Installation with Keyhole (for Camera Type 33 from Version 06, Type 36 from Version 04)
WARNING!
Sandwich plate for fiducial
The "fiducial sandwich plate" is very heavy and, when fit-
ted, only clamped between the camera and machine
base. It can easily fall down, especially during removal.
► Fix the fiducial plate with the top two screws, so that
the plate is aligned to match the arrangement of holes
drilled in the machine. Make sure that the fiducial
plate is turned correctly (see label).
Tighten the two screws until the shaft of the screws
protrudes approx. 15 mm over the fiducial plate.
When measuring, make sure that the fiducial plate is
flush against the machine frame!
► Hook the upper holes ((1) key holes) on the lower
section of the camera onto the two screws.
► Adjust the lower section of the camera to the correct
installation height, with the two lower screws (2) and
tighten all four screws. Please also observe section
"4.1 Installation Height of the Stationary Camera"
[ ➙ 153].
► Check the horizontal alignment of the camera with
the machine spirit level.
Installation
Installation on X Series and D3 Machines Electrical Connections
114 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36
3.2.3 Electrical Connections
If you are retrofitting a TwinHead or CPP head, you can continue directly with section "3.2.3.2 Type 33
Cameras From FS03" [ ➙ 119] to fit this.
The following section describes the electrical installation for all camera versions which can be installed
in X series and D3 machines. This is also helpful for replacement of spare parts.
When retrofitting a camera using a retrofitting kit [00119782-xx], always use the latest version of the
camera (currently version 05, status 08/2011).
See also
4.2 Camera Coding and Connections [ ➙ 155]
4 Appendix [ ➙ 153]
3.2.3.1 Cameras Type 33 with FS01 or FS02 (X Series Only Up To B325)
NOTICE
Changing the machine wiring
There are differences in the component camera wiring (stationary, P&P, type 33, 55x45 digital
[03016339-xx]). One key change was made between versions FS03 and FS04. We therefore
do not recommend combining versions up until and including FS03 and from FS04 in the same
placement area and do not describe this type of combination in this manual.
NOTICE
VCU
These cameras can only be operated in conjunction with the Vision Control Unit (VCU) and in
SIPLACE X series machines with a serial number lower than B326. In these machines, the op-
eration of 4 stationary cameras or of two identical stationary cameras in one placement area is
not possible (e.g. FC/FC or IC/IC).
NOTICE
D series
The type 33 stationary camera in versions FS01 and FS02 can not be used in D series ma-
chines.
Connection cable for stationary cameras
► Pull the three connection cables for the IC camera
through the opening (1) and out of the machine
frame.
Installation
Electrical Connections Installation on X Series and D3 Machines
Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 115
See also
3.2.3.3 Connecting the Hotlink Cable to the Computer Unit [ ➙ 123]

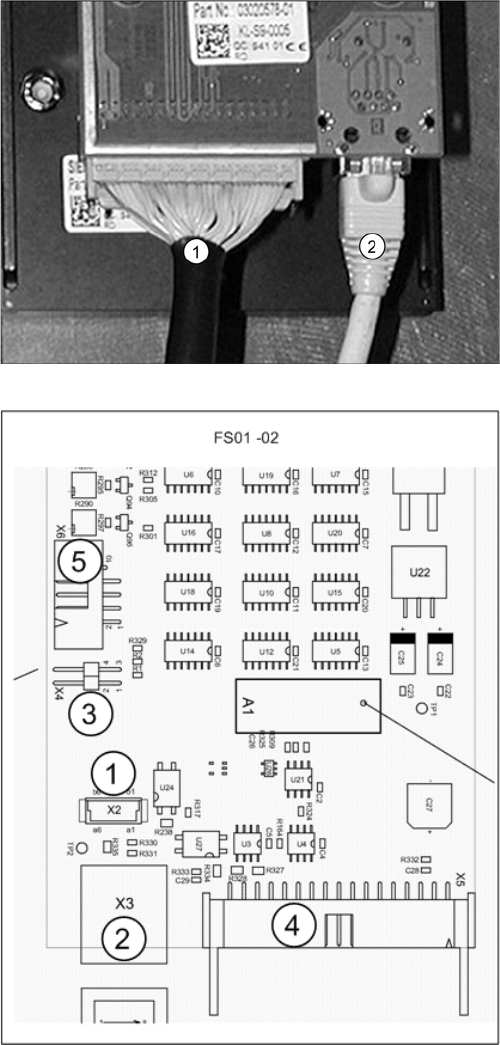

Camera (FS02)
1. X5: Vision cable 34-pin, from IC camera to Vision
Control Unit, stationary
2. X3: Cable from camera bus to computer unit
► Connect the cable (1) to the camera. This creates the
connection to the Vision Control Unit, stationary.
► Connect the cable (2) to the camera. This creates the
connection to the computer unit. Continue by reading
the following section: "3.2.3.3 Connecting the Hotlink
Cable to the Computer Unit" [ ➙ 123]
For more information, refer to the circuit diagrams:
"4.4.1.1 Camera Up To FS02" [ ➙ 159]
Vision LED driver board SST20 (up to FS02)
1. X2: Not relevant
2. X3: Cable from camera bus to computer unit
3. X4: Jumper must be connected
4. X5: Vision cable 34-pin, from IC camera
[03003439-xx] to Vision Control Unit, stationary
5. X3: Not relevant
