Installation Electrical Connections Installation on X Series and D3 Machines Stationary Camera Typ e 33/36 Stationäre Kamera Typ 33/36 119 3.2.3.2 Type 33 Cameras From FS03 ► Pull the three connection cables for the IC c…
Installation
Installation on X Series and D3 Machines Electrical Connections
118 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36
► Connect the black Vision control cables (4) and (5) to X4 or X5 "Control Unit 1 Vision, Stationary"
[00363961-xx]. See also the circuit diagrams: "4.4.1.1 Camera Up To FS02" [ ➙ 159]
Encoding of DIP switch for "Control Unit 1 Vision, Stationary" [00363961-xx]
► Set the DIP switch on the VCU (Control Unit 1 Vision, Stationary [00363961-xx]):
VCUs for X series up to number B236 with IC camera FS01 or FS02
* Not all gantries may be available, depending on the machine type.
Control Unit 1 Vision, Stationary (up to FS02)
1. X1: to TQM module
2. X2: CAN bus
3. S1: DIP switch
4. X4: Vision cable 34-pin IC camera [03003439-xx]
5. X5: Vision cable 34-pin FC camera [03003440-xx]
NOTICE
Camera configuration
When using SIPLACE X machines with stationary cameras up to FS02, you can only operate
1 gantry with stationary cameras (IC/FC) per placement area, as activation of the VCU is spe-
cific to the gantry.
S Setting for gantry* Comments
1 2 3 4
1 OFF OFF OFF OFF CAN terminator
2 OFF OFF OFF OFF Reset
3 OFF OFF OFF OFF Boot
4 OFF OFF OFF OFF CAN error switch
5ON ON OFF OFFID 1
6 ON OFF ON OFF ID 2
7 OFF OFF OFF OFF CAN speed
8 OFF OFF OFF OFF CAN group
Installation
Electrical Connections Installation on X Series and D3 Machines
Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 119
3.2.3.2 Type 33 Cameras From FS03
► Pull the three connection cables for the IC camera through the opening and out of the machine
frame.
► Check the jumper setting at the camera. For more information see section "4.2 Camera Coding and
Connections" [ ➙ 155]
► To connect the camera, read section "4.2.1 Cameras Type 33 From Version 03 To 07, Cameras
Type 36 From Version 01" [ ➙ 155].
► The connection of hotlink cards is specific to your machine. For more information, continue with the
relevant section at:
"3.2.3.3 Connecting the Hotlink Cable to the Computer Unit" [ ➙ 123] or
"3.2.3.4 Connecting the Hotlink Cable to the BoxPC" [ ➙ 124]
See also
3.5.3.1 Connecting the Hotlink Cable to the BoxPC [ ➙ 147]
3.2.3.3 Connecting the Hotlink Cable to the Computer Unit [ ➙ 123]

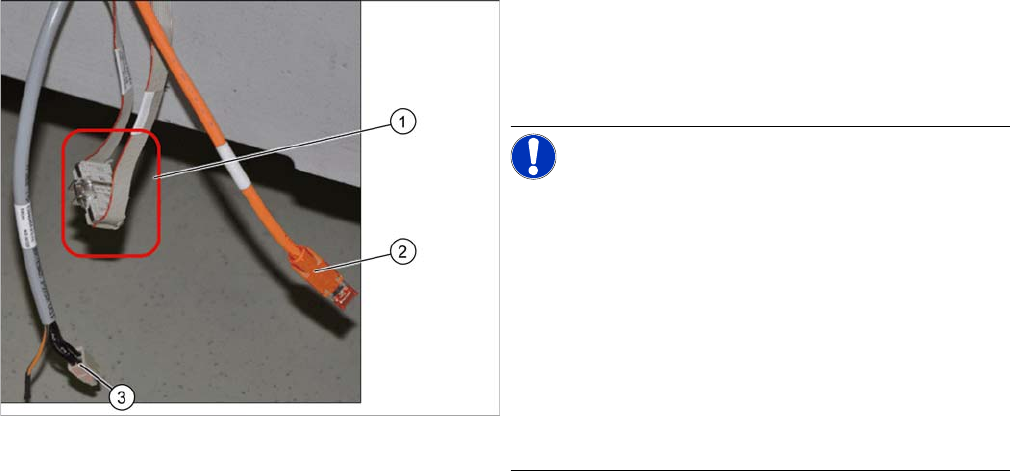

CAN bus connection (X series – from serial no. B326)
► Connect the CAN bus cable (1), the camera bus (2)
and the voltage supply (3) to the camera. For more in-
formation see section "4.4 Circuit Diagrams for X Se-
ries/D3" [ ➙ 159]
NOTICE!
Observe the FS03 and machine serial number. You may
need to install a Vision Control Unit, stationary here. The
connection of hotlink cards is also specific to the machine
used. The relevant descriptions can be found on the fol-
lowing pages of this document.
In X series machines from serial no. B160 the CAN bus
cable is looped out of the machine frame.
The CAN bus cable (03050239-xx) supplied in the retro-
fitting kit is used to connect the CAN bus cable (1) to the
camera.
► Disconnect the CAN bus cables from one another at
the coupling (1). Connect the adapter cable
[03050239-xx] in-between so that you have two addi-
tional CAN connectors available for the two stationary
cameras.
Installation
Installation on X Series and D3 Machines Electrical Connections
120 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36
Connection of an IC Camera Stationary SST33 from FS03 to VCU (Up TO Serial Number 325)
NOTICE
Observe the machine serial number and camera FS number.
Observe this section for X series machines up to serial number B325 and IC cameras from
FS03.
NOTICE
CPP and VCU
The Vision Control Unit (VCU) does not support CPP heads. CPP heads and the corresponding
stationary cameras are therefore only possible from machine serial number B326.
► In this case, read the corresponding assembly instructions for information about further re-
strictions.
NOTICE
Control Unit 1 Vision, Stationary [00363961-xx]
The "Control Unit 1 Vision, Stationary" [00363961-xx] is part of the "Reconfig. parts kit parts kit
for X series/TwinHead" [03041487-xx].
► Fit the "Control Unit 1 Vision, Stationary" (1)
[00363961-xx] in the relevant slot.
The VCU for PA1 is located in the subdistributor (location
4).
The VCU for PA2 is located in the main distributor (loca-
tion 2).
