4.1 Installation Height of the Stationary Camera
The installation height at which the camera can be installed depends on the camera version. You will
either only be able to use one specific height or will have the option of several installation heights. The
description below applies to the following cameras:
▪ Component camera, stationary P&P (type 33) 55x45 digital [03016339-xx] from version 06
▪ Component camera, stationary, P&P (type 36) 32 x 32, digital [03042491-xx] from version 04
CAUTION
Observe the installation height
When fitting the camera, observe the correct installation height. Othwerwise there is a risk of
head crash!
► When setting the installation height, consider all the heads in one placement area.
► If you are using a stationary camera with a CPP head, the CPP head must be fitted in the
top position.

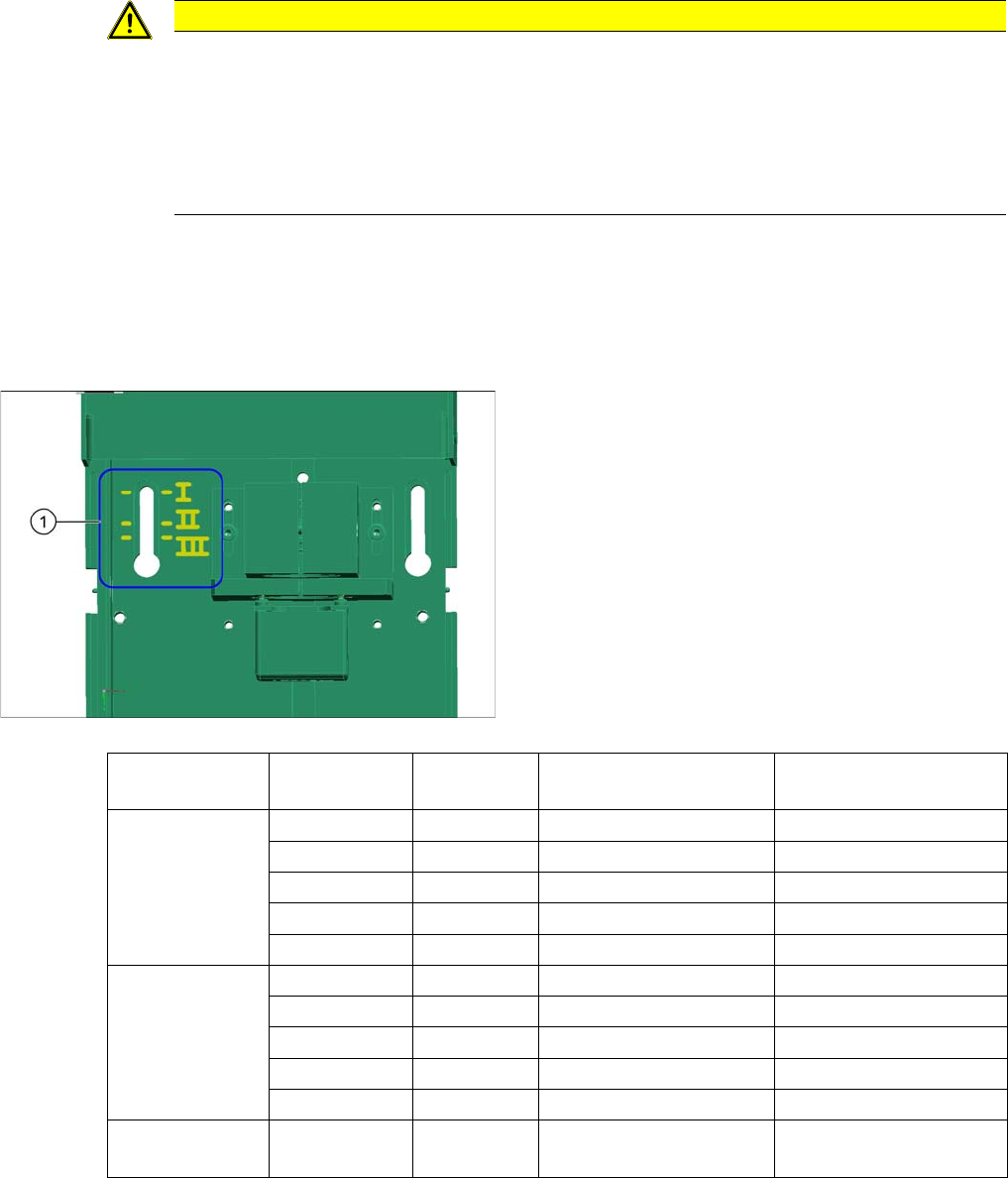

1. Installation positions I to III
Machine type Gantry A Gantry B Installation position Focal level via PCB up-
per edge
X Series DLM, CPP_H TwinHead Position I (bottom) 3.5 mm
CPP_H CPP_H Position I (bottom) 3.5 mm
TwinHead TwinHead Position III (top) 23.5 mm
CPP_H – Position I (bottom) 3.5 mm
TwinHead – Position III (top) 23.5 mm
SX series CPP_H TwinHead Position I (bottom) 12 mm
CPP_H CPP_H Position I (bottom) 12 mm
TwinHead TwinHead Position I (bottom) 12 mm
CPP_H – Position I (bottom) 12 mm
TwinHead – Position I (bottom) 12 mm
D1/D3 DLM P&P mod-
ule.
Position I (bottom) 13 mm
Appendix
Installation Height of the Stationary Camera Stationary Camera in Position I
154 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36
4.1.1 Stationary Camera in Position I
4.1.2 Stationary Camera in Position II
Position II (middle) is not relevant for D, SX or X series machines.
4.1.3 Stationary Camera in Position III
If you are using a DLM or CPP head in a placement area,
fit the camera in the bottom position. This equates to po-
sition I.

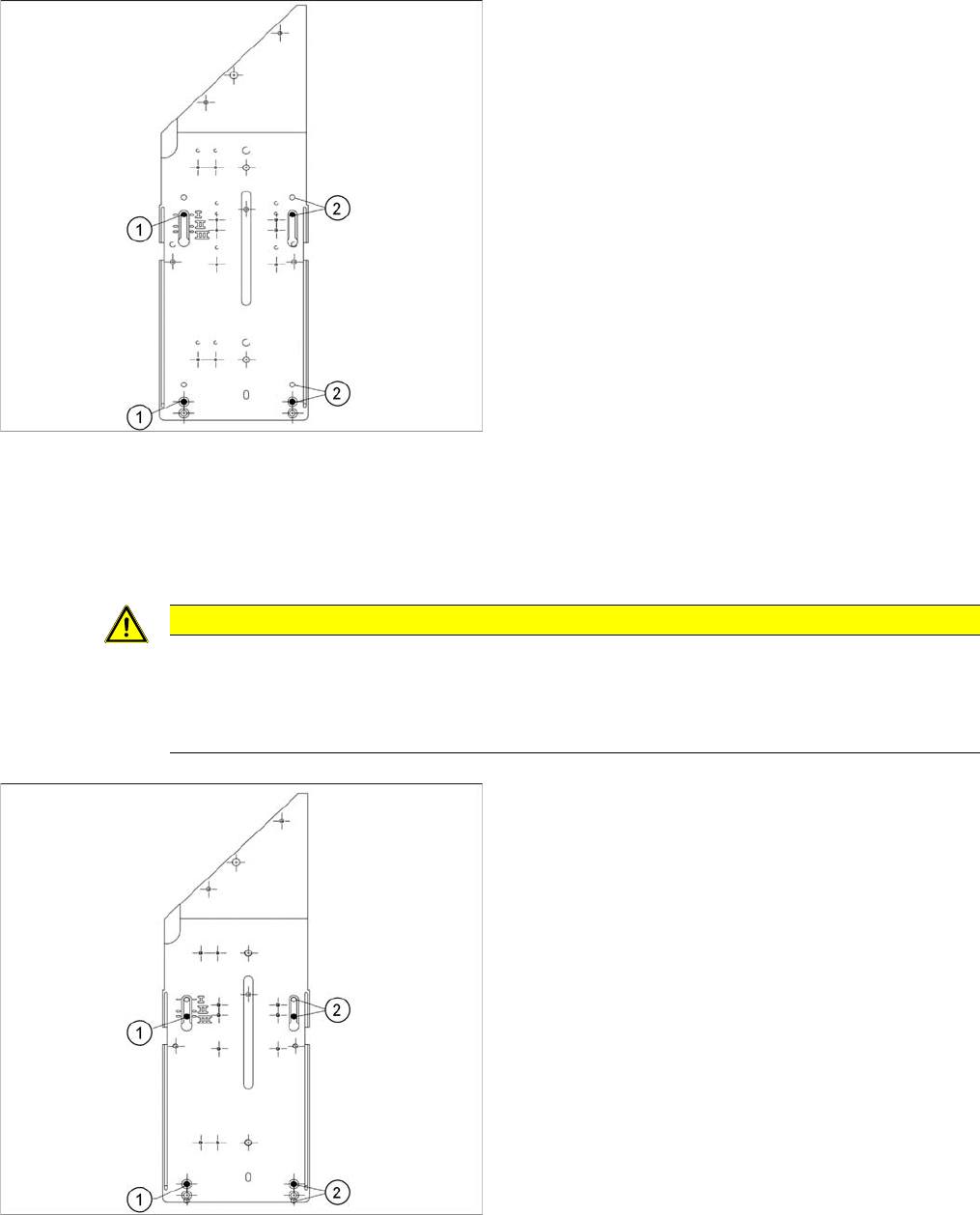

1. Screw
2. Thread in the machine frame
Position I has to be used in the following cases:
▪ D series: always
▪ SX series: always
▪ X series: If at least one DLM or CPP head is used in
the corresponding placement area.
CAUTION
Danger of head crash
An incorrect installation height can result in a head crash!
If the camera is fitted at this height, only the TwinHead will be permitted for this placement area.
There is a risk of head crash otherwise!
If you are only using a TwinHead in this placement area,
fit the camera in the top position. This equates to position
III.
This installation position allows the movement of the Z
axis during component measurement to be omitted for
TwinHead operation, achieving higher placement perfor-
mance.
1. Screw
2. Thread in the machine frame
Position III must be used in the following cases:
▪ D series: never
▪ SX series: never
▪ X series: If solely TwinHeads are used in the corre-
sponding placement area.
