Anhang Stroml aufpläne D1 Ab Maschinen Serien-Nr. B326 88 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36

Anhang

Ab Maschinen Serien-Nr. B326 Stromlaufpläne D1

Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 87

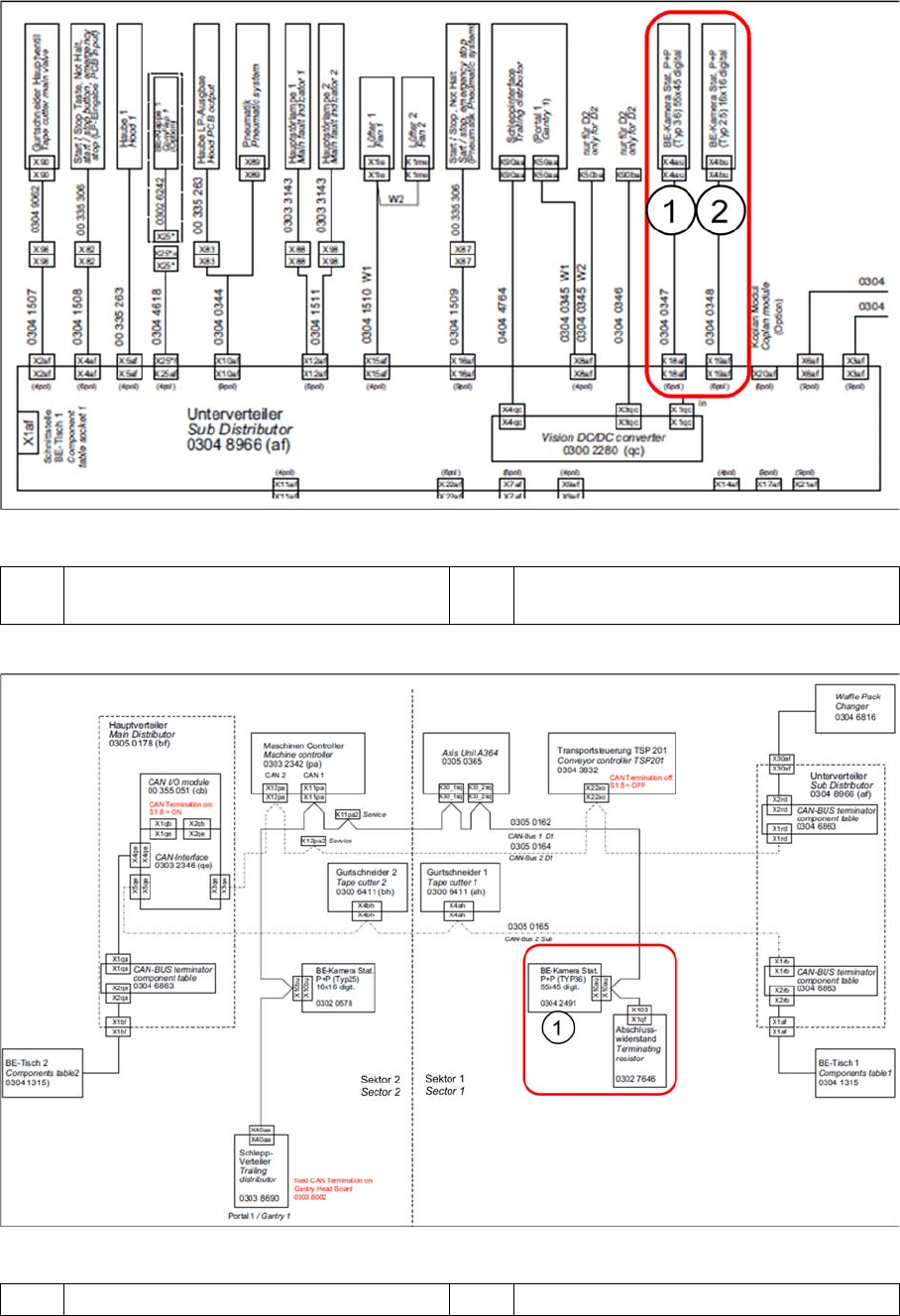

Kamera Power (D1)

Kamera-CAN-Bus (D1)

1 Kabel: Spannungen IC-Kamera

[03040347-xx] zum Unterverteiler X18af

2 Kabel: Spannungen FC-Kamera

[03040347-xx] zum Unterverteiler X19af

1 CAN-Bus-Kabel an IC-Kamera X10au

Anhang

Stromlaufpläne D1 Ab Maschinen Serien-Nr. B326

88 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36

Introduction

Conventions for the Use of Safety Instructions Safety Instructions

Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 89

1Introduction

This manual describes the installation of the stationary camera, types 33 and 36 in SIPLACE® X series,

SX series, D3 and D1 machines.

1.1 Safety Instructions

1.1.1 Conventions for the Use of Safety Instructions

This manual contains notes that must be observed to guarantee your personal safety and to avoid dam-

age to equipment. These notes are highlighted by warning triangles and are indicated as follows accord-

ing to the level of risk:

DANGER

Nonobservance of these safety instructions may cause injury to personnel and damage to the

machine!

► Please observe the safety instructions in the user manual of the relevant machine for all

work!

DANGER

Definition

For the purposes of this manual, this indicates that fatal or severe injuries or considerable dam-

age to property will occur if this hazard warning is not observed.

WARNING

Definition

For the purposes of this manual, this indicates that fatal or severe injuries or considerable dam-

age to equipment may occur if these warning instructions are not followed.

CAUTION

Definition

For the purposes of this manual, this indicates that minor injuries or damage to property may

occur if this caution is not observed.

NOTICE

Definition

For the purposes of this manual, this note provides information about the product or indicates

a part of the manual that requires particular attention.
