Appendix Circuit Diagrams D1 From Machine Series No. B326 168 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/ 36 4.7 Cir cuit Diagrams D1 Camera bus (D1) 1 I C camera (t ype 36 or typ e 33) X3au 4 Cable: camera bu…

Appendix

From Machine Series No. B326 Circuit Diagrams SX4

Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 167

1 IC camera 2 FC camera

3 Camera bus cable IC/FC camera

[03077048-xx] location 2 to hotlink card

Cam 2 (X2) control computer

4 Camera bus cable IC/FC camera

[03077049-xx] location 3 to hotlink card Cam

3 (X3) control computer

5 Hotlink card control computer 6 Cable IC/FC camera voltages [03076478-

W1] location 2 to subdistributor X7qa

7 Cable IC/FC camera voltages [03076478-

W2] location 3 to subdistributor X7qa

8 Subdistributor X7qa voltage stationary cam-

era

9 CAN bus X10cm sector 3 (only for direct

connection of IC camera)

10 CAN bus X10bm sector 2 (only for direct

connection of IC camera)

11 Cable: Extension camera bus IC/FC cam-

era [03055279-xx]

Only for IC and FC camera at one location

12 Cable: Extension camera bus IC/FC camera

[03055279-xx]

Only for IC and FC camera at one location

13 Cable: Extension power FC camera

[03055298-xx]

Only for IC and FC camera at one location

14 Cable MCAN-Bus2.2 [03076505-xx] from

docking unit 2 X125So

Only for IC and FC camera at location 2

15 Connector X125 CAN in on COT insert

[03076504-xx] from docking unit 2 X125So

Only for IC and FC camera at location 2

16 CAN bus: IC and FC camera

[03050550-xx]

Only for IC and FC camera at one location

17 Cable: MCAN-Bus2.3 [03076506-xx] from

docking unit 3 X135So

Only for IC and FC camera at location 3

18 Connector X135 CAN in on COT insert

[03076504-xx] from docking unit 3 X135So

Only for IC and FC camera at location 3

Appendix

Circuit Diagrams D1 From Machine Series No. B326

168 Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36

4.7 Circuit Diagrams D1

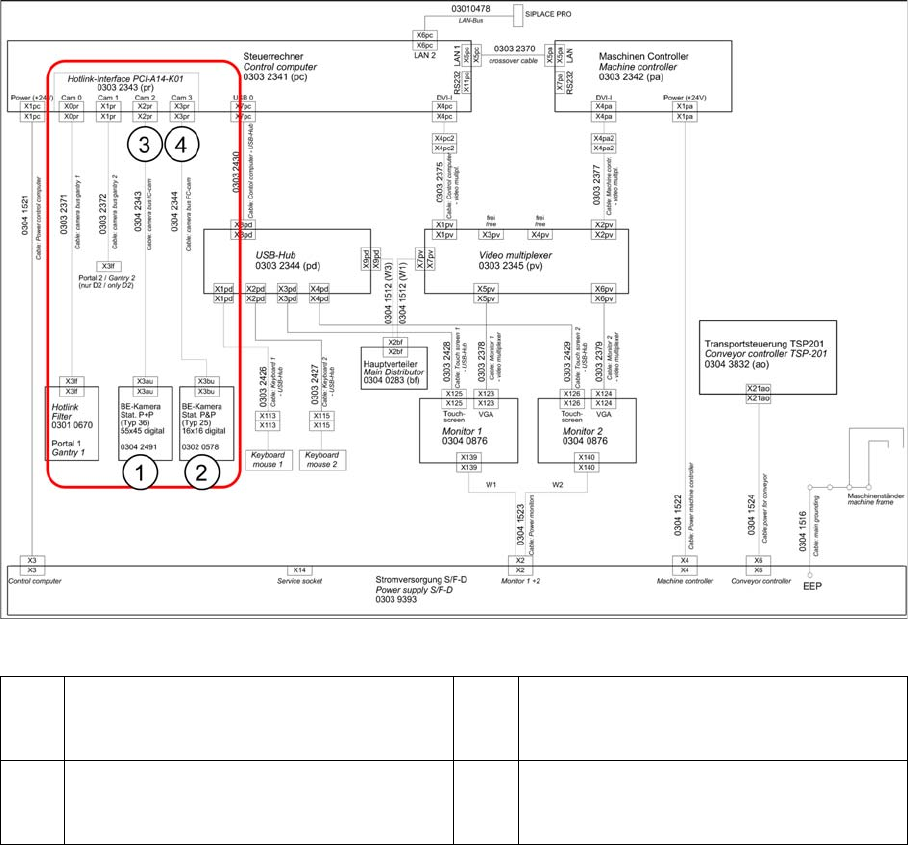

Camera bus (D1)

1 IC camera (type 36 or type 33) X3au 4 Cable: camera bus IC camera

[03042343-xx] to hotlink card Cam 2 (X2)

BoxPC (control computer)

2 FC camera (type 25) X3au 5 Cable: camera bus FC camera

[03042344-xx] to hotlink card Cam 3 (X3)

BoxPC (control computer)

Appendix

From Machine Series No. B326 Circuit Diagrams D1

Stationary Camera Type 33/36 Stationäre Kamera Typ 33/36 169

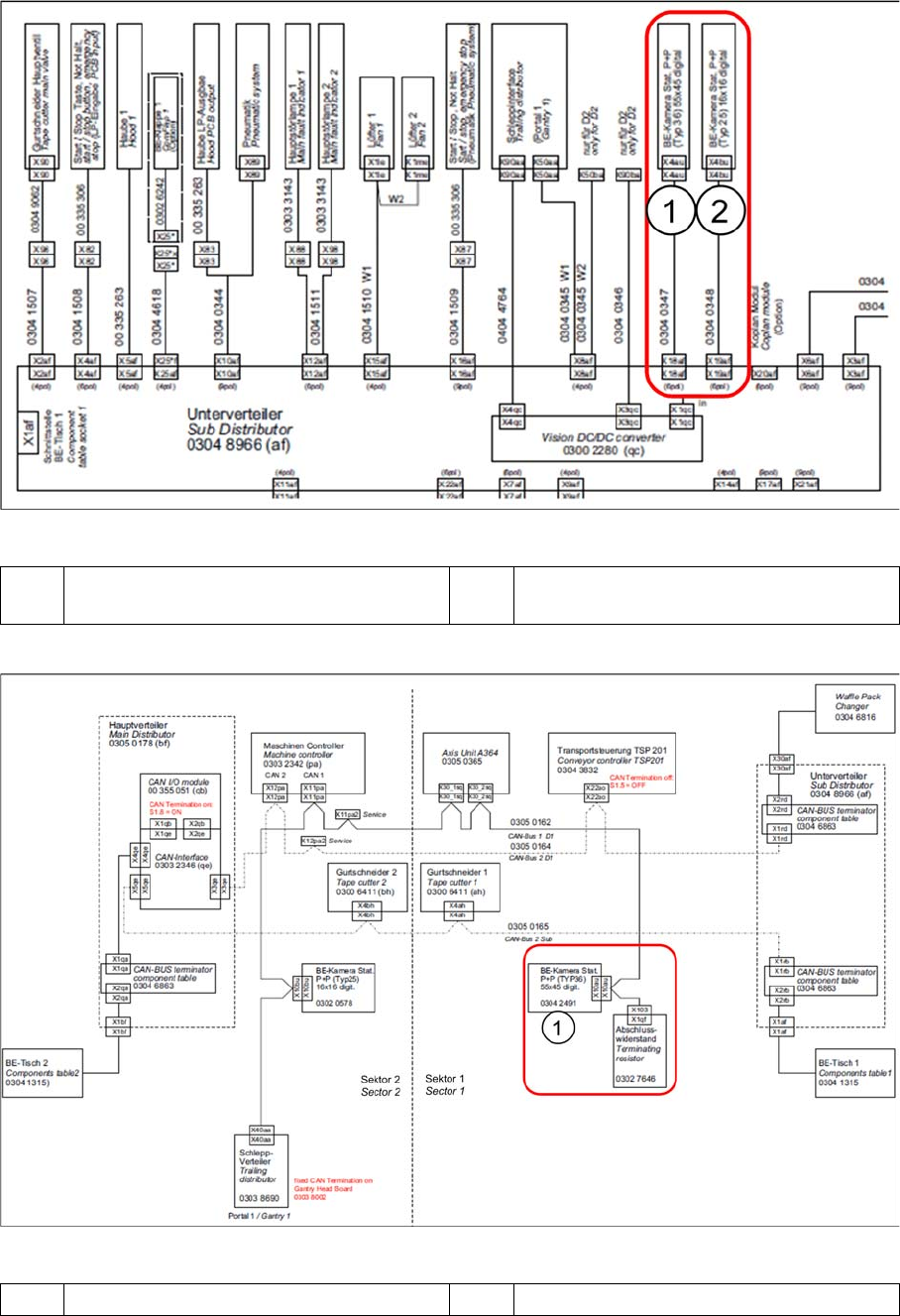

Camera power (D1)

Camera CAN bus (D1)

1 Cable: IC camera voltages [03040347-xx]

to subdistributor X18af

2 Cable: FC camera voltages [03040347-xx]

to subdistributor X19af

1 Cable CAN bus to IC camera X10au
