3 Installation 3.5 Installing the vacuum pump Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 145 Fig.29: Vacuum pump without double nipple ► Insert the double nipp…
3 Installation
3.5 Installing the vacuum pump
144 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021

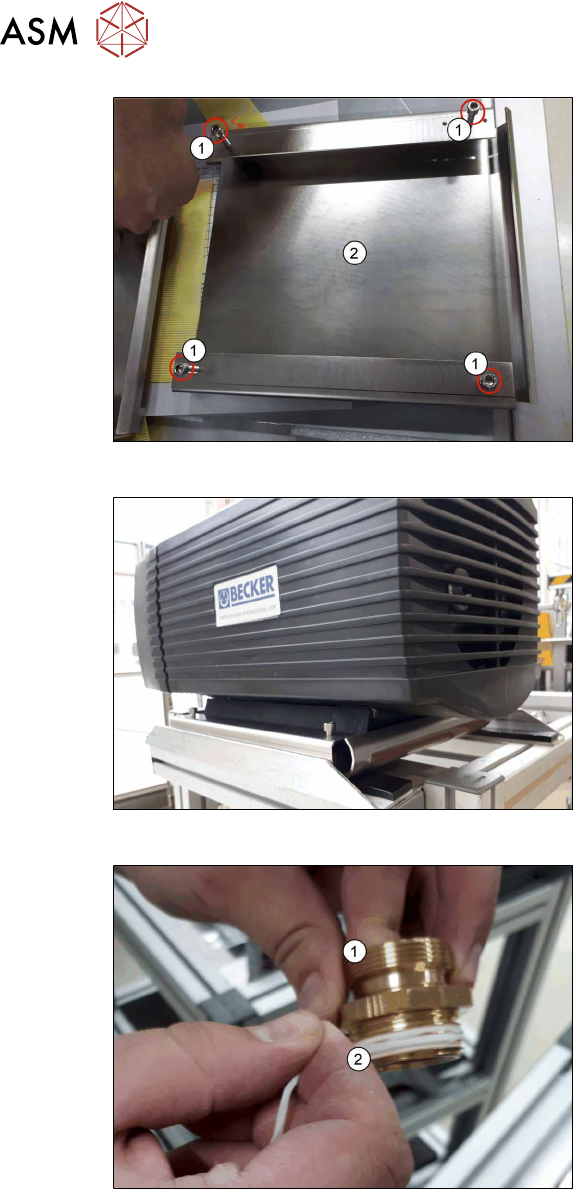

Fig.26: Support sheet for the vacuum pump
► Push the vacuum pump into the sup-
port sheet(2)
.
► Screw the vacuum pump to the support
sheet with the four screws(1)
.
Fig.27: Fixed vacuum pump
Vacuum pump fixed to the support sheet
with screws.
Fig.28: Double nipple with Teflon tape
► Seal the double nipple (1) with Teflon
tape Loctite 55(2)
.
3 Installation
3.5 Installing the vacuum pump
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 145

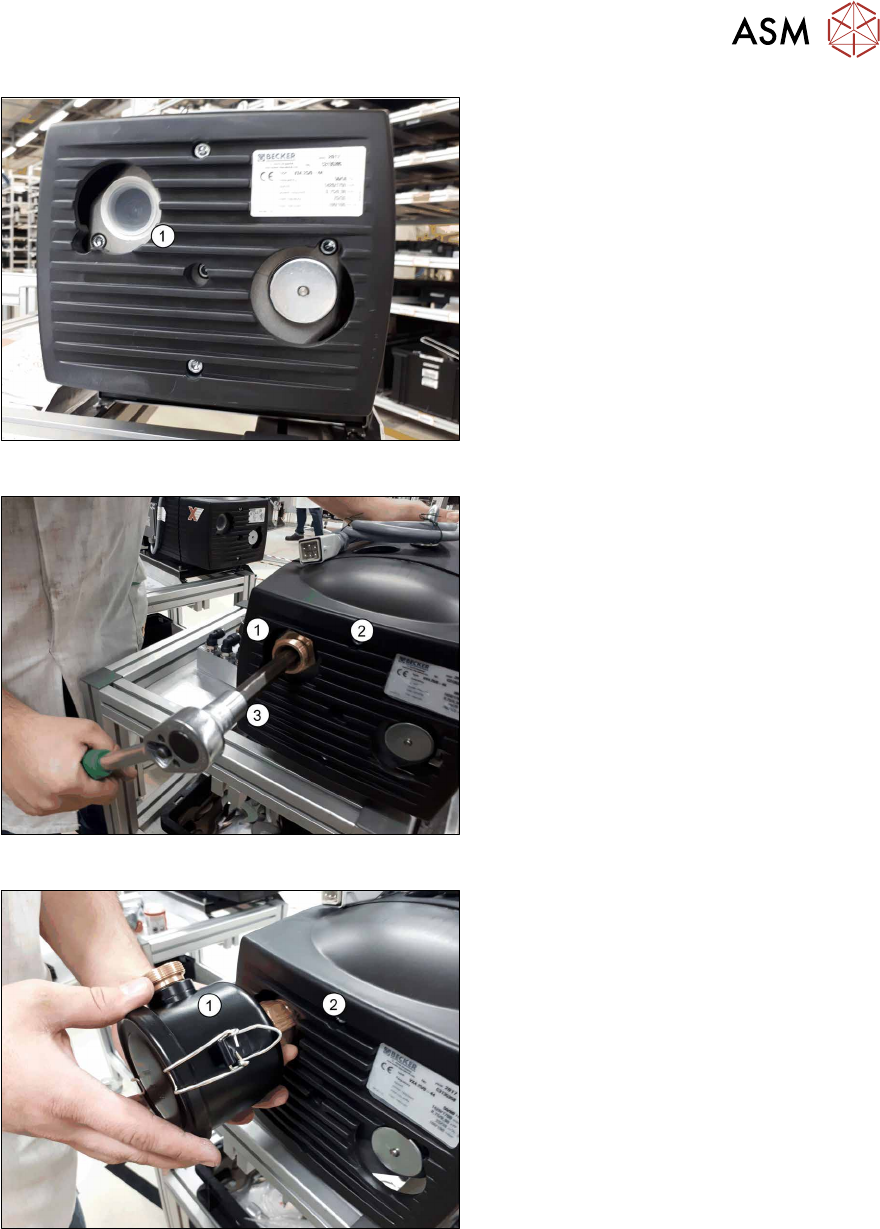

Fig.29: Vacuum pump without double nipple
► Insert the double nipple into the
vacuum pump (1)
.
Fig.30: Screwing the double nipple into place
► Screw the double nipple(1) to the
vacuum pump(2)
using the ratchet(3).
Fig.31: Screwing the filter into place
► Screw the filter(1) to the double
nipple(2)
. Make sure that the connec-
tion of the filter points towards the top
left in a slanted direction.
3 Installation
3.5 Installing the vacuum pump
146 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
3.5.1.2 Preparing the vacuum pump (new)
Fig.32: Condition upon delivery
Vacuum pump as delivered
Fig.33: Rubber feet and protective cap
► Dismantle the four rubber feet(1).
► Remove the protective cap(2).
Fig.34: Support plate
► Fit the "support plate for vacuum pump
" [03217727‑xx].
To fix it, use:
4x screws M5x10 [03042560‑xx]
4x washers M5 [03064970‑xx].
