7.4.6.2 Replacing the silencer (Venturi mode only)
Parts
03043707-xx Silencer
Overview
Fig.118: Silencer (example of SIPLACE C&P20A shown)
1. Silencer on holding circuit
2. Fastening screw
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
CAUTION
Camera
► Make sure that you do not damage or contaminate the camera lens system.
► Make sure that the component sensor protective cap is fitted.
Removal
► Remove the screw fastening the silencer.
► Carefully lever out the silencer.
Installation
► Follow the removal instructions in reverse order for further installation. Also observe the fol-
lowing instructions:
CAUTION
Installation instructions
► Carefully press the new silencer down, onto the holding circuit.
► Carefully hand-tighten the screw fastening the silencer.
7 Appendix
7.4 Excerpts from the service manual
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 201
7.4.7 SIPLACE C&P20 P2
7.4.7.1 Replacing the aperture ring/holding circuit/sealing disc
Parts – vacuum operation

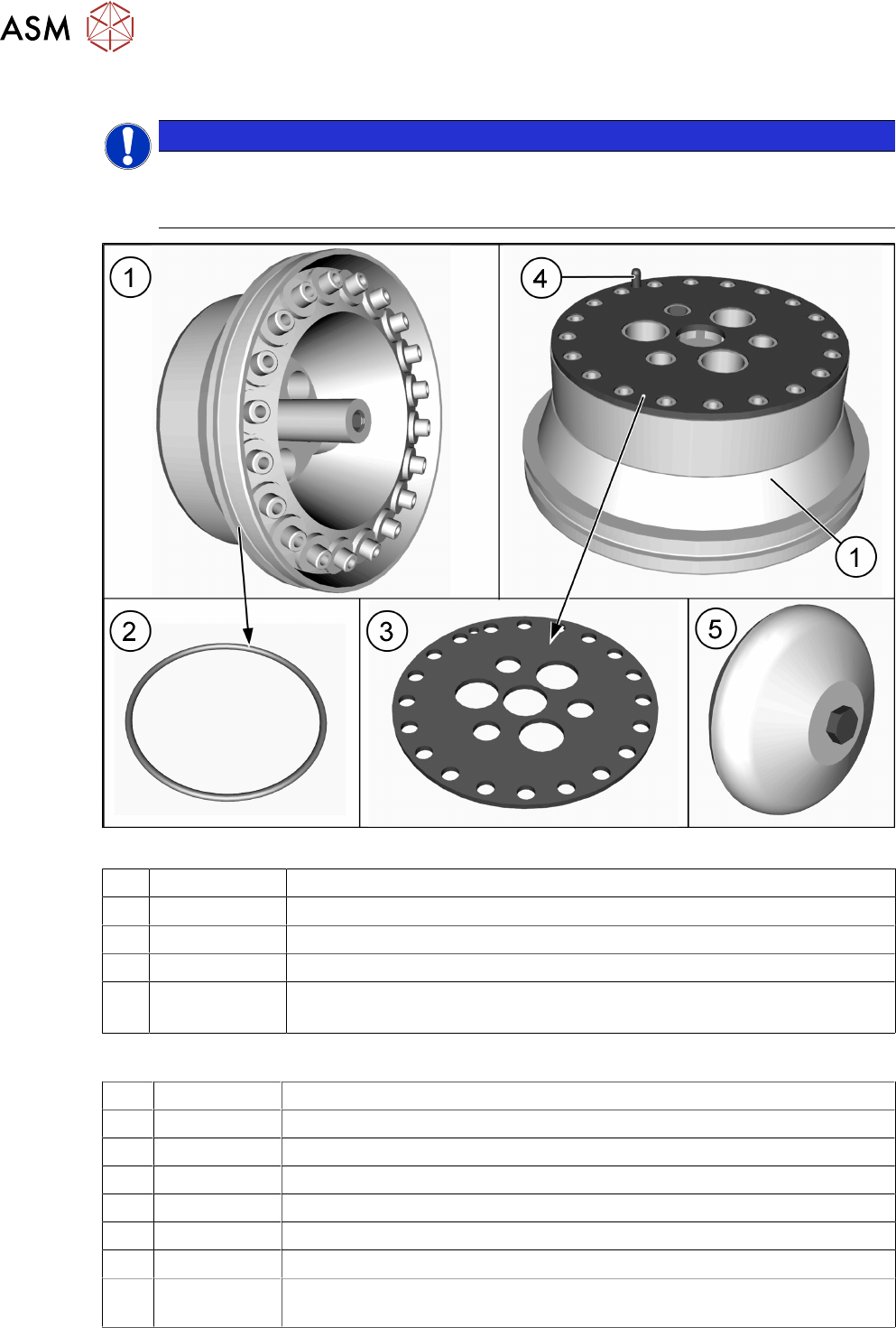

Fig.119: Aperture ring
1 03165750-xx Aperture ring assembly SIPLACE C&P20 P2 (including sealing disc and
cover)
2 03006234-xx O-Ring 40x1.5
3 03105638-xx Sealing disc C&P20P
4 --- Pins
5 --- Groove: this groove shows the position of the pin (4) for easier installation.
6 03165754-xx Cover assembly C&P20 P2
03110132‑xx Sealing gasket M4 (for cover)
7 Appendix
7.4 Excerpts from the service manual
202 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
Parts – compressed air operation
NOTICE
The SIPLACE C&P20P2 with compressed air mode had not been released by the time this
document was published.
► Contact the SIPLACE Service team for details.

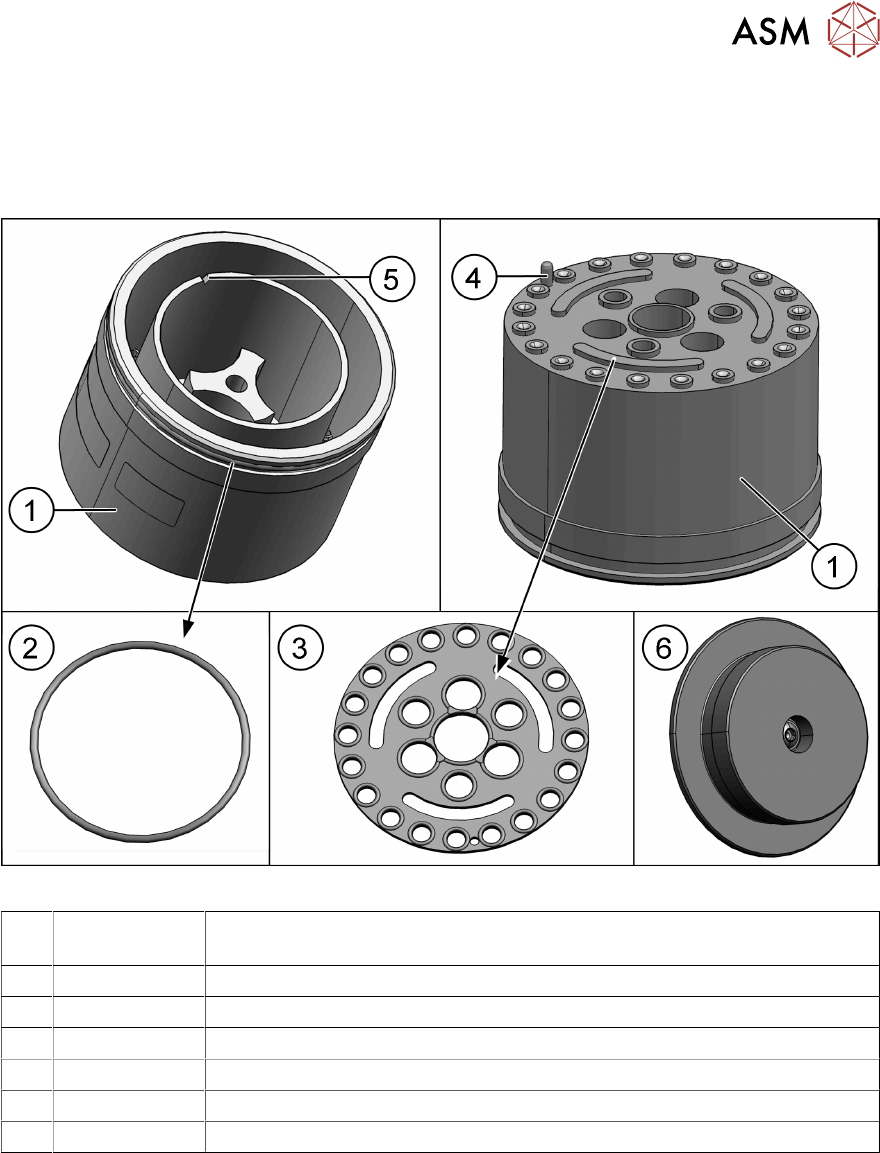

Fig.120: Holding circuit
1 03005123Sxx Holding circuit - vacuum unit
2 03046689-xx O-ring 50x1.5
3 03005120-xx Sealing disc for SIPLACE C&P20
4 --- Pins
5 03043707-xx Silencer assembly C&P20
See: 7.4.7.2 "Replacing the silencer (venturi mode only)" [}206]
Equipment and tools
T07 03078400-xx Torque Screwdriver ESD 1.0-5.0 Nm
T78 03090019-xx Torque interchangeable blades 2.5 mm, hexagonal
T98 03171857-xx Torque Allen swap blade 1.5 mm TX10
C03 03082092-xx Cleaning Wipe, KM-Wipe
C05 --- Isopropanol
C06 00352931-xx SIPLACE clean sticks
C11 03078517-xx ISOFLEX Topas 5051 50ml
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
