3 Installation 3.5 Installing the vacuum pump Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 147 Fig.35: Interface plate ► Fit the "interface plate for vacuum…
3 Installation
3.5 Installing the vacuum pump
146 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021

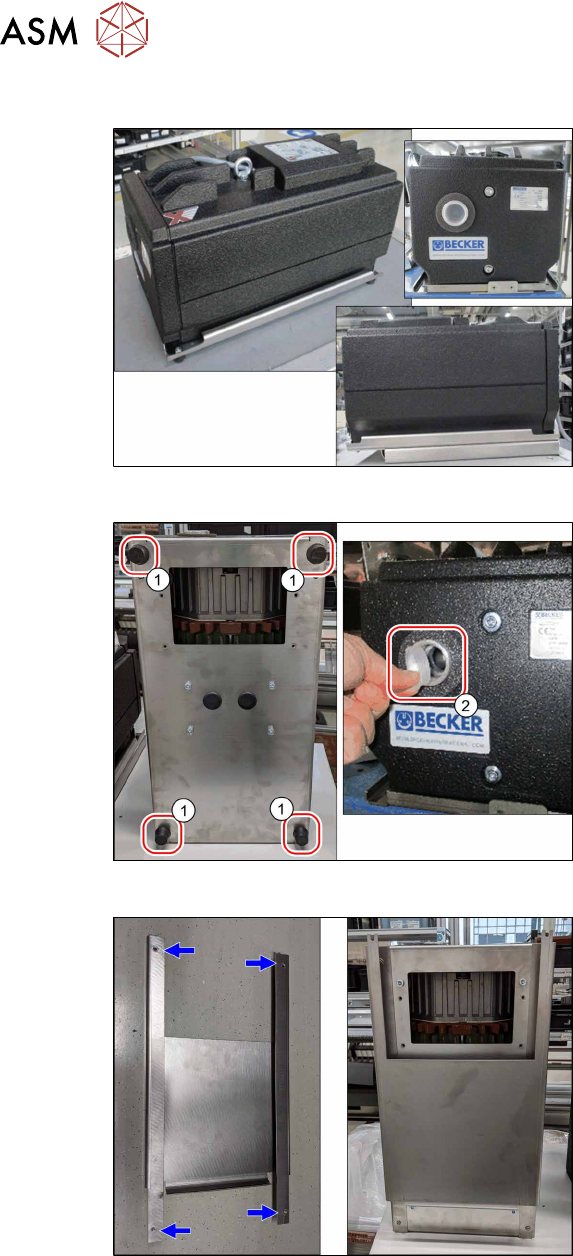

3.5.1.2 Preparing the vacuum pump (new)
Fig.32: Condition upon delivery
Vacuum pump as delivered
Fig.33: Rubber feet and protective cap
► Dismantle the four rubber feet(1).
► Remove the protective cap(2).
Fig.34: Support plate
► Fit the "support plate for vacuum pump
" [03217727‑xx].
To fix it, use:
4x screws M5x10 [03042560‑xx]
4x washers M5 [03064970‑xx].
3 Installation
3.5 Installing the vacuum pump
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 147

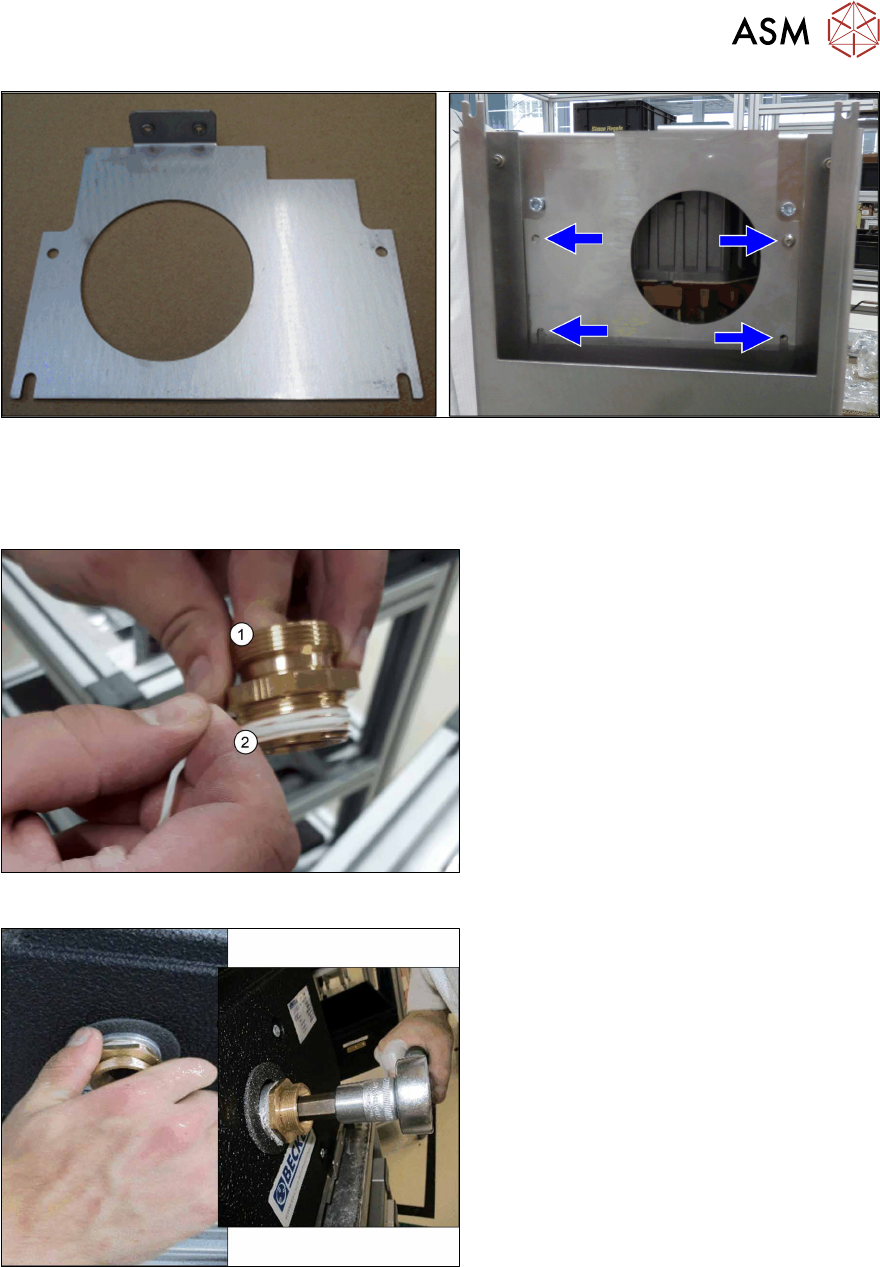

Fig.35: Interface plate
► Fit the "interface plate for vacuum pump" [03223382‑xx] and fix with four screws M5x10
[03042560‑xx].
Fig.36: Double nipple with Teflon tape
► Seal the double threaded nipple(1)
with Teflon tape Loctite 55(2).
Fig.37: Double threaded nipple
► Rotate the double threaded nipple in
the vacuum pump and then tighten this.
3 Installation
3.5 Installing the vacuum pump
148 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021

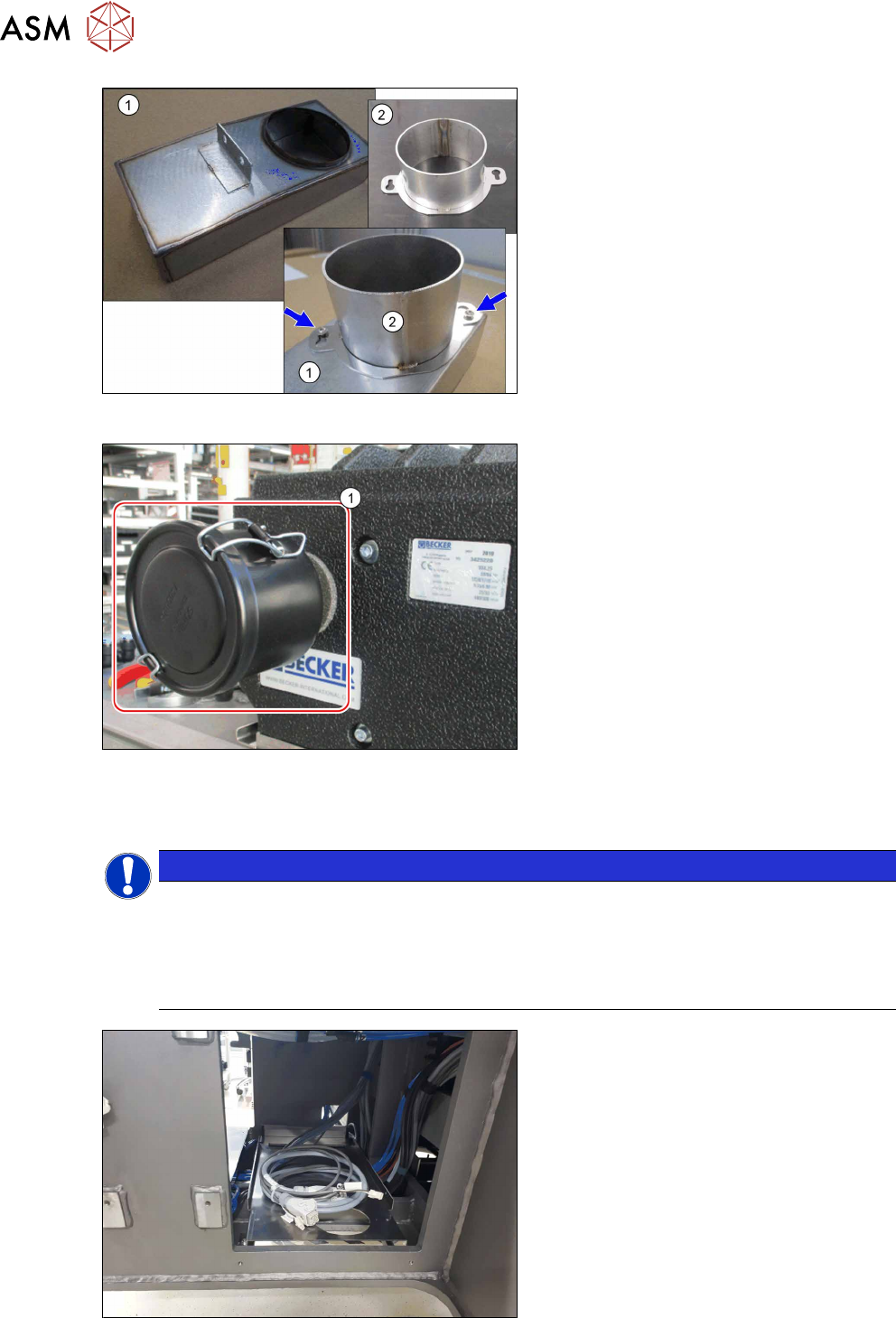

Fig.38: Exhaust duct and flange plate
► Fit the flange plate(2) [03217701‑xx]
on the exhaust duct(1)
[03223353‑xx].
Use two screws for this [03028942‑xx]
(M4x10).
Fig.39: Filter
► Screw the filter(1) onto the vacuum
pump.
Make sure that the side connection
points diagonally to the top left, when
screwed into place.
3.5.2 Installation locations of the vacuum pump
NOTICE
Installation locations
The vacuum pumps are fitted in placement area 1, at locations 1 and 4.
If only one vacuum pump is fitted, this is installed at location 4.
► In X Series S machines, the vacuum pump at location 4 supplies placement area 1
and the vacuum pump at location 1 supplies placement area 2.
Fig.40: Vacuum pump installation location
Installation location of the vacuum pump
with connection cables for the vacuum pump
and the fan.
