7 Appendix 7.4 Excerpts from the service manual 194 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 7.4.6 SIPLACE C&P20 A/M/P 7.4.6.1 Replacing the holding circu…
7 Appendix
7.4 Excerpts from the service manual
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 193
7.4.5 Replacing the waste tape slide
Parts, equipment and tools
●
Used tape chute complete [03067460-xx]
●
Allen key set
Overview
Fig.105: Waste tape slide
1 Waste tape slide 2 COT insert
3 Fastening screw for used tape chute, left 4 Fastening screw for used tape chute,
right
Removal
► Remove the screws fastening the used tape chute.
► Take the used tape chute down and out of the machine.
CAUTION
Risk of cutting
The cutter is located under the tape channel. The blades there have very sharp edges.
► Do not reach into the cutter and make sure that it is never freely accessible.
Installation
► Follow the removal instructions in reverse order for installation.
7 Appendix
7.4 Excerpts from the service manual
194 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
7.4.6 SIPLACE C&P20 A/M/P
7.4.6.1 Replacing the holding circuit/aperture ring
NOTICE
Description example
The replacement of the holding circuit (Venturi mode) and aperture ring (vacuum pump
mode) is identical. The following section describes the replacement, using the example of
the aperture ring. Any relevant differences will be mentioned explicitly.
Parts
●
Holding circuit vacuum unit [03005123Sxx]
or
Orifice plate complete for SIPLACE C&P20P [03116883Sxx] (replaces:[03108716‑xx])
●
O-ring, if needed:
Vacuum mode (aperture ring): O-ring 40x1.5 [03006234-xx]
Compressed air mode (holding circuit): O-ring 50x1.5 [03046689-xx]
Overview

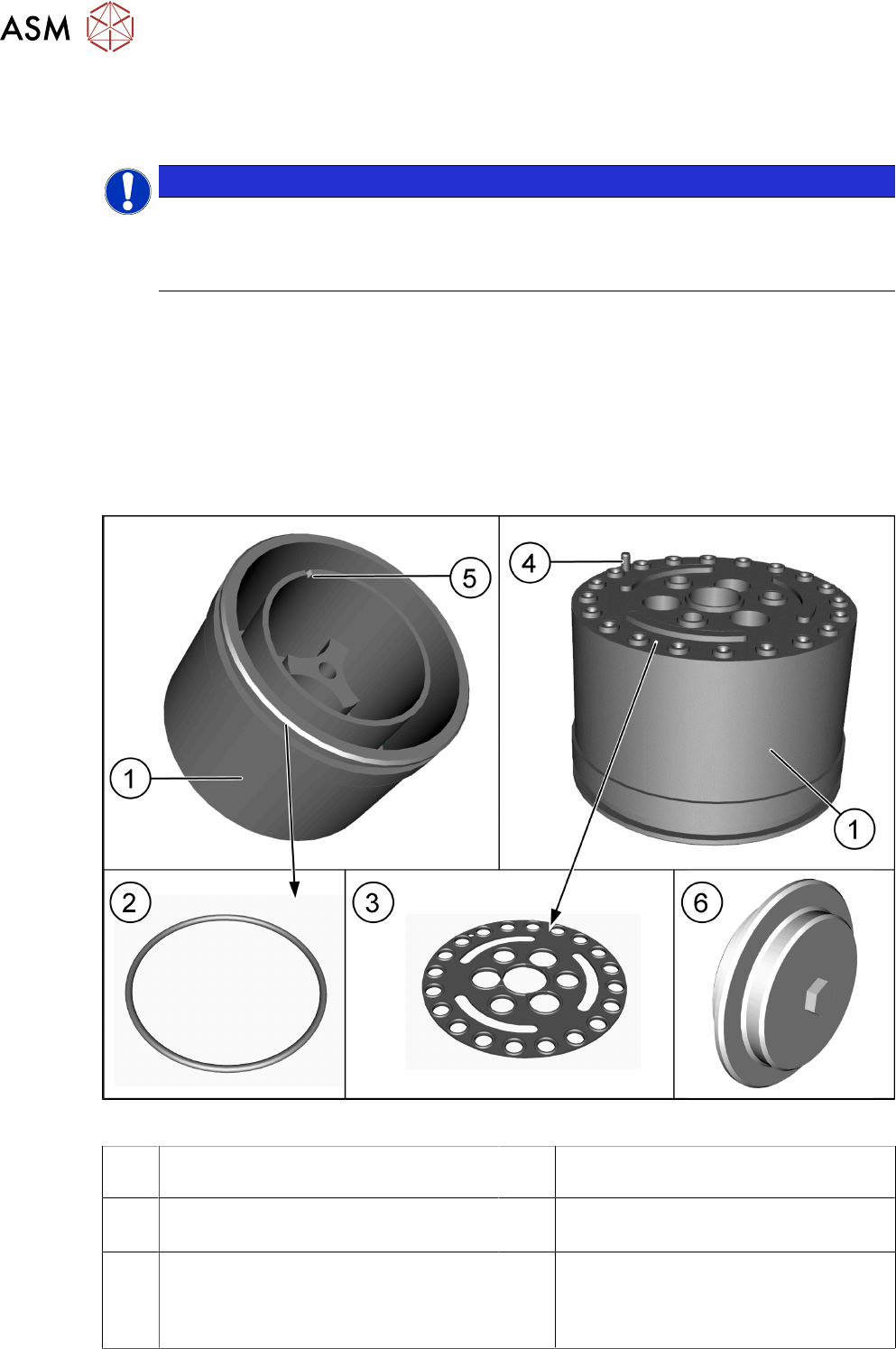

Fig.106: Aperture ring
1 Orifice plate, preassembled for
SIPLACE C&P20P [03116952‑xx])
2 O-ring [03006234-xx]
3 Sealing disc for SIPLACE C&P20P
[03105638-xx]
4 Pins
The pin is located at segment 16
5 Groove – this groove shows the position
of the pin (4)
for easier installation.
6 Cover assembly for SIPLACE C&P20P
[03116882‑xx]
Not shown: sealing gasket U - M4 (for
cover) [03110132‑xx]
7 Appendix
7.4 Excerpts from the service manual
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 195
Fig.107: Hold circuit
1 Hold circuit
(Holding circuit vacuum unit
[03005123Sxx])
2 O-Ring [03046689‑xx]
3 Sealing disc [03005120-xx] 4 Pins
5 Silencer
