7 Appendix
7.2 Circuit Diagrams
182 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
7.2.4.3 Vacuum pump connection (new)
Fig.86: Vacuum pump connection (excerpt)
7 Appendix
7.3 Error message: 30356 Vacuum in holding circuit too low
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 183
7.3 Error message: 30356 Vacuum in holding circuit too low
Error / problem
Error message 30356 Vacuum in holding circuit too low
On machines of the SIPLACE X-Series S with vacuum pump, the additional vacuum tube on the
gantry can rupture.
Cause of Hazard
If the gantry with the placement head moves to the inner position very often, the tube is slightly fol-
ded at the interface to the gantry. In the long run, this can cause a rupture of the vacuum tube.

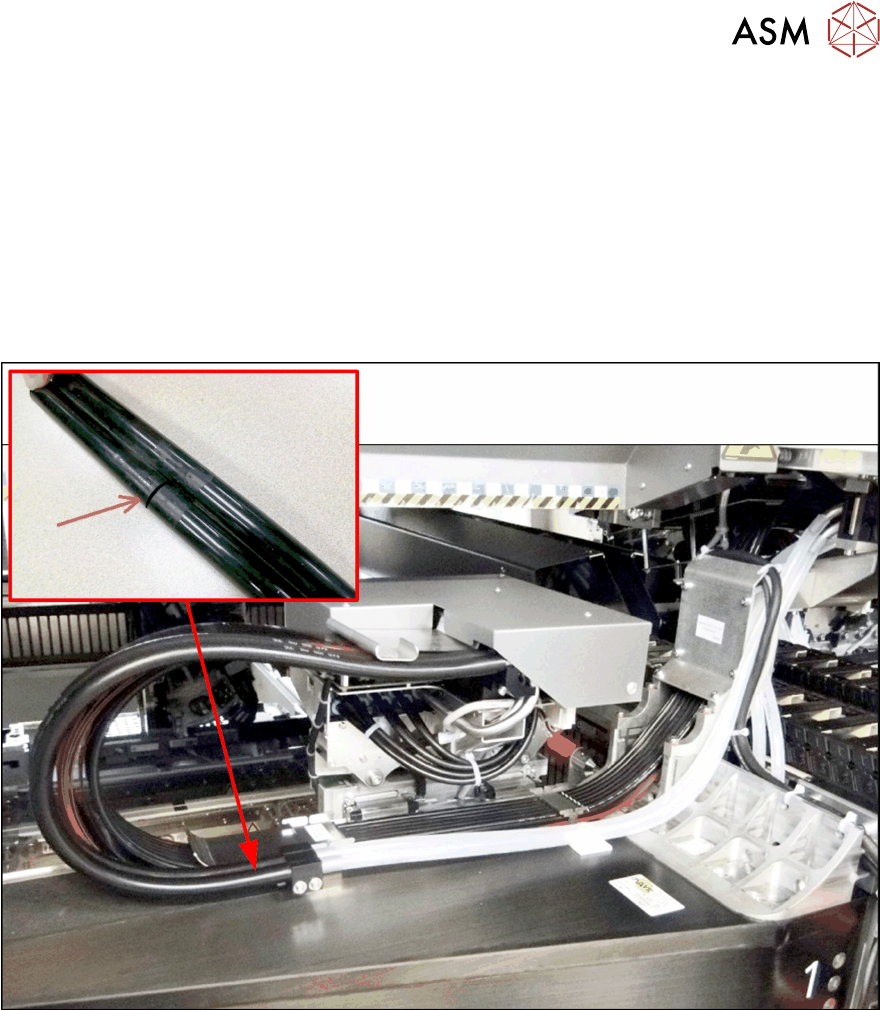

Fig.87: Rupture on a vacuum tube (old duo tube [03075472‑xx])
7 Appendix
7.3 Error message: 30356 Vacuum in holding circuit too low
184 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
Solution
A "replacement kit vacuum tubing" [03123134‑xx] is available:

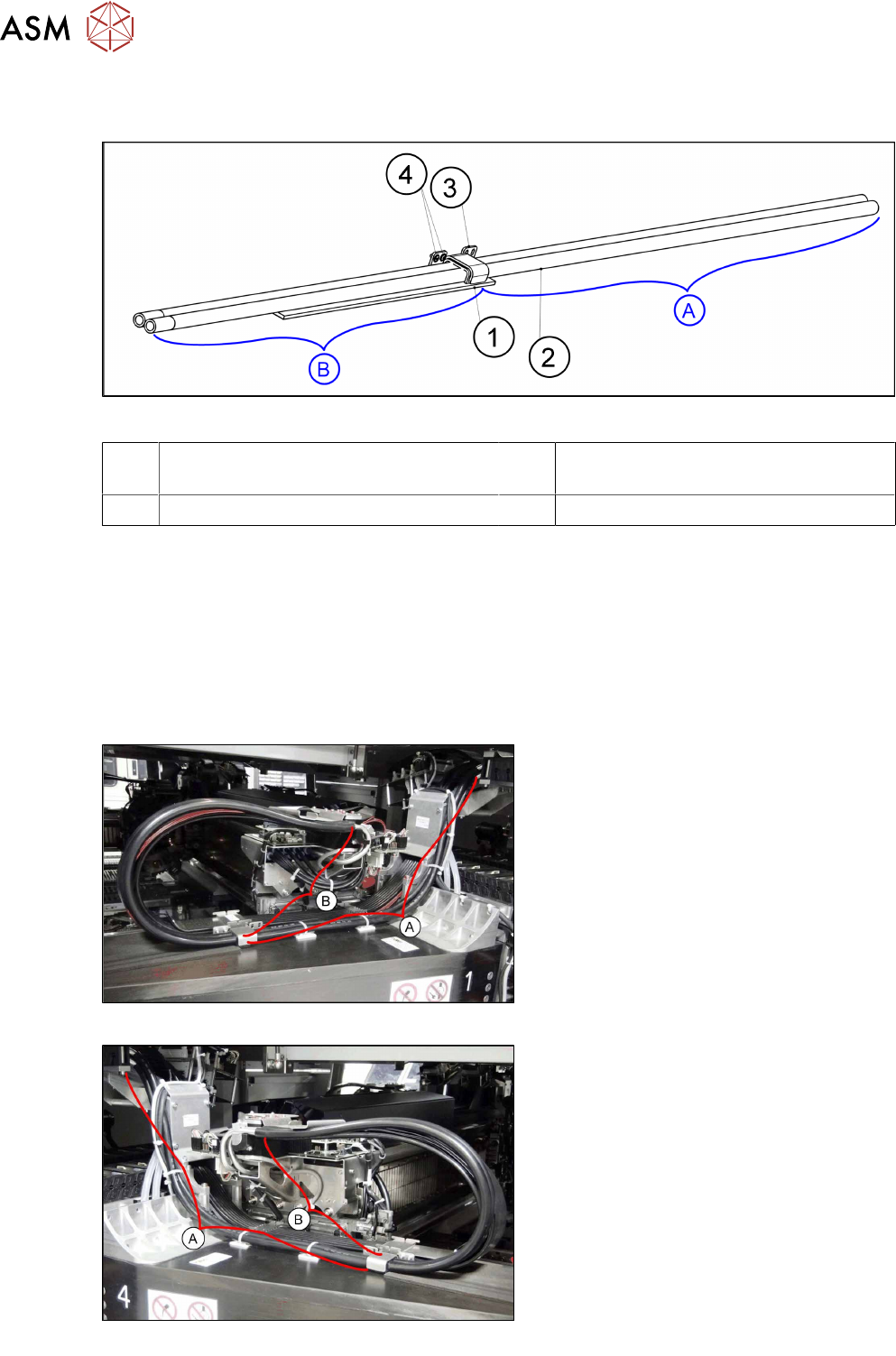

Fig.88: Replacement kit vacuum tubing [03123134‑xx]
1 1x foam rubber with adhesive tape
(attached to the gantry)
2 1x duo tube
3 1x Stabilizer damped 4 2x ISO7380-2-M3x6-A2-70
You need the following tools for the replacement:
●
Set of Allen keys
●
Set of torx screwdrivers
●
Snipe nose pliers straight, Festo ZRS [00381443‑xx]
●
3x Cable ties
●
2x Glue clamps
Overview of gantries
Fig.89: Standard gantry
X-Series S: Gantry 1, 2, 3, 4
X4iS: Gantry 1, 3
X series, D3: Gantry 1, 2, 3, 4
SX4/DX4: Gantry 1, 2, 3, 4
X4i Gantry 1, 3
Fig.90: Rotated gantry
X4iS: Gantry 2, 4
X4i: Gantry 2, 4
