3 Installation 3.5 Installing the vacuum pump Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 149 3.5.3 110 V (120 V) option The vacuum pump must be converted when t…
3 Installation
3.5 Installing the vacuum pump
148 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
Fig.38: Exhaust duct and flange plate
► Fit the flange plate(2) [03217701‑xx]
on the exhaust duct(1)
[03223353‑xx].
Use two screws for this [03028942‑xx]
(M4x10).
Fig.39: Filter
► Screw the filter(1) onto the vacuum
pump.
Make sure that the side connection
points diagonally to the top left, when
screwed into place.
3.5.2 Installation locations of the vacuum pump
NOTICE
Installation locations
The vacuum pumps are fitted in placement area 1, at locations 1 and 4.
If only one vacuum pump is fitted, this is installed at location 4.
► In X Series S machines, the vacuum pump at location 4 supplies placement area 1
and the vacuum pump at location 1 supplies placement area 2.
Fig.40: Vacuum pump installation location
Installation location of the vacuum pump
with connection cables for the vacuum pump
and the fan.
3 Installation
3.5 Installing the vacuum pump
Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021 149
3.5.3 110 V (120 V) option
The vacuum pump must be converted when the 110 V (120 V) option is fitted.
Refer also to the assembly instructions:
●
Assembly instructions for "SIPLACE X-Series S, SX4/DX4, Power Supply Conversion"
110V" [00197211‑xx]
► Check the settings and correct where necessary.

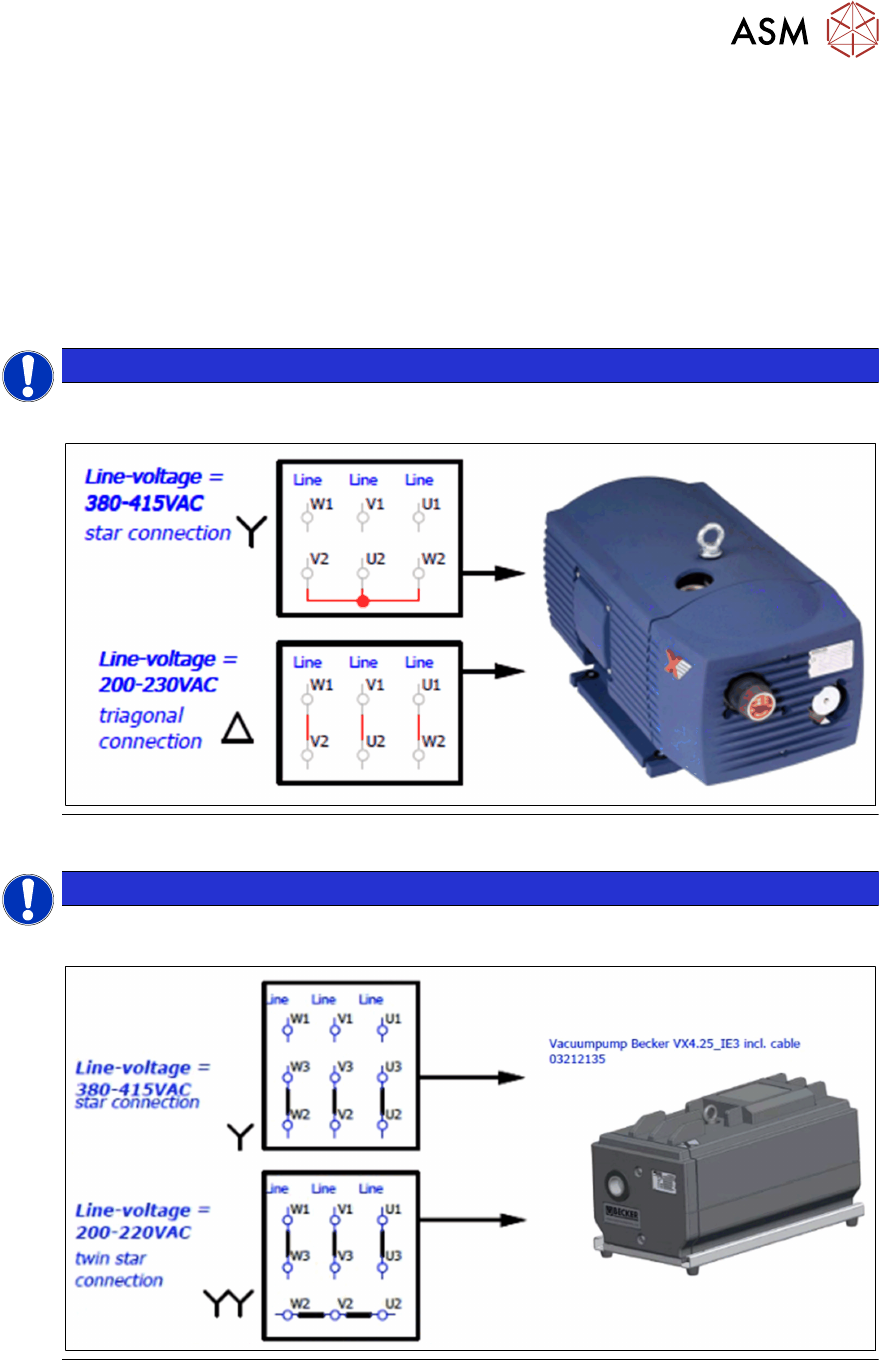

NOTICE
Old vacuum pump
An old vacuum pump must be set as follows:
NOTICE
New vacuum pump
A new vacuum pump must be set as follows:
Also refer to the corresponding hint on the cable of the 110V transformer in the machine frame.
3 Installation
3.5 Installing the vacuum pump
150 Assembly Instructions / Montageanleitung SIPLACE X-Series S (from/ab Hxxxx) Option Vacuum Pump 02/2021
3.5.4 Running the supply cable
Fig.41: Vacuum pump control (example of version for new
vacuum pump shown)
1. Vacuum pump cable connections on
the vacuum pump control in the power
supply
Fig.42: Supply cable at location 2
1. Pump cable (one or two, depending on
how many pumps are fitted)
2. Fan cable
► Run the following connections of the power cable [03114819‑xx] for vacuum pump1 (PA1) to
location4 (see below):
– W1 X4qr
– W3 X1FANVP1
► Run the following connections of the power cable [03114819‑xx] for vacuum pump2 (PA2) to
location1 (see below):
– W2 X5qr
– W4 X1FANVP2
NOTICE
Bridging plug
If only one vacuum pump is connected, a bridging plug must be plugged onto the other
cable for the vacuum pump.
► Bridging plug vacuum pump connection [03055299‑xx]
