Service Manual Internal WPC5 / WPC6
Page 3-106
3.7.15 Sensor 15 NSM-Modul (WPC6) – Safety flap open
Spare Part
• Sensor safety flap open [03056958-xx]
Removal / Installation
➢ Remove the cover on the load unit (see "3.5.1.1 Remove the Cover on the Load Unit"
[➙ 3-33]).
➢
Loosen the screws marked at 1 to 4
and lift off the cover.
➢ Disconnect connector X3 for the
safety flap when open from the
circuit board.
Service Manual Internal WPC5 / WPC6
Page 3-107
➢ Fit the cover back on the loading unit and screw tight.
See also...
@
3.5.2
Replace the Load Axis Drive Motor [➙ 3-35]

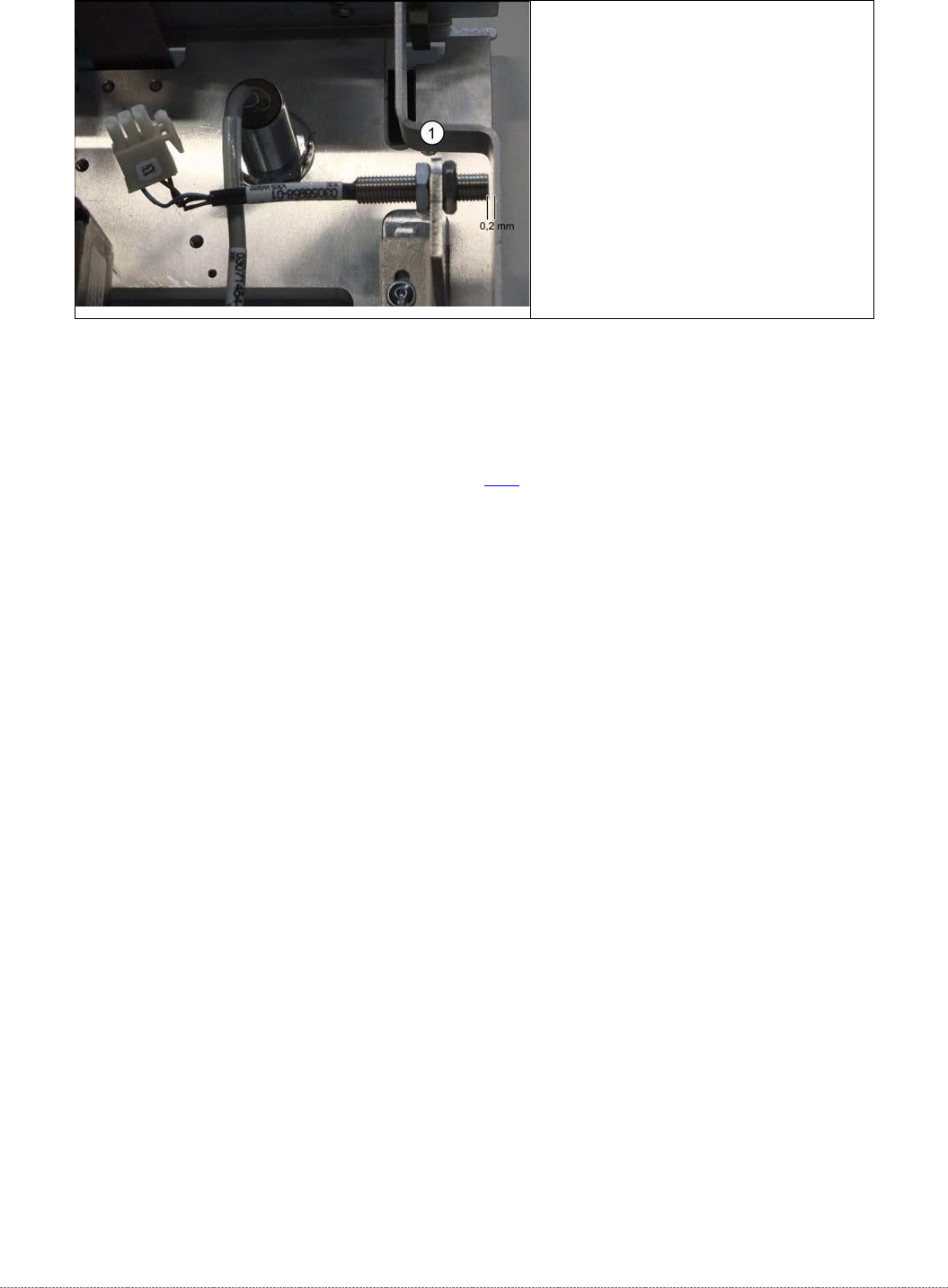

➢ Unscrew the sensor (1) from its
mount.
➢ Screw the sensor into its mount.
➢ Use a feeler gauge to set the
distance between the safety flap
and the sensor to 0.2 mm.
➢ Reconnect connector X3 to the
circuit board.
Service Manual Internal WPC5 / WPC6
Page 3-108
3.7.16 Sensor 17 NSM (WPC6) – Safety Sensor loading flap
Spare Part
• Safety sensor loading flap [03056989-xx]
Removal / Installation
➢ Remove the cover on the load unit (see "3.5.1.1 Remove the Cover on the Load Unit" [➙ 3-
33]).
➢ Open the loading flap.
➢ Disconnect the cable x2j from the sensor and unthread it.
➢ Remove the two fastening screws and then take off the sensor.
➢ Insert the new sensor and fix into place with the two screws.
➢ Thread the sensor cable into place again and reconnect it.
➢
Fit the cover back on the loading unit.

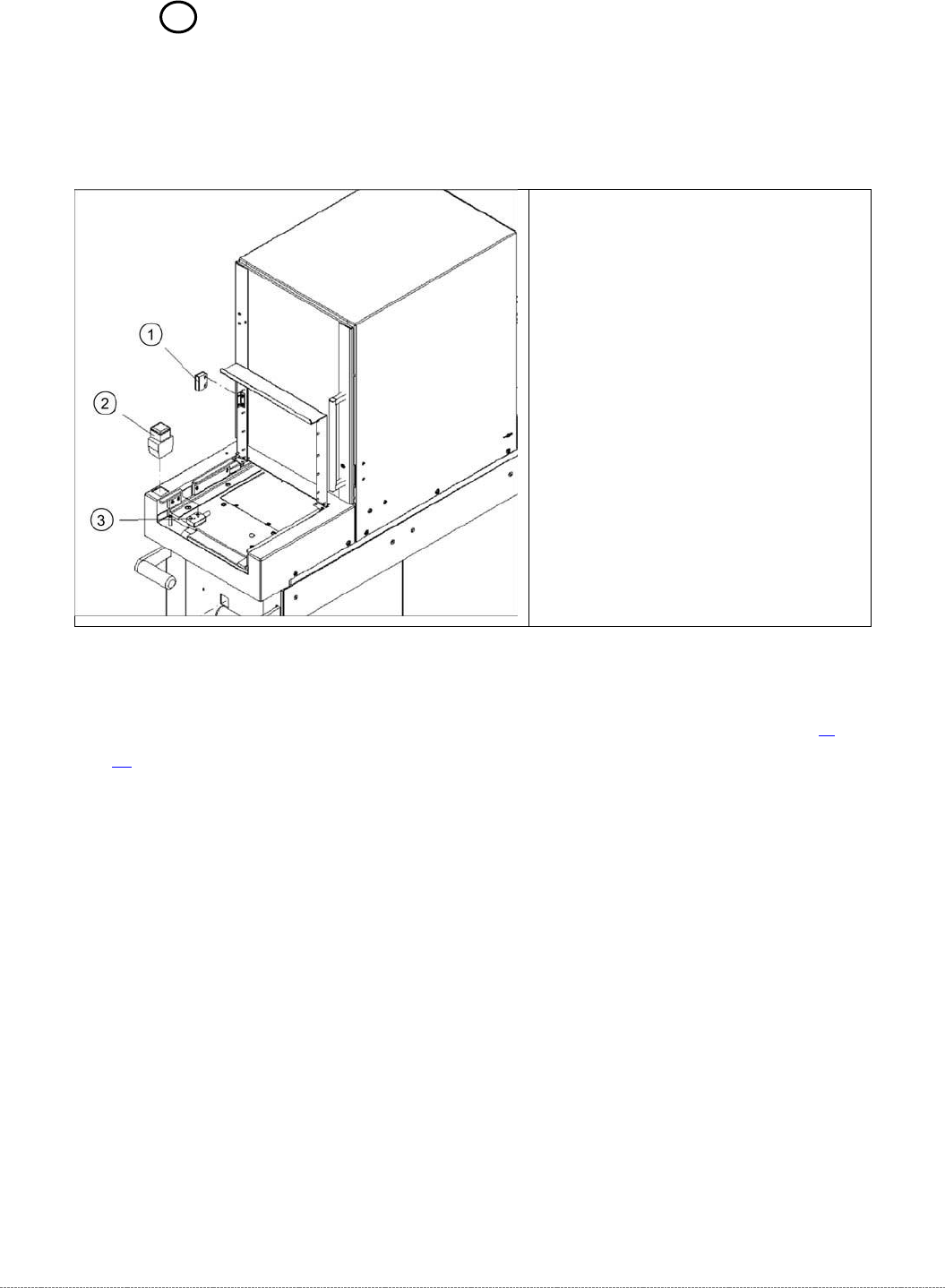

Legend
1. Actuator BPS 260-2
2. Button with signal light
3. Safety sensor loading flap
