Service Manual In ternal WPC5 / WPC6 Page 3- 77 3.7.2 Sensor 1 "WPTC available" Spare Part • Proximity switch for WPTC available sens or [03056853 - xx] Removal / Install ation ➢ Loosen the 6 screws faste nin…
Service Manual Internal WPC5 / WPC6
Page 3-76
WPC6 – Elektrics_2;
Serien-Nr.: > 3xxx
Service Manual Internal WPC5 / WPC6
Page 3-77
3.7.2 Sensor 1 "WPTC available"
Spare Part
• Proximity switch for WPTC available sensor [03056853-xx]
Removal / Installation
➢ Loosen the 6 screws fastening the metal cover on the feed axis and then remove this cover.
➢ Loosen the two fastening screws (1) on the sensor.
➢ Loosen the cable clamps and remove the cable ties.
➢ Unthread the connection cable as far as the control unit back plane and unplug it from the
terminal strip. The cable is run from the right-hand side, along the underside of the feed axis
to the left-hand side and from there to the back plane.
➢ Fit the sensor so that the sensor surface (2) points upwards.
➢ Align the sensor parallel to the white guidance rail (3).
➢ Restore the electrical connection and fix the connection cable into place..
Settings
➢ Check the sensor function.
➢
To do this, push a waffle pack tray carrier (WPTC) by hand over the sensor. The LED on the
underside of the sensor will show the status:
⇨ LED shines = switched
⇨ LED does not shine = not switched.
➢ Check whether the correct output was activated.
➢
Go to the station software menu
⇨ Sensors and Functions ⇨ Location ⇨ Check functions for WPC ⇨ Advanced functions ⇨ WPC I/O ports.
➢ Remove the waffle pack tray carrier.
⇨ The relevant display must be off.

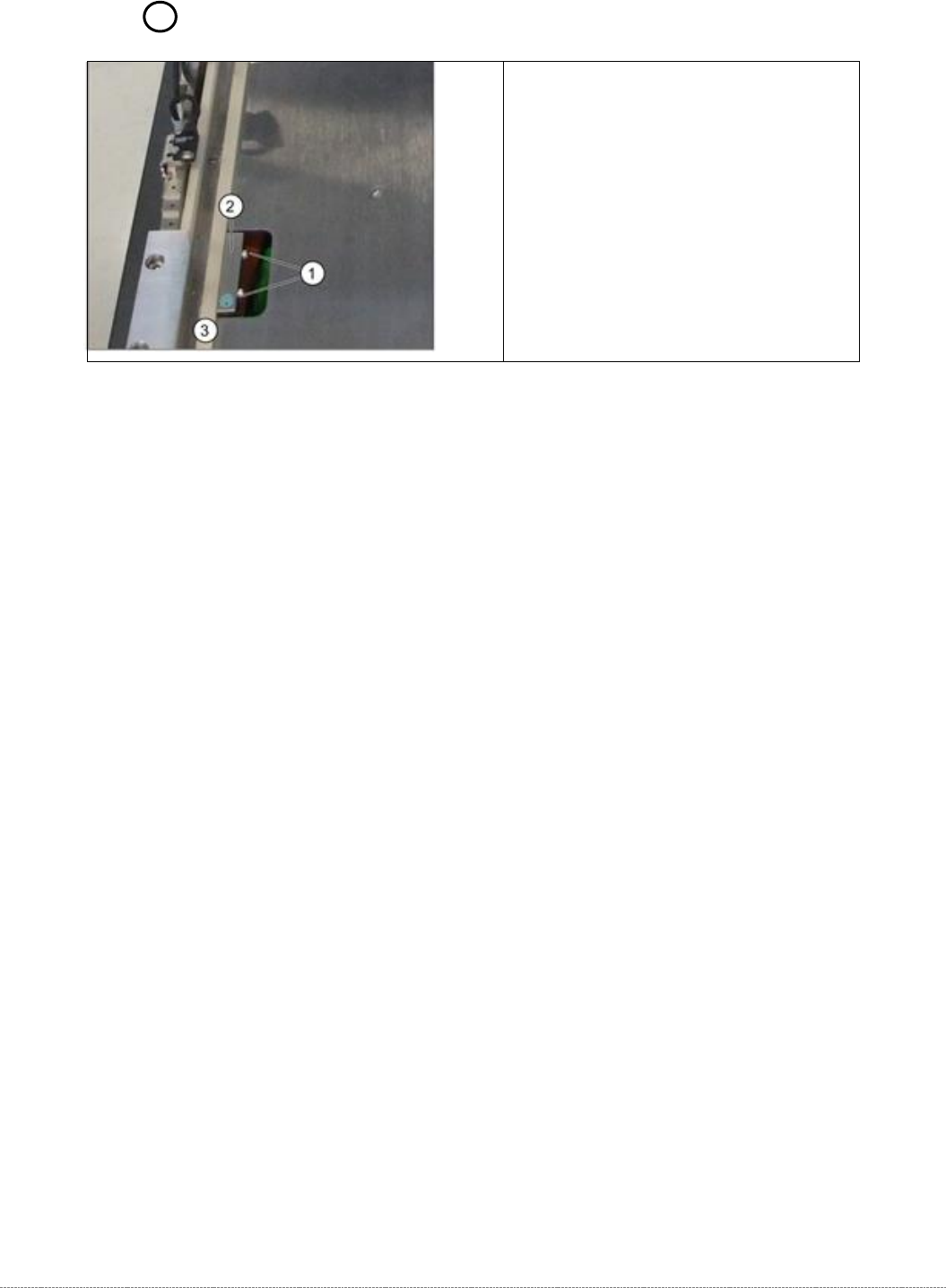

1. Fastening screws
2. WPTC available sensor
3. Guidance rail
Service Manual Internal WPC5 / WPC6
Page 3-78
3.7.3 Sensor 9 "WPTC Lock Sensor Cloesd"
Spare Part
• Sensor anti-twist device [03056854-xx]
Aus-/Einbau
➢ Loosen the screw fastening the sensor (1).
➢ Pull the sensor (2) out of its mount.
➢ Loosen the cable clamps and remove the cable ties.
➢ Unthread the connection cable as far as the control unit back plane and unplug it from the
terminal strip.
➢ Push the new sensor (2) into the mount.
➢ Fix the sensor into place in its mount with the help of the fastening screw (1).
➢ Restore the electrical connection and fix the connection cable into place..
Settings
➢ The sensor must be fitted so that it switches reliably when the locking strip (5) is closed.
➢ Close and open the locking strip (5) manually. The sensor must switch when lock is closed.
➢ The LED on the sensor will show the status:
⇨ LED shines = switched
⇨ LED does not shine = not switched.
➢ Check whether the correct output was switched.
To do this, open the station software menu
⇨ Sensors and Functions ⇨ Location ⇨ Check functions for WPC ⇨ Advanced functions ⇨
⇨ WPC E/A Ports.
The
Sensor FMT Verriegelung offen
option must be enabled.
➢ Open the lock.
⇨ The corresponding display must be OFF.

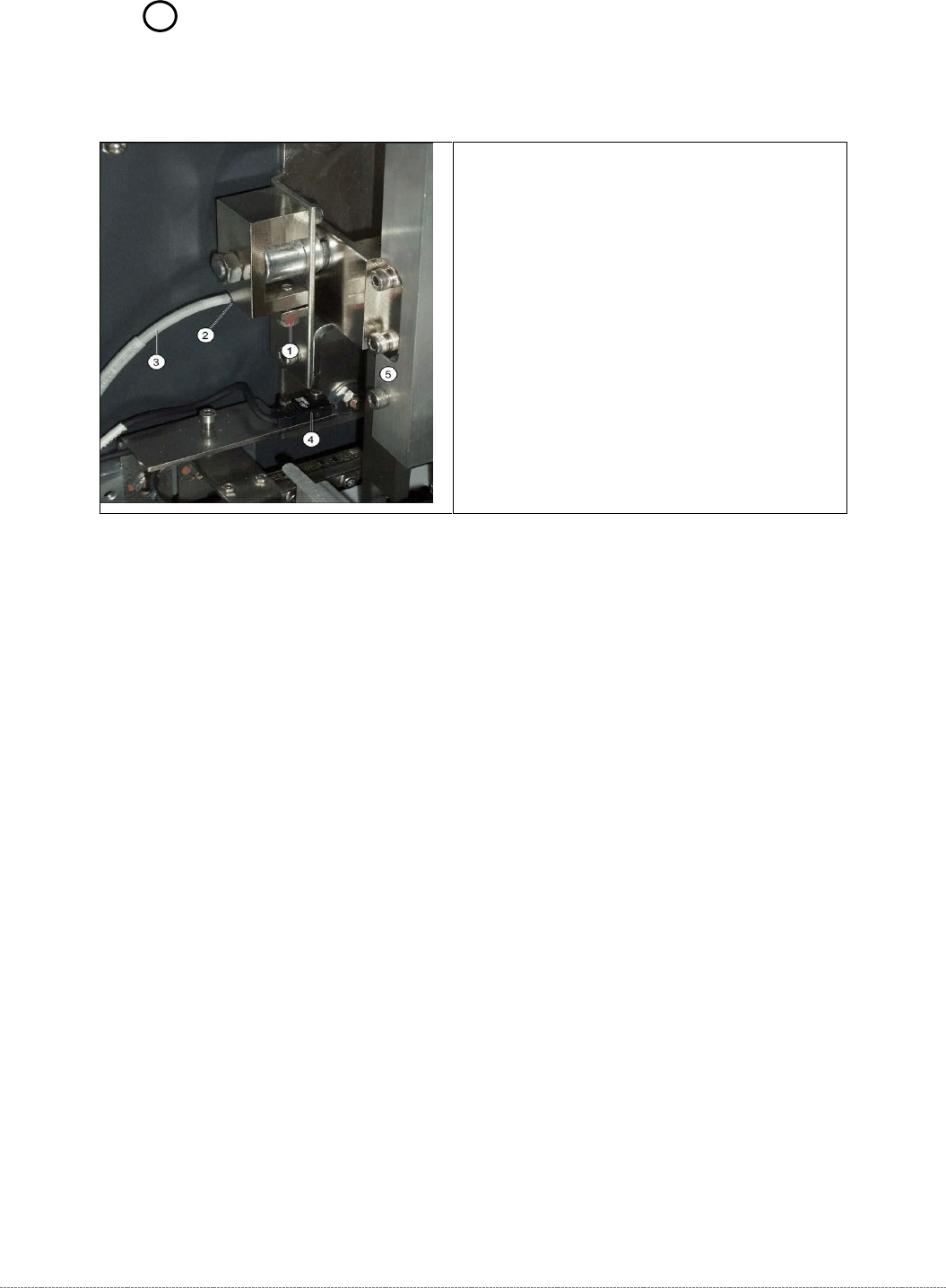

Overview
1. Fastening screw for anti-twist proximity
switch
2. Sensor anti-twist device
3. Sensor cable for anti-twist device
4. crash light barrier for high components
5. Locking strip
