Service Manual Internal WPC5 / WPC6
Page 4-138

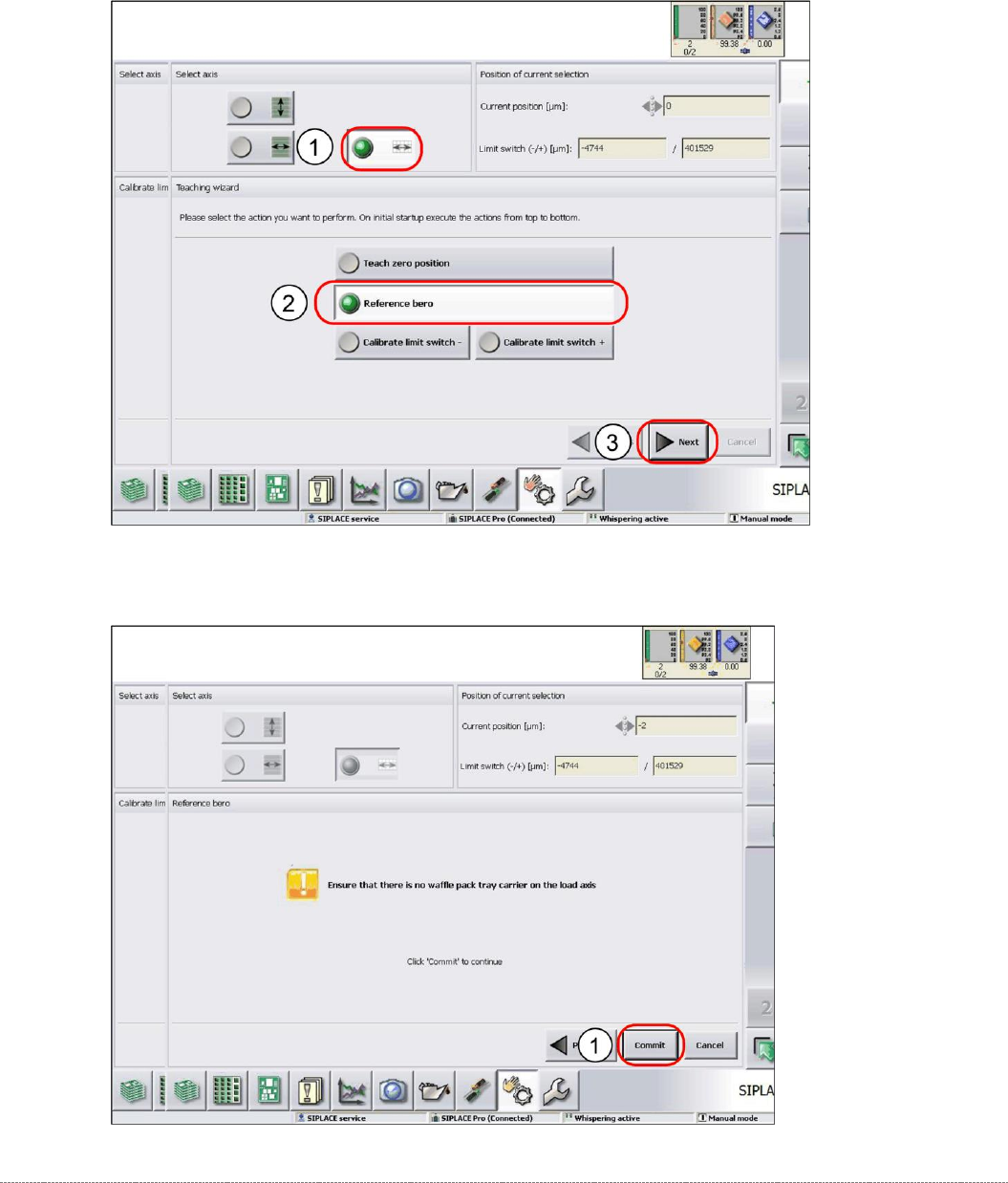

4.3.2 Reference Proximity Switch (Bero)
➢ Select the load axis (1).
➢ Select the function
Reference bero
(2).
➢ Select
Next
(3).
➢ Follow the instruction shown and continue with
Commit
(1).
Service Manual Internal WPC5 / WPC6
Page 4-139

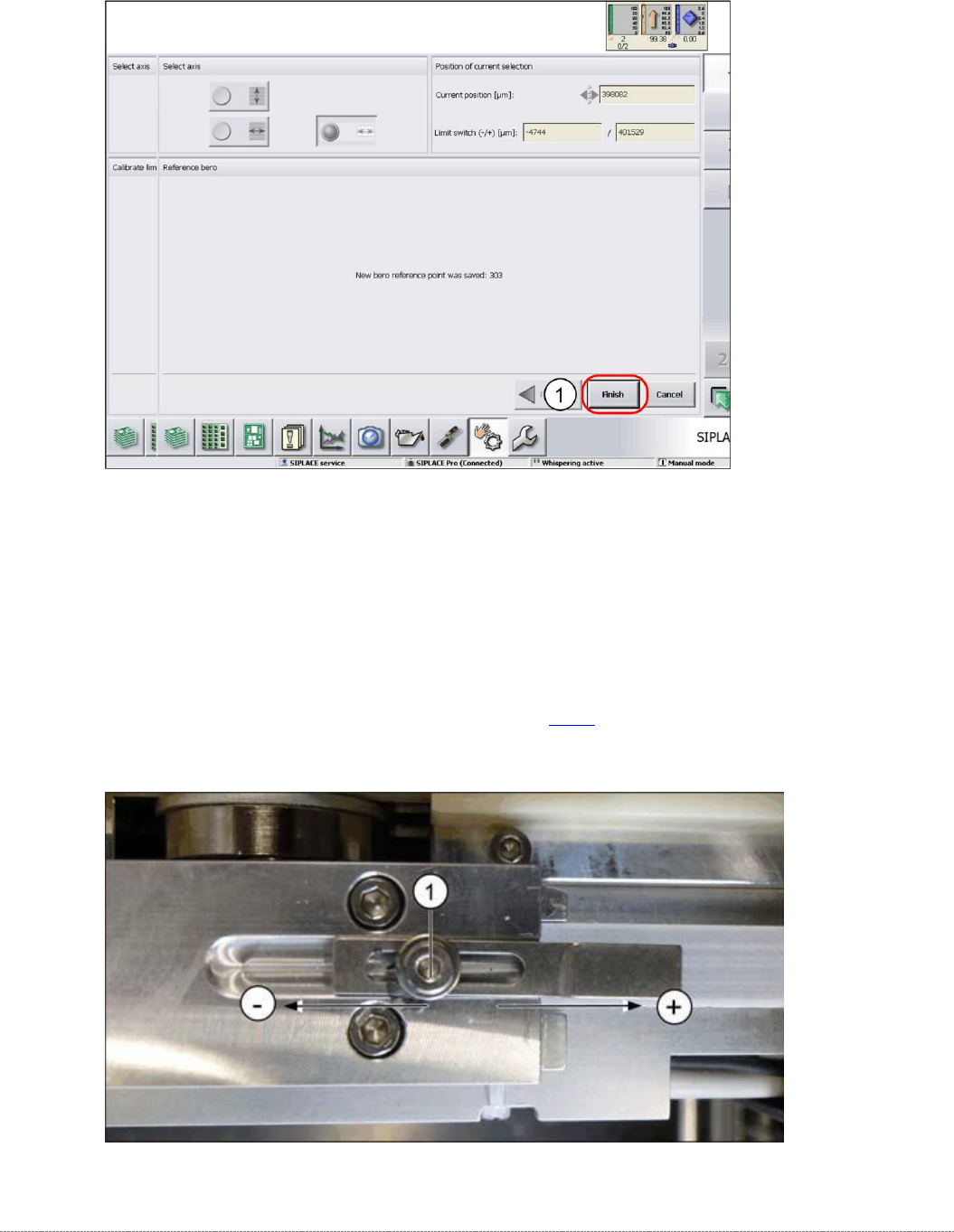

➢ Confirm the new reference point proximity switch with
Finish
(1).
Setting the Driver Cam
➢ Loosen the screw (1), fastening the cam to the driver.
➢ Correct the position of the cam by moving it accordingly in either the – or + direction.
➢ Retighten the screw (1) and repeat the measuring steps (see "3.7.13 Replacing the
Reference Point.
Proximity Switch for the Load Axis [03056947-xx]" [➙ 3-102]).
➢ Wiederholen Sie die einzelnen Schritte, bis keine Fehlermeldung mehr erscheint.
Service Manual Internal WPC5 / WPC6
Page 4-140

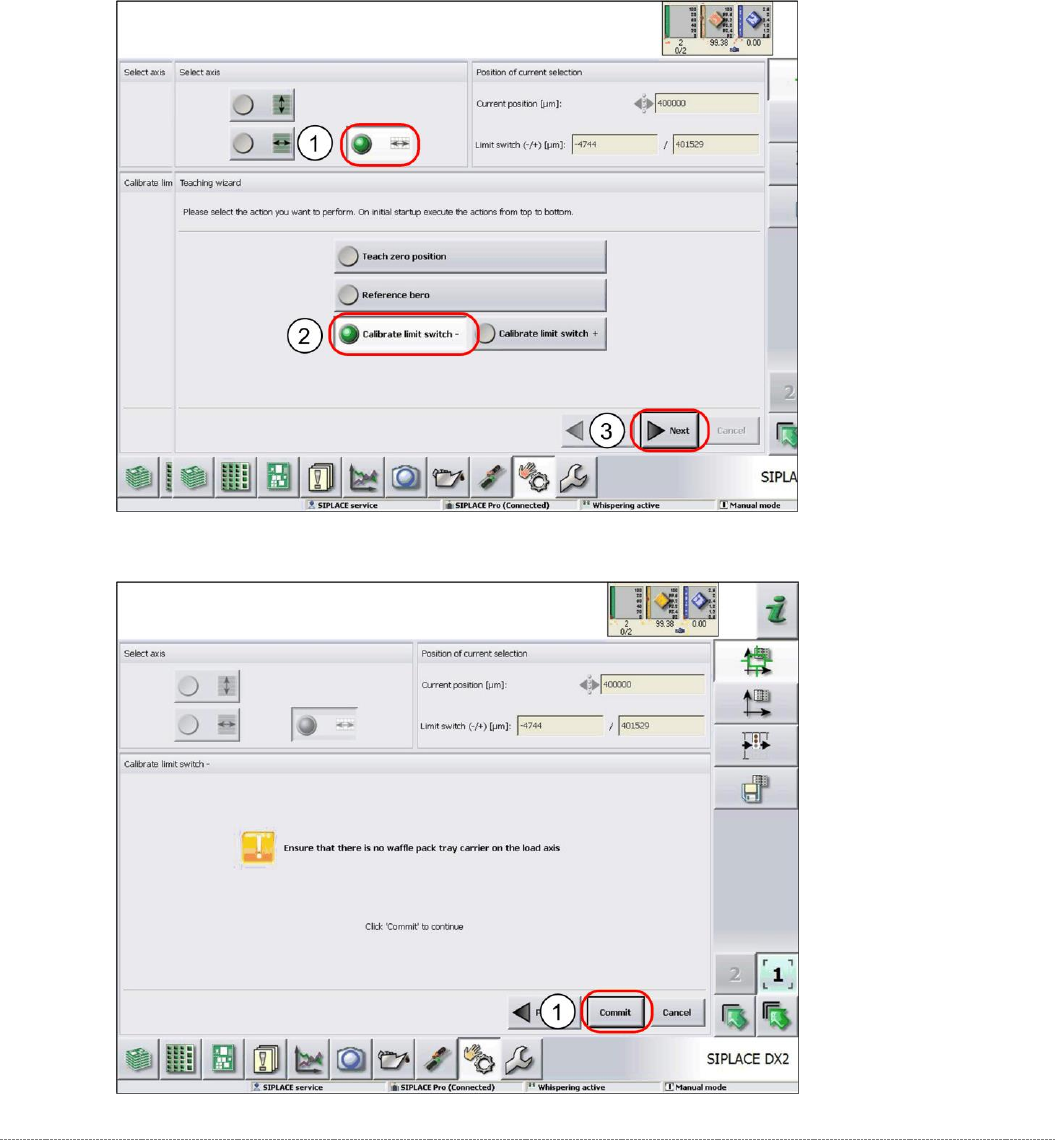

4.3.3 Calibrating the Limit Switch
The plus and minus position of the limit switches need to be calibrated.
Calibrating the limit switch -
➢ Select the load axis (1).
➢ Select the function
Calibrate limit switch -
(2).
➢ Select
Next
(3).
➢ Follow the instruction shown and continue with
Commit
(1).
