5.8 Checking the clearance at the edge of the waffle pack tray carrier
Remove the gauge(s) from the tower and push a waffle pack tray carrier into the tower.
Move the tower to a position where the metal plate (waffle pack tray carrier) is at the same height as
the transfer point to the loading axis.
Push a magnet intended to secure a tray in the waffle pack tray carrier into the left front corner of the
carrier.
Manually move the metal plate (waffle pack tray carrier) through the recess at the stopper strip and
check the clearance.

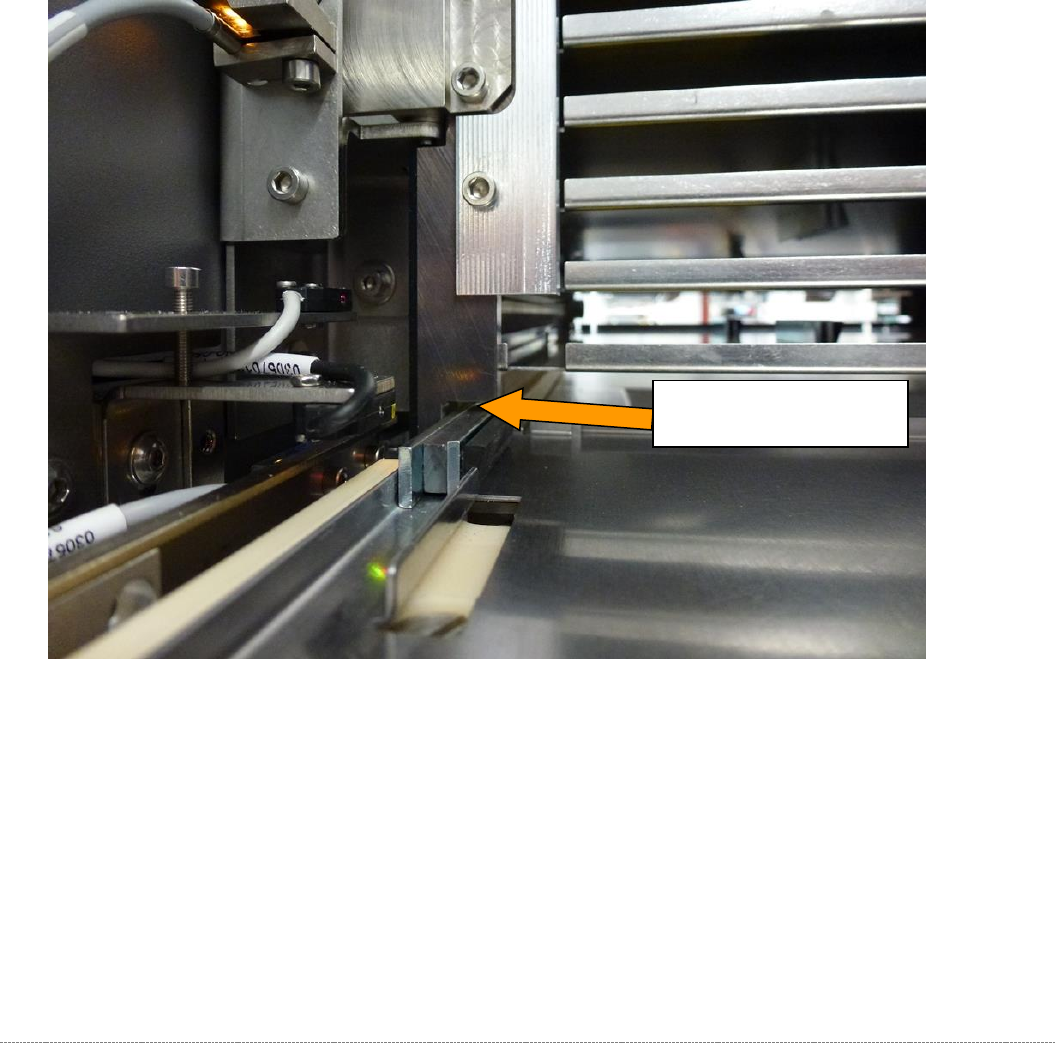

Figure 5.35: Checking the clearance for magnets at the recess on the stopper strip.
The required clearance
is approximately 1.3 mm.
