Service Manual In ternal WPC5 / WPC6 Page 4-134 ➢ Insert the calibration pi n (see figure abov e) and continue with Commit (1). ➢ Remove the cal ibration pin and confirm the new transfer positio n with Finish (1).
Service Manual Internal WPC5 / WPC6
Page 4-133

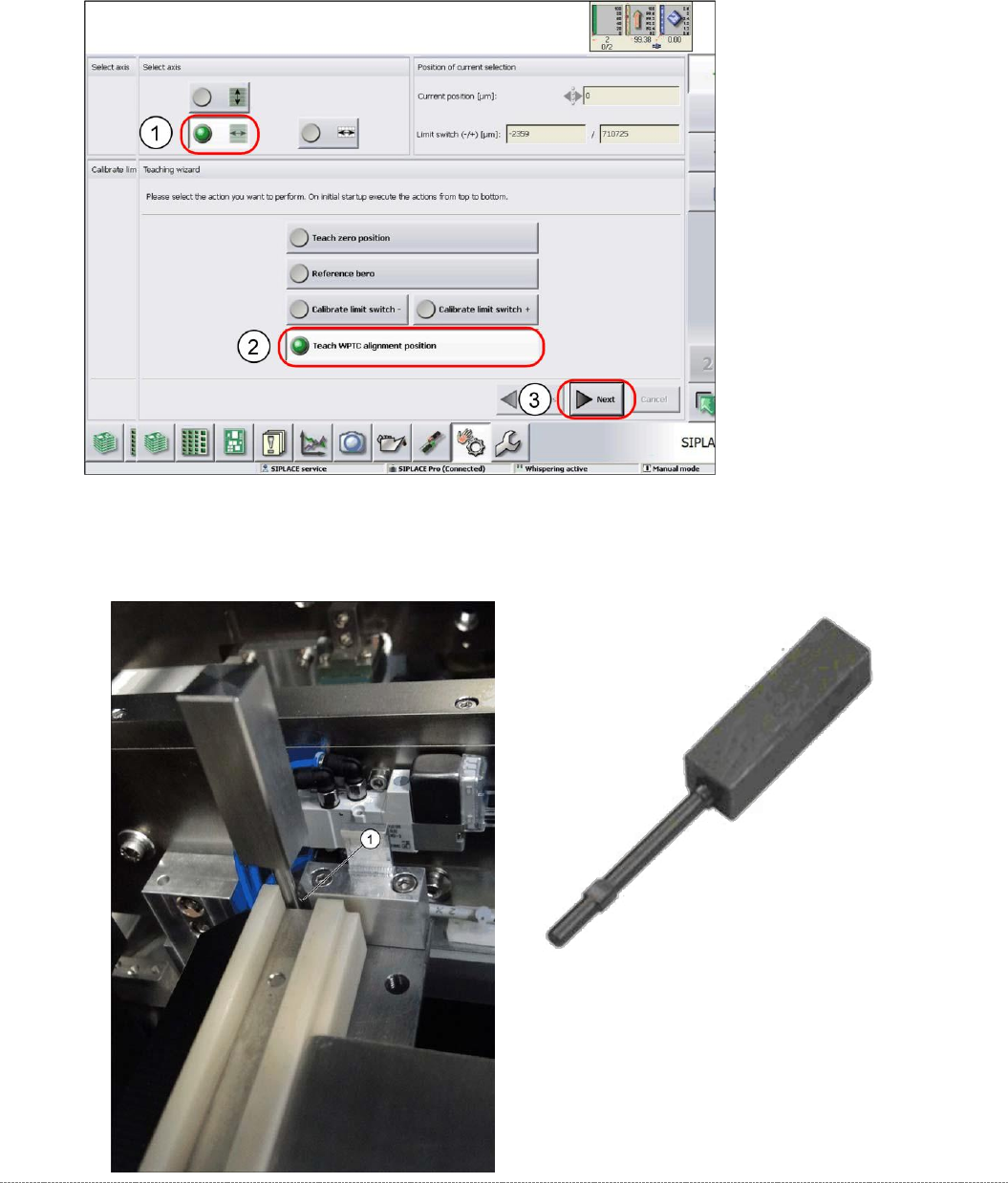

4.2.5 Teaching the WPTC Transfer Position
➢ Select the feed axis (1).
➢ Select the function
Teach WPTC alignment position
(2).
➢ Select
Next
(3).
➢ Insert the calibration pin “Adjusting gauge small WPC” [03052363-02] on the front end of the
feed axis (1).
“
Adjusting gauge small WPC
”
[03052363-02]
Service Manual Internal WPC5 / WPC6
Page 4-134
➢ Insert the calibration pin (see figure above) and continue with
Commit
(1).
➢ Remove the calibration pin and confirm the new transfer position with
Finish
(1).
Service Manual Internal WPC5 / WPC6
Page 4-135
4.3 Calibrating the Load Axis (WPC6 only)
Before calibration, remove all waffle-pack tray carriers (WPTCs) from the WPC.
Calibration of the load axis includes the following functions:
• "4.3.2 Teaching the Zero Point Position" [
➙
4-136]
• "4.3.3 Reference Proximity Switch (Bero)" [
➙
4-138]
• "4.3.4 Calibrating the Limit Switch" [
➙
4-140]
Load axis – order of settings
If the limit switches or sensors are replaced, you will need to recalibrate or reset these
accordingly.
A complete recalibration is only needed if the zero point position is changed.
The function for the
limit switch +
and
limit switch –
specified in the software is assumed by the
end position stoppers (bumpers) at the machine end and tower end.
NOTICE
Crash Light Barrier Component Height
The crash light barriers for height checks must not trigger during calibration
During calibration of the reference sensors and the limits switches, make sure that the
crash light barriers do not trigger without good reason. If this does happen, the
calibration process will stop and no values or invalid values will be calculated.
➢
During calibration, make sure that the light beam of the crash light barriers is not interrupted by
objects etc.
