Service Manual Internal WPC5 / WPC6
Page 4-120
➢ Use the arrow keys (2) to select the required pitch (1) (0.1 mm in this example).
➢ Use the arrow keys to move the tower so that the tray can be correctly moved from the feed
axis into the tower.
➢ Continue with
Next
(3).
➢ Follow the instruction shown and confirm the changes made with
Finish
.
Service Manual Internal WPC5 / WPC6
Page 4-121
4.1.3 Reference Proximity Switch (Bero)
➢ Remove all waffle-pack tray carriers (WPTC) from the WPC.
➢ Select the lifting axis (1).
➢ Select the function
Reference bero
(2).
➢ Select
Next
(3).
➢ Confirm the new reference point proximity switch with
Finish
.
Service Manual Internal WPC5 / WPC6
Page 4-122

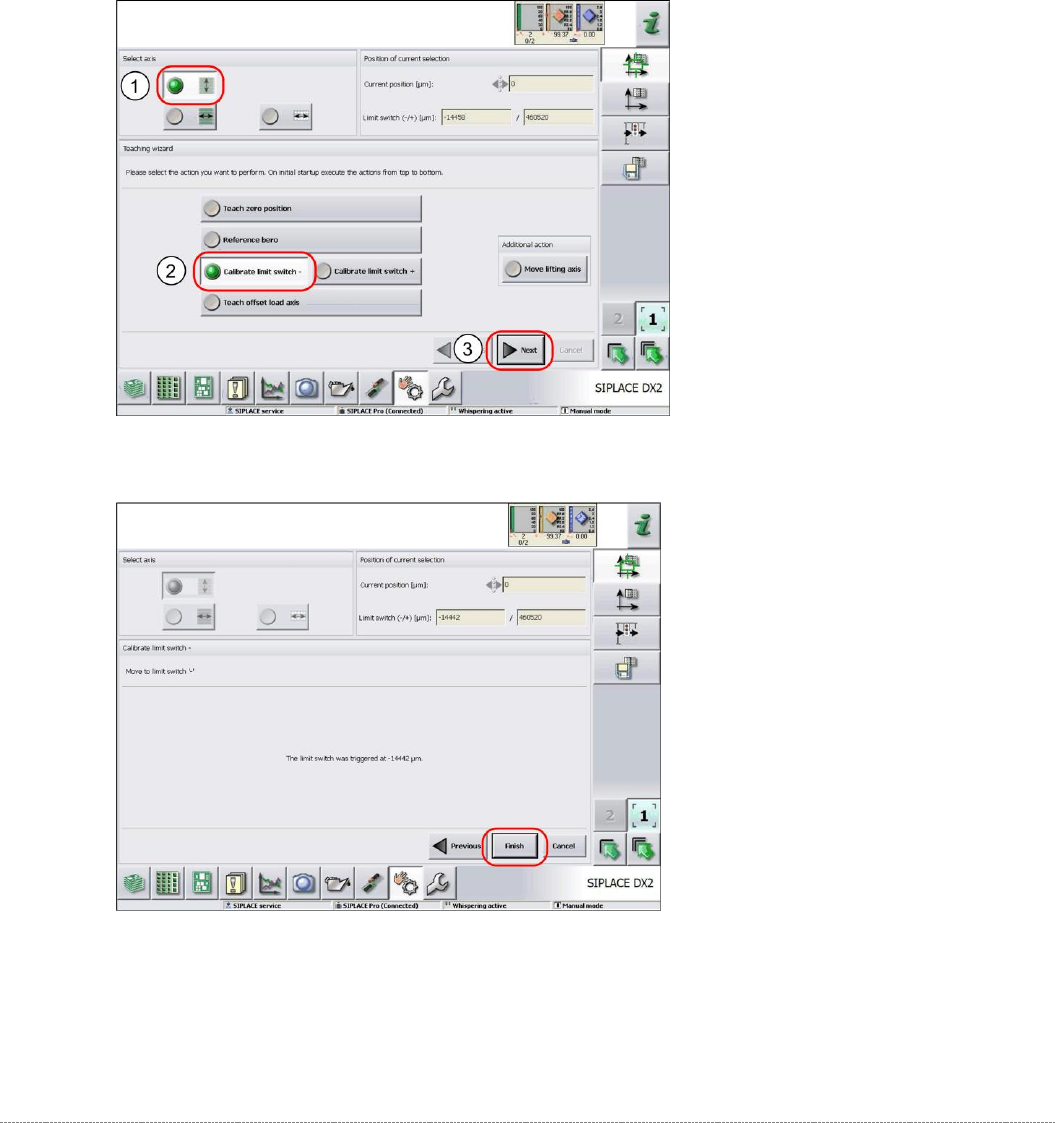

4.1.4 Calibrating the Limit Switch
The plus and minus position of the limit switches need to be calibrated.
➢ Remove all waffle-pack tray carriers (WPTC) from the WPC.
➢ Select the lifting axis (1).
➢ Select the function
Calibrate limit switch
- (2).
➢ Select
Next
(3).
Calibrating the limit switch -
➢ Confirm the new position at which the limit switch triggers with
Finish
.
Calibrating the limit switch +
➢ Select the lifting axis (1).
➢ Select the function
Calibrate limit switch +
and continue with the same procedure as that
used for calibrating the limit switch.
