Service Manual Internal WPC5 / WPC6

 Page 5-150

• Now clamp the gauge in level 5 of the tower with the clamp mount "clamping readout tower

adjust.WPC4-6 cpl." [03093864-01].

• Press the gauge onto the front of the guide rails, while you tighten the clamp, so that the

gauge with the addon "Teaching Basic settings. Position base plate" [03110862-xx] rests on

both rails!

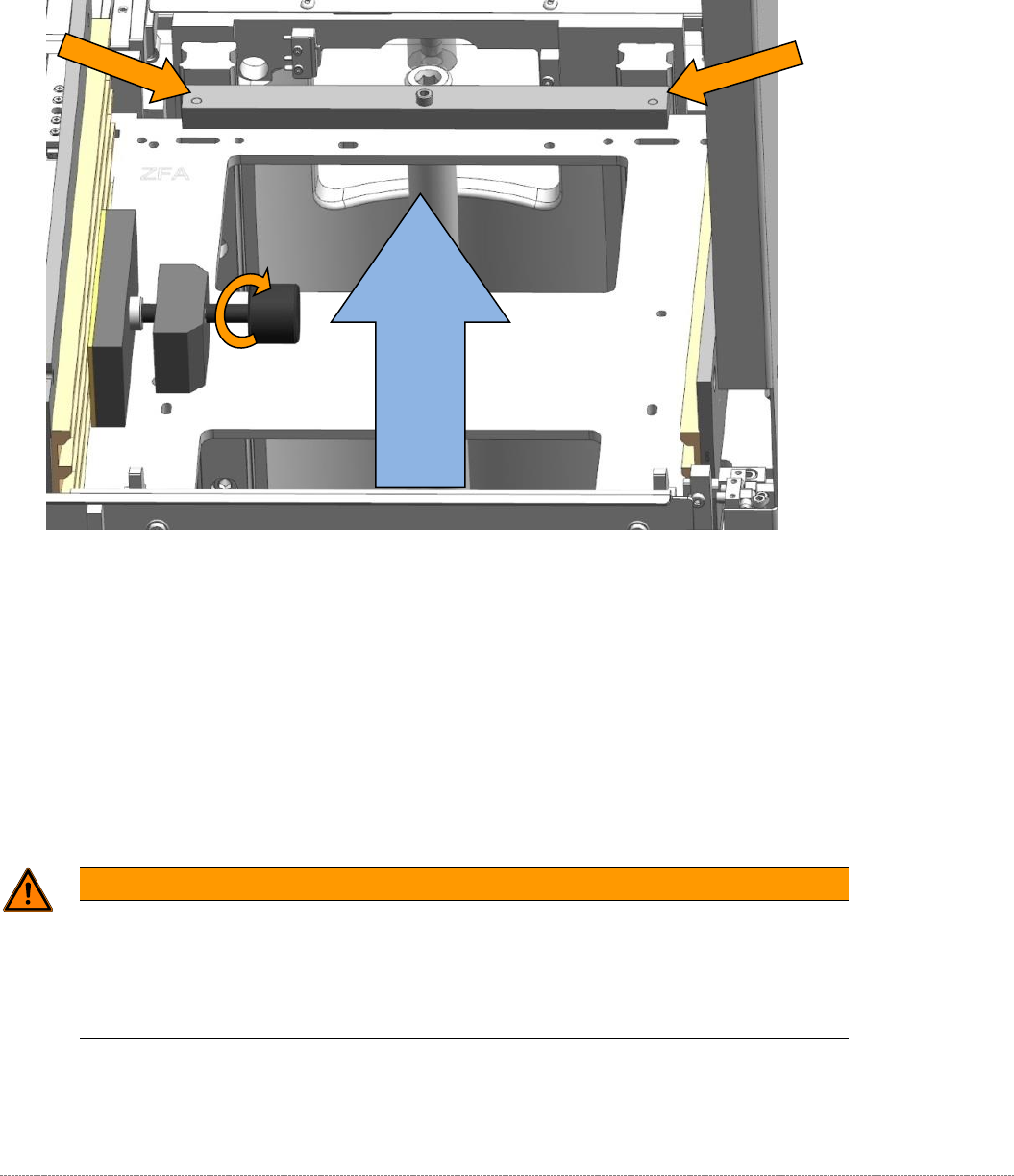

Figure 5.4: Base plate gauge with clamp attachment.

• Close the clamp until the built-in overtightening prevention mechanism triggers.

• Now, when the gauge base plate is clamped correctly, remove the "Teaching Basic settings.

Position base plate" [03110862-xx] from the base plate.

WARNING

Do not displace the gauge

Although the gauge is clamped in the tower, it is not clamped tightly.

When you are performing your work, in particular when inserting and removing the addon

gauges, make sure that you do not displace the gauge.

Move the gauge until the

strike with the guide rail.

Service Manual Internal WPC5 / WPC6

 Page 5-151

5.4 Setting the spring stopper

The gauge is clamped in the tower.

The tower is not at the same height as the feed level.

WARNING

Move the feed axis out of the vicinity of the tower

Move the feed axis (without gauge) out of the tower into the transfer position.

Next insert the "Jig stopper spring cmpl." [03093820-01] into the baseplate of the gauge.

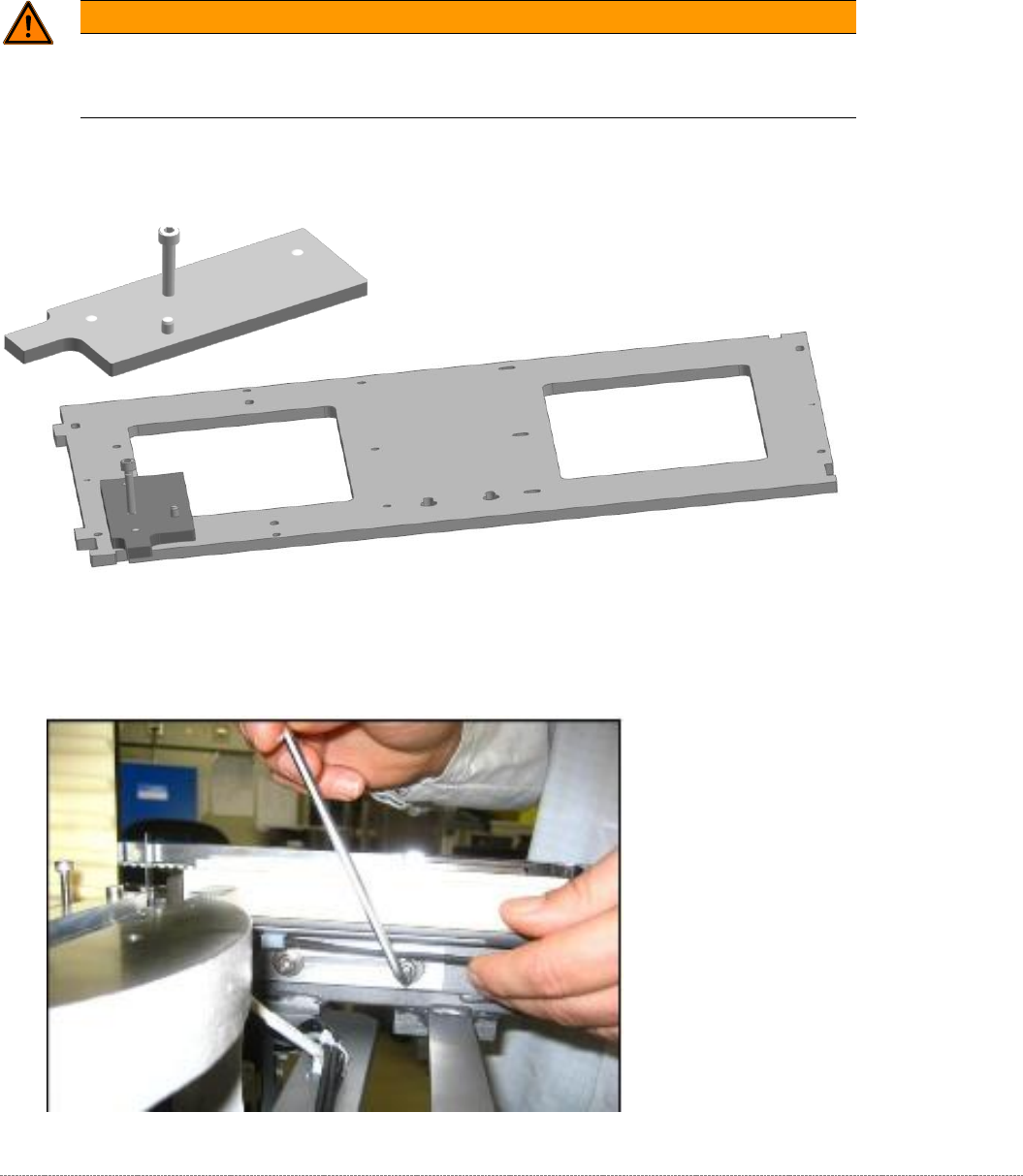

Figure 5.5: Base plate of the gauge with spring stopper attachment.

Release the two screws between the "Spring stopper, complete" and the frame.

Figure 5.6: Setting the spring stopper

Service Manual Internal WPC5 / WPC6

 Page 5-152

Push this up to the stopper of the gauge.

Then tighten the two screws again.

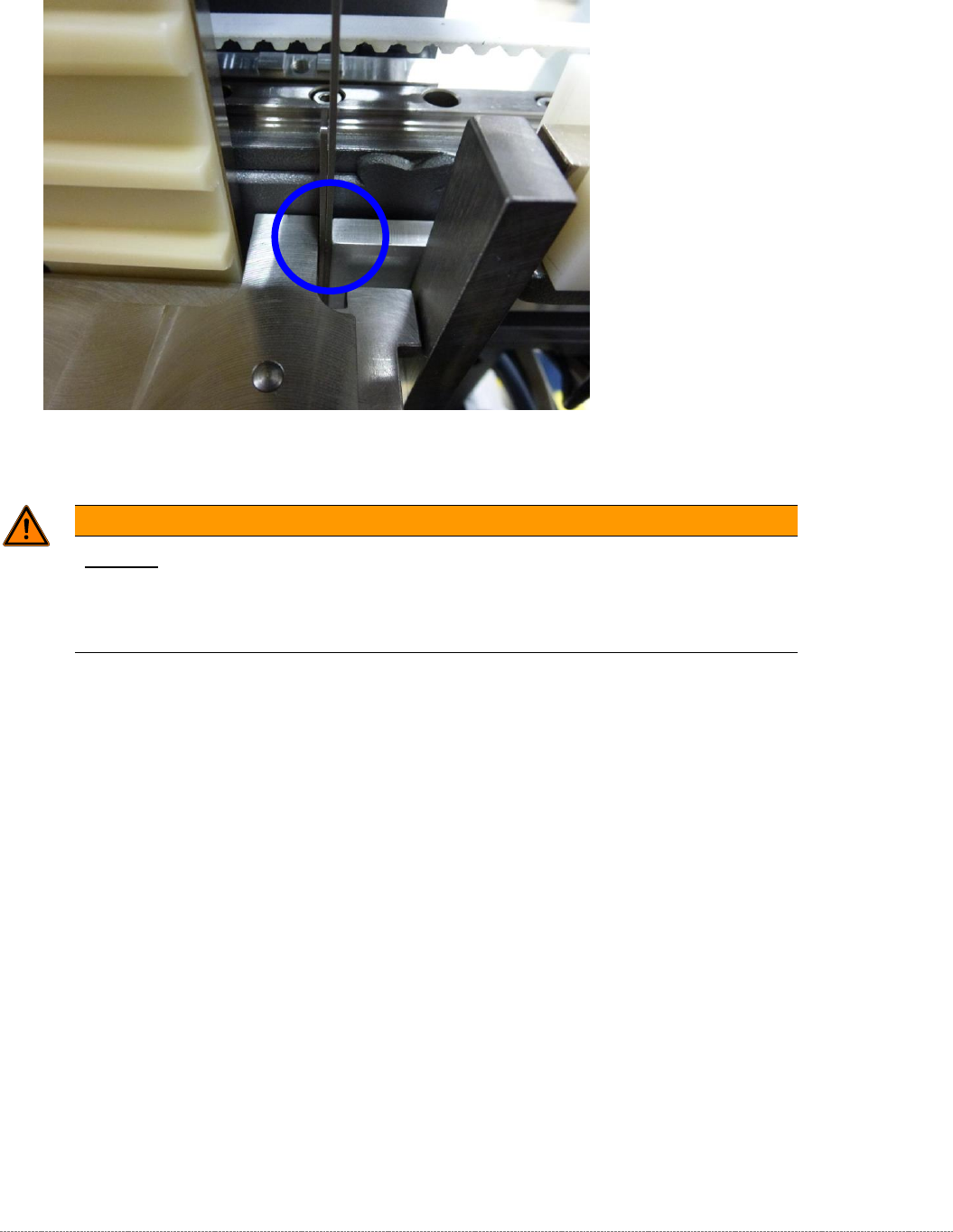

Figure 5.7: Setting the spring stopper

WARNING

Caution:

Now remove the “Jig stopper spring cmpl." [03093820-01].

If you do not do so, there is an increased risk of a crash!
