Service Manual In ternal WPC5 / WPC6 Page 3- 18 CAUTION Do not move th e motor against the brake Do not move the lifting axis motor shaft against the brake. This could impair the braking function or damage the brake. ➢…
Service Manual Internal WPC5 / WPC6
Page 3-17
Installation
➢ Loosely fix the motor support and drive motor into the installation position, with the 2
fastening screws (2).
➢ Reconnect the electrical connections with the motor. When fitting, note that there is an anti-
twist lock (notch) present. Tighten the connection appropriately.
➢ Run the drive toothed belt around the motor pinion and the spindle toothed wheel and
tension (pretension) the toothed belt at the slot provided, with the help of the motor support.
➢ Set the final belt tension. To do this, tension the drive toothed belt at the tensioning device,
with the help of the tensioning screw (5). This moves the motor support accordingly in the
slots.
⇨
Setting value: Set the belt tension to 235Hz +/- 10Hz.
➢ Tighten the 2 fastening screws (2) on the motor support, check the belt tension and adjust
where necessary.
➢ Seal the 2 fastening screws (2) with locking varnish.
➢ Calibrate the lifting axis..
3.3.3 Replacing the Lifting Axis Toothed Belt
Spare Part
• Toothed belt 16AT5/450 [03046971-01]
Removal / Installation
The drive motor (1) of the lifting axis is located behind the front cover. If the drive motor is
disconnected from the power supply, the drive is fixed with a brake.

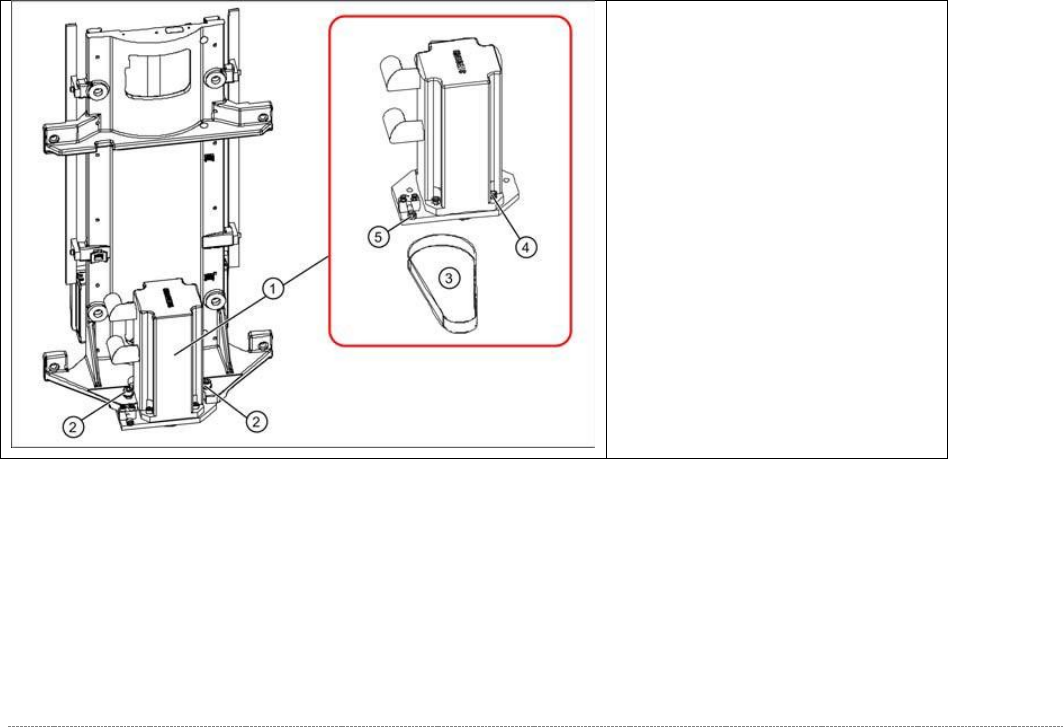

(1) Lifting axis drive motor.
(2) 2 x motor support fastening screws
with drive motor.
(3) Toothed belt for the drive
(4) 4 x drive motor fastening screws
(5) Tensioning screw
Service Manual Internal WPC5 / WPC6
Page 3-18
CAUTION
Do not move the motor against the brake
Do not move the lifting axis motor shaft against the brake. This could impair the braking function or
damage the brake.
➢ Loosen the two motor support fastening screws (2) sealed with locking varnish.
➢ Loosen (do not remove) the tensioning screw (5) on the tensioning device. This relaxes the
drive toothed belt.
➢ Loosen and remove the 2 fastening screws (2) and then remove the toothed belt (3).
➢ Loosely fix the motor support and drive motor into the installation position, with the 2
fastening screws (2).
➢ Run the new drive toothed belt around the two toothed wheels and tension (pretension) the
toothed belt at the slot provided, with the help of the motor support.
➢ Set the final belt tension. To do this, tension the drive toothed belt at the tensioning device,
with the help of the tensioning screw (5). This moves the motor support accordingly in the
slots.
⇨
Setting value: Set the belt tension to 235 Hz +/- 10 Hz.
➢ Tighten the 2 fastening screws (2) on the motor support, check the belt tension and adjust
where necessary.
➢ Seal the 2 fastening screws (2) with locking varnish.
➢ Calibrate the lifting axis.
NOTICE
Tower moves down
The tower moves down about 1 mm, to the bottom, red bumper.
Service Manual Internal WPC5 / WPC6
Page 3-19
3.4 Drive Unit – Feed Axis
3.4.1 Preparations
Tools Required
• Water pump pliers
• Standard tool with set of Allen wrenches
• Setting gauge, small [03052363-02]
• Belt tension measuring device [00326015-01] with instruction guide
Prerequisite
• Move the tower into the refill position.
• Remove all waffle pack tray carriers (WPTCs) from the tower.
• Move the tower downwards.
⇨
Check sensors and functions ⇨ Check sensors and functions of specific components ⇨ Location ⇨
⇨ Check functions for WPC ⇨ Move into transport position
• Switch the WPC off at the main switch.
• Unplug from the power supply and secure the WPC to prevent unauthorized reactivation.
• Undock the WPC from the SIPLACE machine and move it to a suitable position for service
work.
• Remove the jumper cover.
• Remove the feed axis cover.

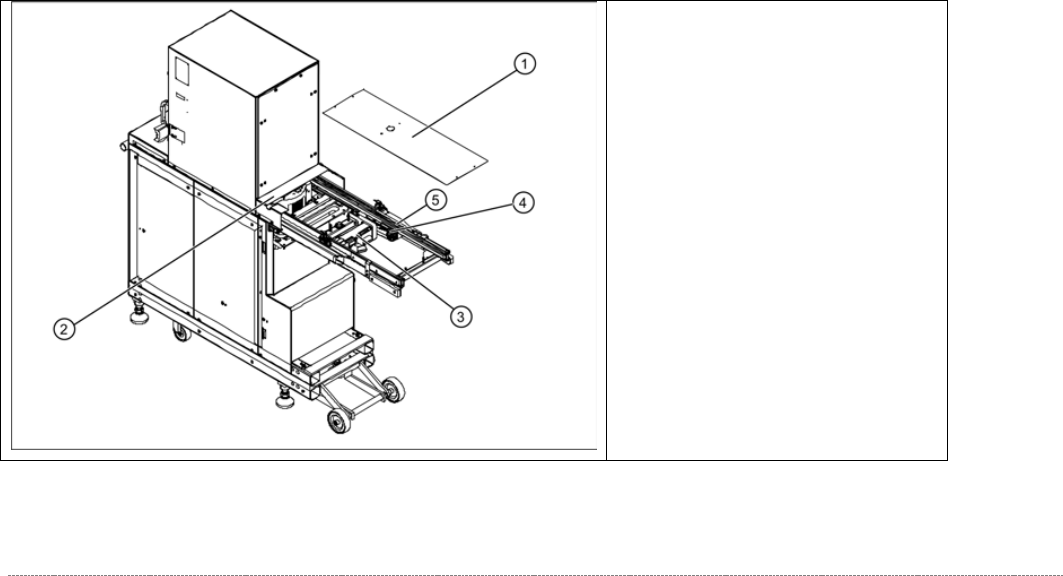

Overview
(1) Feed axis cover
(2) Bridge cover (hand guard on
tower)
(3) Feed axis drive motor
(4) Toothed belt for the drive
(5) Feed axis toothed belt
