Service Manual In ternal WPC5 / WPC6 Page 5-156 5.5.2 Rear, bottom guide rail, top position (transition to loading axis) Figure 5. 13 : Rear, bottom guide rail Now move the tower f urther down unti l it aligns with th …
Service Manual Internal WPC5 / WPC6
Page 5-155
If you need to adjust the positions of the front, bottom guide rails, you must remove the front cover,
which also covers the lifting axis motor, and the side covers.

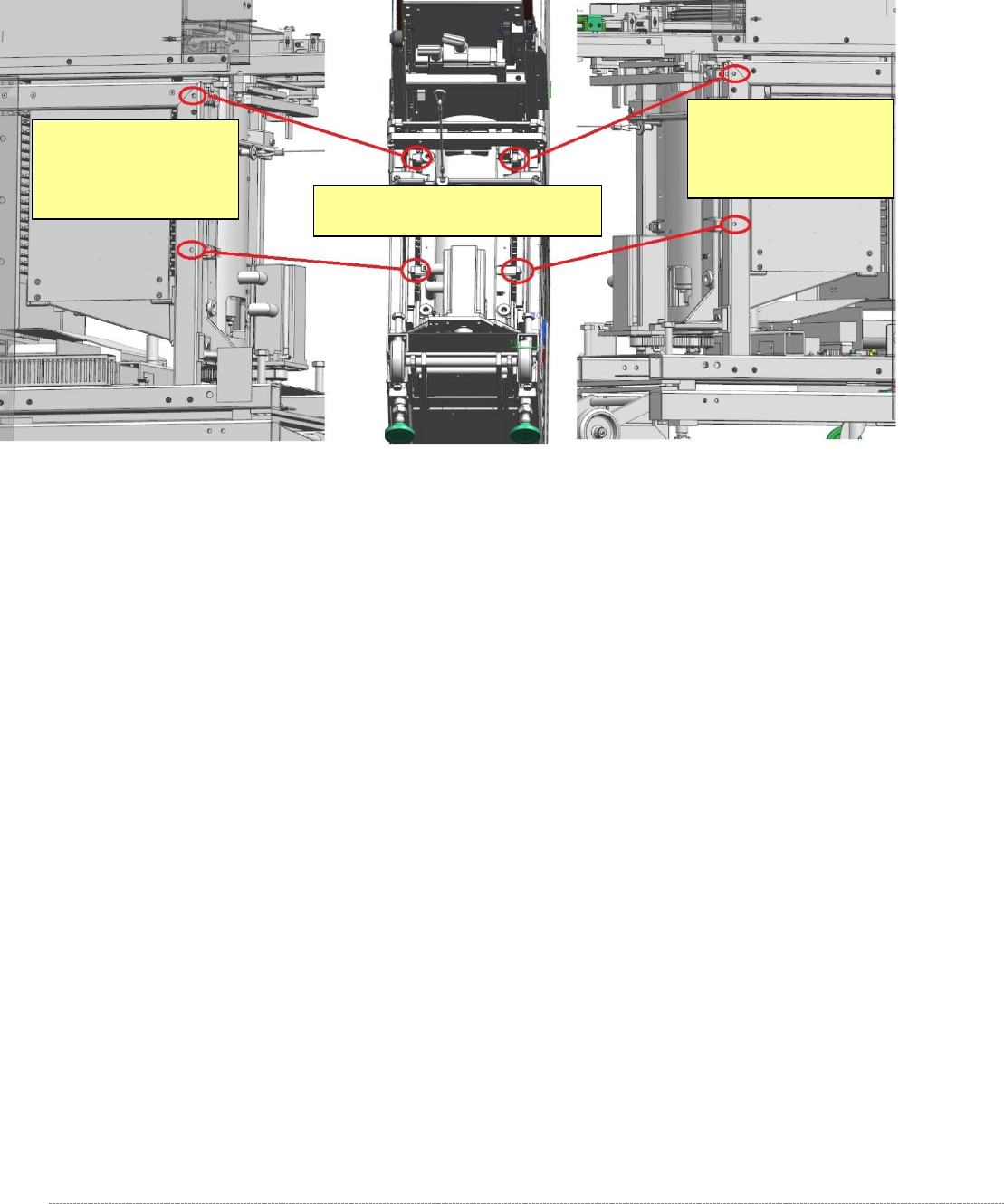

Figure 5.12: Securing positions of the front, bottom guide rails
Now use a feeler gauge to set a gap of 0.2 mm between the guide rail and the baseplate of the
gauge.
An oval hole allows the guide rails to be
moved forwards and backwards.
The securing screws for the
guide rails can be
accessed through holes in
the frame to allow them to
be released and tightened.
The securing screws for the
guide rails can be
accessed through holes in
the frame to allow them to
be released and tightened.
Service Manual Internal WPC5 / WPC6
Page 5-156
5.5.2 Rear, bottom guide rail, top position (transition to loading axis)

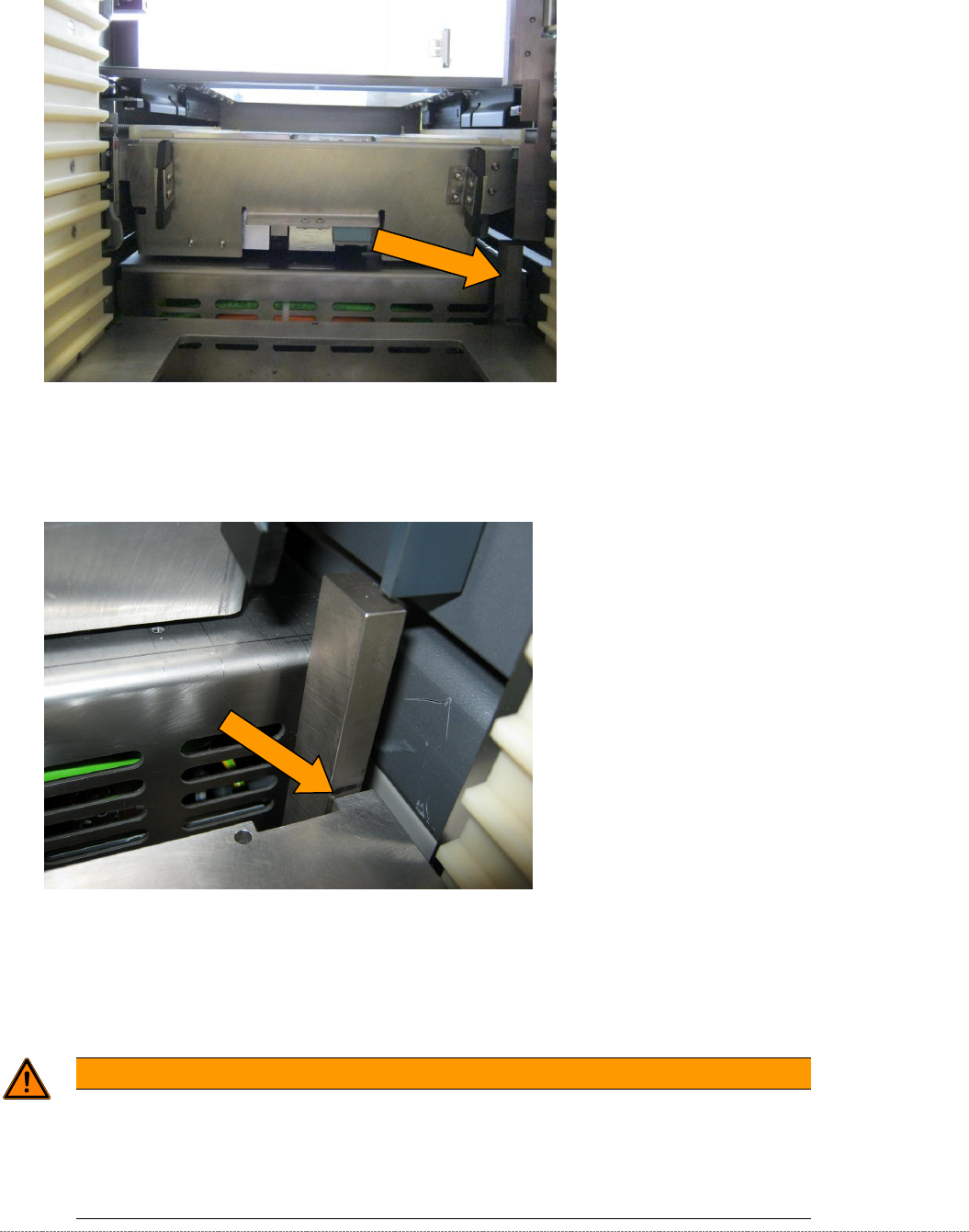

Figure 5.13: Rear, bottom guide rail
Now move the tower further down until it aligns with the mark for the start of the chamfer on the rear
guide rails.
Figure 5.14: Bottom, rear guide rail, setting the top position. 0.2 mm
Again use a feeler gauge to set a gap of 0.2 mm between the guide rail and the baseplate of the
gauge.
WARNING
Do not displace the gauge
Although the gauge is clamped in the tower, it is not clamped tightly.
When you are performing this work, in particular when you are inserting the feeler gauge,
make sure that you do not displace the gauge.
Service Manual Internal WPC5 / WPC6
Page 5-157
If you need to change the position of the bottom, rear guide rail, you must remove the cover on the
left-hand side of the WPC.
Figure 5.15: Adjusting the rear, bottom guide rail
The securing screws for the
guide rails can be
accessed through holes in
the frame to allow them to
be released and tightened.
Oval holes allow easy
horizontal adjustment of the
rails.
