Service Manual Internal WPC5 / WPC6
Page 3-62

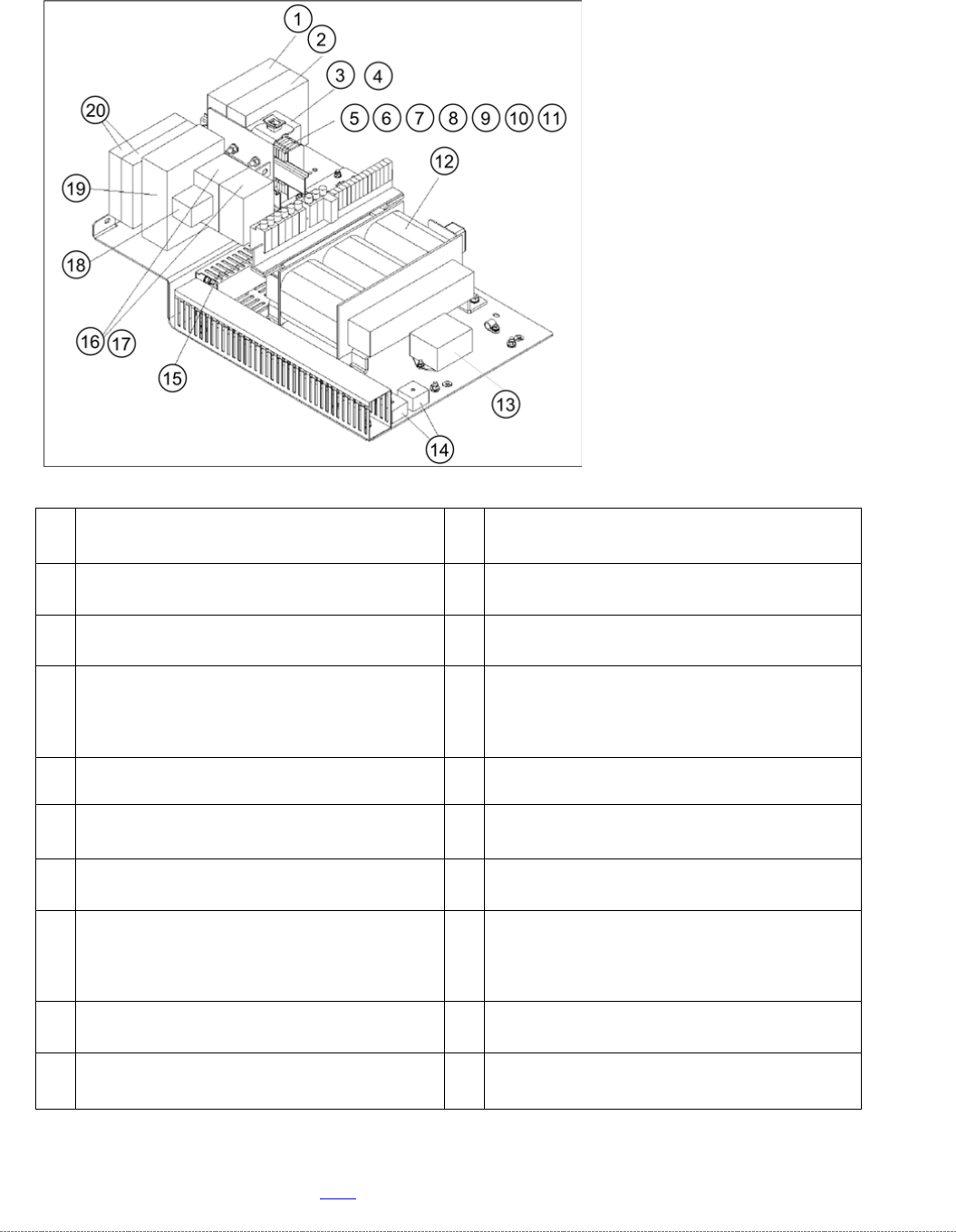

3.6.4.3 Power Supply WPC6
1
Inrush current limitation board WPC NS
[03056232-xx]
11
End plate, gray, type 282-311 [00372782-
xx]
2
Inrush current limitation board WPC
[03047752-xx]
12
Transformer WPC5 [03057556-xx]
3
Contactor 3RT10 15-2BM42 [03048357-
xx], K4
13
Line filter for 3-phase system 10A
[03048582-xx]
4
Suppression diode for contactors DC150-250V
[03048925-xx] discontinued,
Surge suppressor diode 3RT2 150-250V
LED [03171141-xx] successor; on K4
14
Rectifier bridge 800V / 25A [03048868-xx]
5
Ground terminal block 4-cond 280-677
[00323829-xx]
15
Cable duct 40X40mm GYT1-40X40
[03008823-xx]
6
Through terminal block GY 4-con. 280-633
[00323828-xx]
16
Contactor 3RT10 15-1BB42 [03048563-xx],
K2 und K3
7
Adjacent jumper 280-402 [0035338-xx]
17
Suppression diode for contactors DC 24-
70V [00342396S01] on K3
8
End plate 2.5mm orange 280-315
[00323836-xx]
18
Suppression diode for contactors DC 24-70V
[00342396Sxx] discontinued,
Surge suppressor diode 3RT2 24V-70V
LED [03171140-xx] successor; on K3
9
Screwless end stop 6 m 249-116
[00356396-xx]
19
Emergency stop switchgear 3TK2828-
1BB41 [00372649-xx], K1
10
Fuse clamp 10A (6.3X32) 282-128
[00372781-xx]
20
Emergency-Stop and protective door
monitoring [03056745-xx], K5 and K6
For a detailed overview of the connections, see "3.7.1.3 Detailed Connections for Limit Switches,
Sensors and Light Barriers" [➙ 3-72].
Service Manual Internal WPC5 / WPC6
Page 3-63
Non-Stop-Module Elektrics [03057797-xx]
Parts
Quantity
Name
Item no.
1
Table plate electrics
03057798-xx
1
Power cable load axis
03056950-xx
1
Signal cable load axis
03056948-xx
1
Reference point proximity switch load axis
03056947-xx
1
ble: operat. button with signal light
03057602-xx
1
Cable: Safety sensor loading flap
03057600-xx
1
Cable: safety sensor hand guard
03057601-xx
1
Cable: lifting magnet safety flap closing
03057603-xx
1
Cable: lifting magnet safety flap opening
03057604-xx
1
Crash light barrier normal components load
axis
03057012-xx
1
Crash light barrier high components load axis
03057291-xx
1
Cable: sensor safety flap open
03057598-xx
1
Cable: sensor tray correctly inserted
03057599-xx
1
Cable: sensor tray detection load axis
03071453-xx
Service Manual Internal WPC5 / WPC6
Page 3-64
3.6.5 Power Supply Unit
3.6.5.1 Replacing the Protective Contactor Combination (SSK)
Spare Part
• Protective contactor combination (SSK) 3TK2828-
1BB41 [00372649-xx]
Removal / Installation
➢ Label all connections for easier installation later.
➢ Unplug all connections from the protective contactor combination.
➢ Lever the protective contactor combination off the mounting rail.
➢ Connect the new protective contactor combination to the mounting rail and restore the
electrical connections..
Settings
➢ Adjust the setting screw (1) to a value of 0.5 (seconds). If the value is set too high, an error
message will be issued.
➢ Seal the setting screw with locking varnish.
The protective contactor combination (SSK) is
located at the front of the electrical unit (see "3.6.2
Overview"[➙ 3-47]).
1. setting screw
