Service Manual In ternal WPC5 / WPC6 Page 5-152 Push this up to the st opper of the gauge. Then tighten the t wo screws again. Figure 5.7: Set ting the spring s topper WARNING Caution: Now remove the “ J ig stopper spr…
Service Manual Internal WPC5 / WPC6
Page 5-151
5.4 Setting the spring stopper
The gauge is clamped in the tower.
The tower is not at the same height as the feed level.
WARNING
Move the feed axis out of the vicinity of the tower
Move the feed axis (without gauge) out of the tower into the transfer position.
Next insert the "Jig stopper spring cmpl." [03093820-01] into the baseplate of the gauge.
Figure 5.5: Base plate of the gauge with spring stopper attachment.
Release the two screws between the "Spring stopper, complete" and the frame.
Figure 5.6: Setting the spring stopper
Service Manual Internal WPC5 / WPC6
Page 5-152
Push this up to the stopper of the gauge.
Then tighten the two screws again.
Figure 5.7: Setting the spring stopper
WARNING
Caution:
Now remove the “Jig stopper spring cmpl." [03093820-01].
If you do not do so, there is an increased risk of a crash!
Service Manual Internal WPC5 / WPC6
Page 5-153
5.5 Setting the position of the guide rails
Make alignment marks on all the guide rails of the tower as shown below.
Figure 5.8: Marking the chamfers of the guide rails

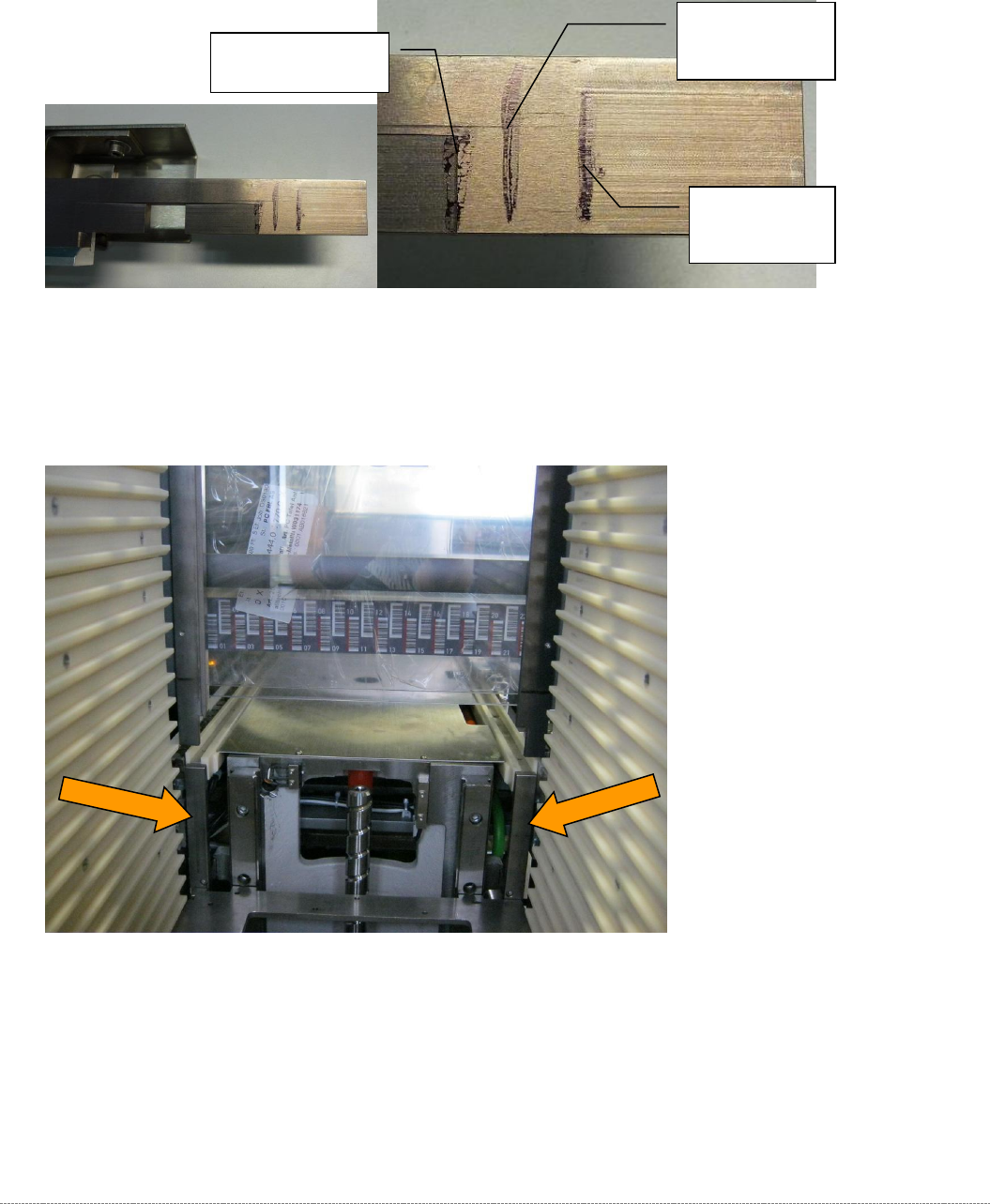

5.5.1 Front, bottom guide rail (transition to feed axis)
Figure 5.9: Front, bottom guide rails
Move the tower further down until the gauge is at the same height as the alignment marks for the
start of the chamfer of the bottom guide rails.
The left-hand rail is installed slightly lower than the right-hand rail.
You should therefore always position the lifting axis in such a way that the gauge is aligned with the
height of the marking on the left-hand guide rail!
At the start of the
top chamfer
At the start of
the bottom
chamfer
Centrally
between the
two chamfers
