Service Manual Internal WPC5 / WPC6
Page 3-108
3.7.16 Sensor 17 NSM (WPC6) – Safety Sensor loading flap
Spare Part
• Safety sensor loading flap [03056989-xx]
Removal / Installation
➢ Remove the cover on the load unit (see "3.5.1.1 Remove the Cover on the Load Unit" [➙ 3-
33]).
➢ Open the loading flap.
➢ Disconnect the cable x2j from the sensor and unthread it.
➢ Remove the two fastening screws and then take off the sensor.
➢ Insert the new sensor and fix into place with the two screws.
➢ Thread the sensor cable into place again and reconnect it.
➢
Fit the cover back on the loading unit.
Legend
1. Actuator BPS 260-2
2. Button with signal light
3. Safety sensor loading flap
Service Manual Internal WPC5 / WPC6
Page 3-109
3.7.17 Sensor 14 NSM module (WPC6) – Tray detection sensor
Spare Parts
• Sensor Tray detection load axis [03056989-xx]
Removal / Installation
➢ Remove the cover on the load unit (see "3.5.1.1 Remove the Cover on the Load Unit" [➙ 3-
33]).
➢ Dismantle the lifting magnets (see "3.5.4 Replace the Lifting Magnets" [➙ 3-40]).

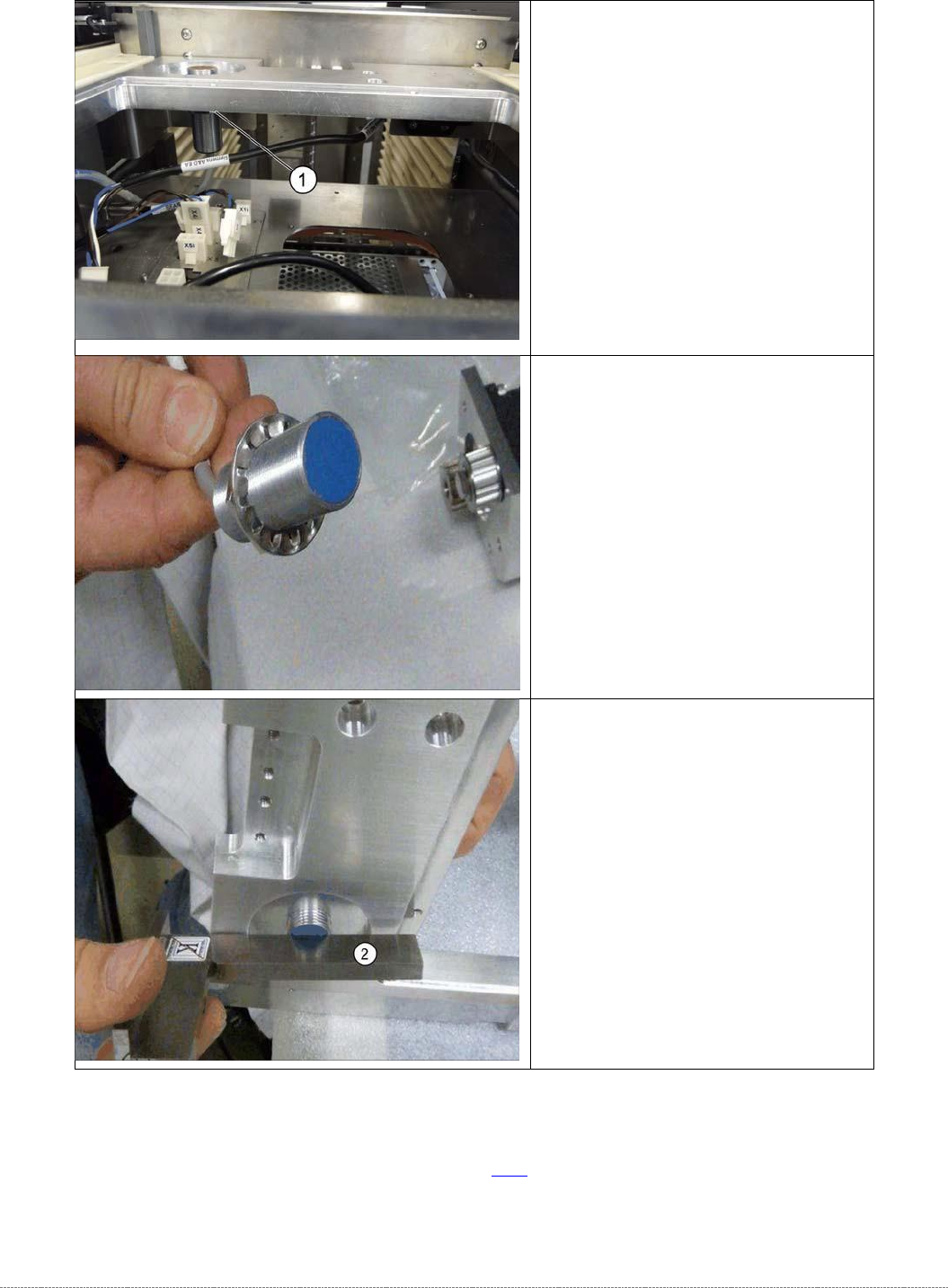

Legend
1. Sensor tray correctly inserted
2. Sensor tray detection load axis
➢ Disconnect connector X5 from the
circuit board.
Service Manual Internal WPC5 / WPC6
Page 3-110
See also….
@3.5.2 Replacing the Load Axis Drive Motor [
➙
3-35]
➢ Loosen the counternut fastening
the sensor on the underside of the
base plate and unscrew the sensor
(1).
➢
Screw the new sensor into the table
plate.
➢ The sensor should protrude
between 0.2 mm and 0.5 mm
above the table plate. Check this
with a straight edge (2).
➢ Use a counternut to fix the sensor
on the underside (1).
➢ Reconnect connector X5 to the
circuit board.
