Service Manual Internal WPC5 / WPC6
Page 5-145
5 Working with the Adjustment Gauge for WPC
5.1 Preconditions:
To move the Gauge over the switching point of the „crash light barrier tower“ (see
5.6
, it must be
moved with the lifting axis using an "invisible mode".
However, this mode only works with WPC firmware ≥ 3.01.
This is included in the following versions of the station software:
≥ SW 704.03 SP1 HF5.
≥ SW 705.04 SP1 HF5.
Before you start work, make sure that the WPC is using the correct firmware version.
5.1.1 Lifting axis in „Unsafe Mode“
WARNING
! Liftign Axis in „Unsafe Mode“ !
To the drive the lifting axis in step procedure, you need to activate the so-called “Unsafe
Mode”.
Only move the lifting axis with caution and only in small (manageable) steps!
NOTICE
Operation with Caccia
In order to obtain a better coverage of various set points, the WPC can also be taken out
oft he machine and the axis can be driven by CACCIA Software.
Service Manual Internal WPC5 / WPC6
Page 5-146

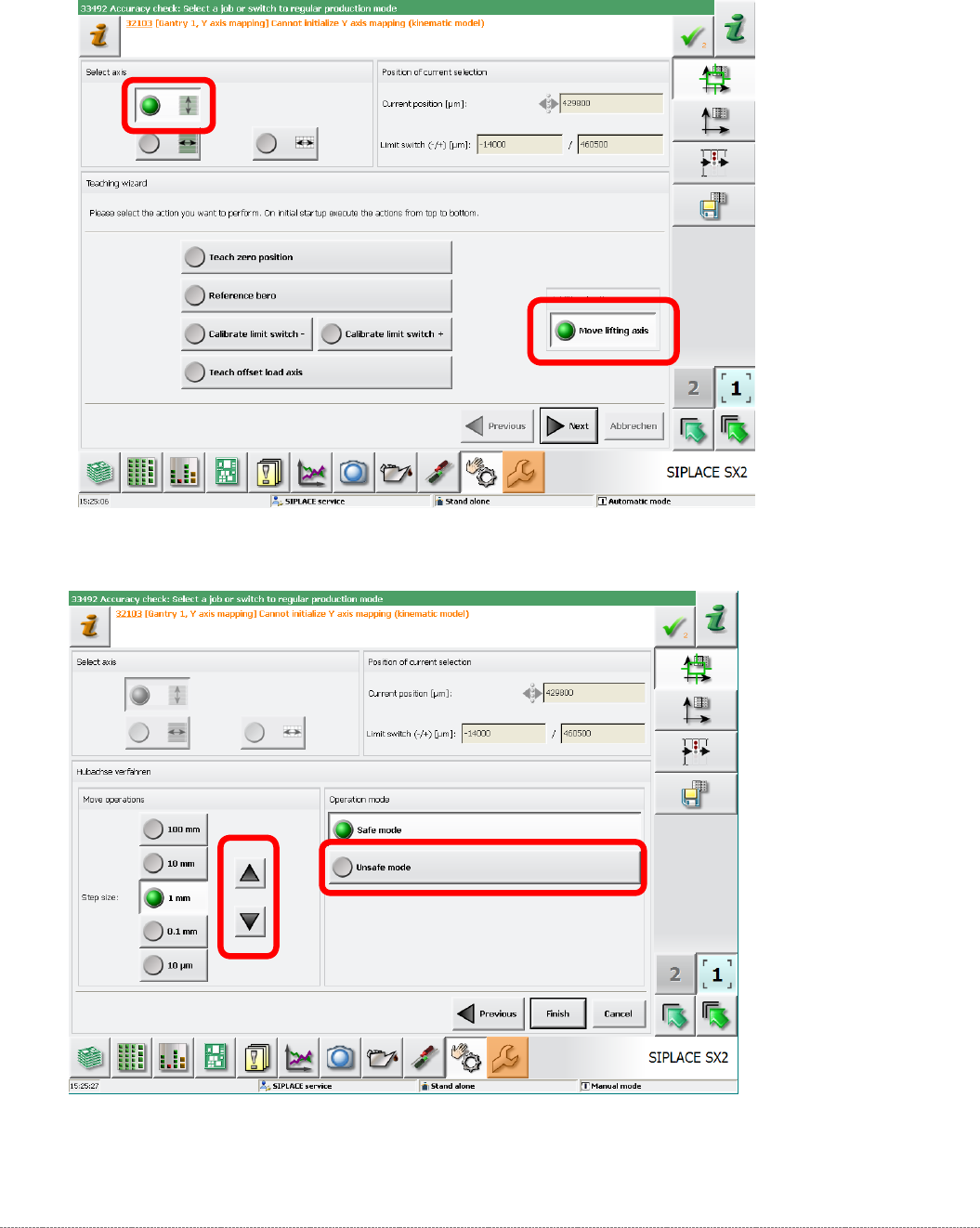

You are in the „Teach Assistent“ of the software.
⇨ Sensors and Functions ⇨ Location ⇨ Check Functions of WPC ⇨ Additional Functions ⇨ Lifting axis
selected ⇨ Move lifiting axis ⇨ Continue.
…… ⇨ Unsafe Mode wählen ⇨ Select Step size ⇨ move lift axis with arrow keys.
If you left the page with „Finish“, the „Unsafe Mode” is automatically ended and switchted back to
Safe Mode.
Service Manual Internal WPC5 / WPC6
Page 5-147
5.2 Construction of the Gauge, parts list
Level ²
Pos.
Part Number
FS
Product Name
For
WPC
Service-
Level ³
0
03093396-
02
Adjustment and testing jig WPC4-6 compl.
4/5/6
T3
1
1
03073064-
02
Jig for WPC4-6 base plate
4/5/6
T1
1
2
03093895-
02
Adjustment-Jig crash-LS-WPC4-6 (step)
4/5/6
T1
1
03093896-
02
service paket jig WPC4-6
4/5/6
T3
.2
3
03093864-
01
clamping readout tower adjust.WPC4-6 cpl
4/5/6
T3
.2
4
03093815-
01
rail for ingate cmpl.
6
T3
.2
5
03093816-
01
Bar for crash-LB transfer pos. feed axis
5/6
T3
.2
6
03093820-
01
Jig stopper spring cmpl.
5/6
T3
.2
7
03110862-
01
Gauge base setting base plate position
4/5/6
T3
1
8
03110969-
01
Mounting aid WPC6 HC cpl.
4/5/6
T1
1
9
03110962-
01
Mounting aid WPC4-6 old LB cpl.
4/5/6
T1

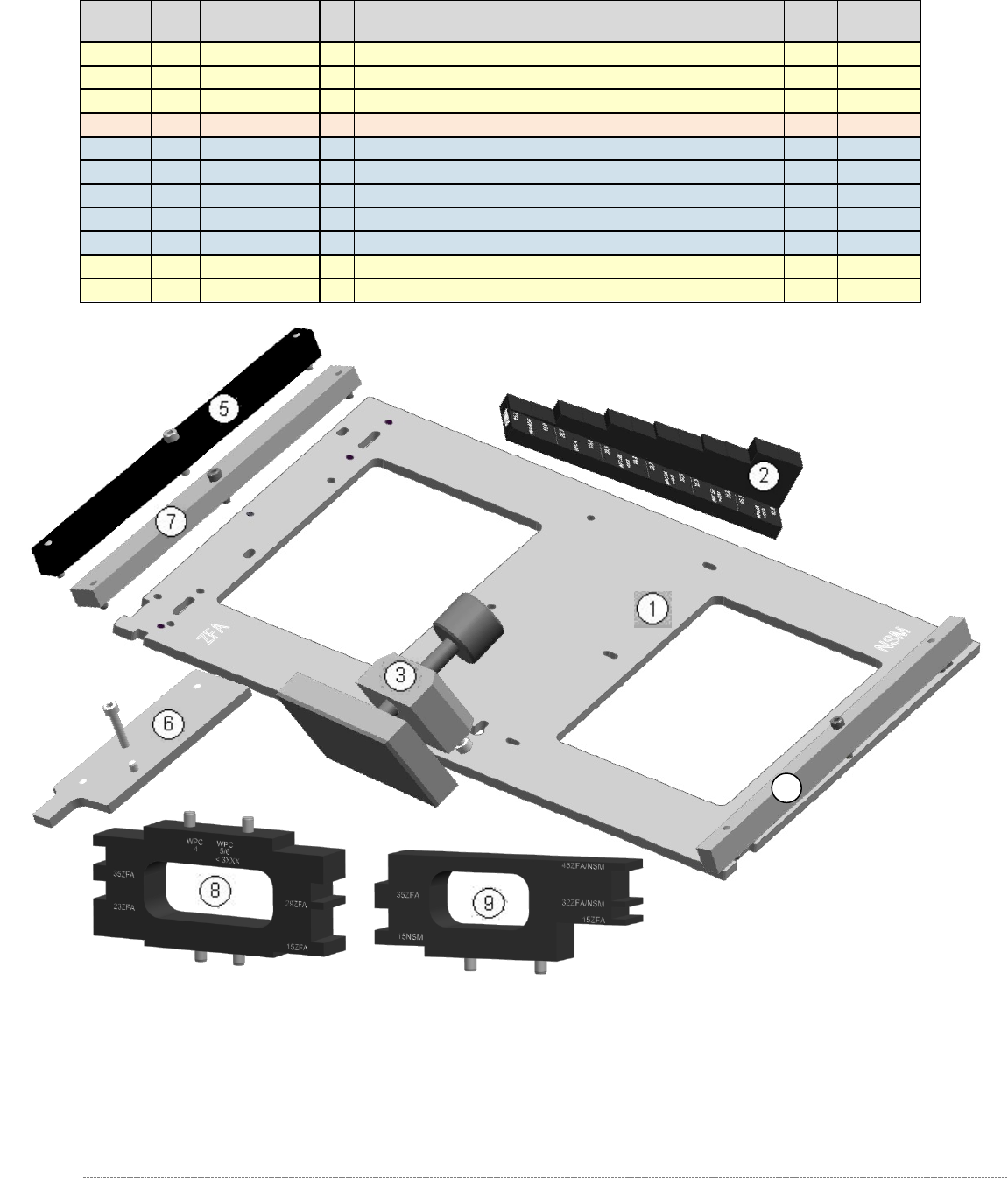

Figure 5.1: „Adjustment and testing jig WPC4-6 compl.“ [03093396-02]
² : Level in Bill of material (BOM). Level . 2 means: this article is part of the upper laevel 1.
³ : Availability in Service: T1 - Tool Level 1 (Customer); T3 - Tool Level 3 (Service SIPLACE)
