Service Manual Internal WPC5 / WPC6

 Page 5-159

5.5.4 Setting the top, front guide rails (position of the tower cover)

Figure 5.17: Front, top guide rails

Move the tower upwards, until the gauge is above the guidelines on the starting slopes of the upper

guide rails.

These guide rails are mount on the front part of the tower cover. Therefore, this is a setting,

depending on the adjustment of the tower cover position itself.

Figure 5.18: Gap at the front, top guide rail, checking the bottom position, 0.2 mm

First check the gap between the gauge and the guide rails using a 0.2 mm feeler gauge.

Service Manual Internal WPC5 / WPC6

 Page 5-160

If the position needs to be corrected, the tower cover must be moved.

To do this, you should release (but not remove) all six screws that secure the tower cover to the

frame of the WPC.

Figure 5.19: Screws securing the tower cover to the WPC frame

Now move the top cover (tower cover) to achieve a gap of 0.2 mm between the two front guide rails

and the gauge.

Now remove the gauge from Division 5 and insert it in division 24 (fifth from the top).

Clamp the gauge in the same way as you did in Division 5 , with the „Gauge base setting base plate

position“ [03110862-xx] touching the guide rails of the lifting axis. See section 5.3.

Move the tower up.

Use a feeler gauge to check the gap between the front guide rails and the baseplate of the gauge.

It should be in the range 0.2 mm to 0.7 mm.

NOTICE

Using 2 base plates

If you are using two gauges, you can now set the bottom and top positions at the top,

front guide rail together.

Finally tighten the 6 securing screws for the cover again. To do this, use a torque wrench set to a

tightening torque of 5 Nm.

Then apply red screw locking varnish [00318197-01] to these screws.

Service Manual Internal WPC5 / WPC6

 Page 5-161

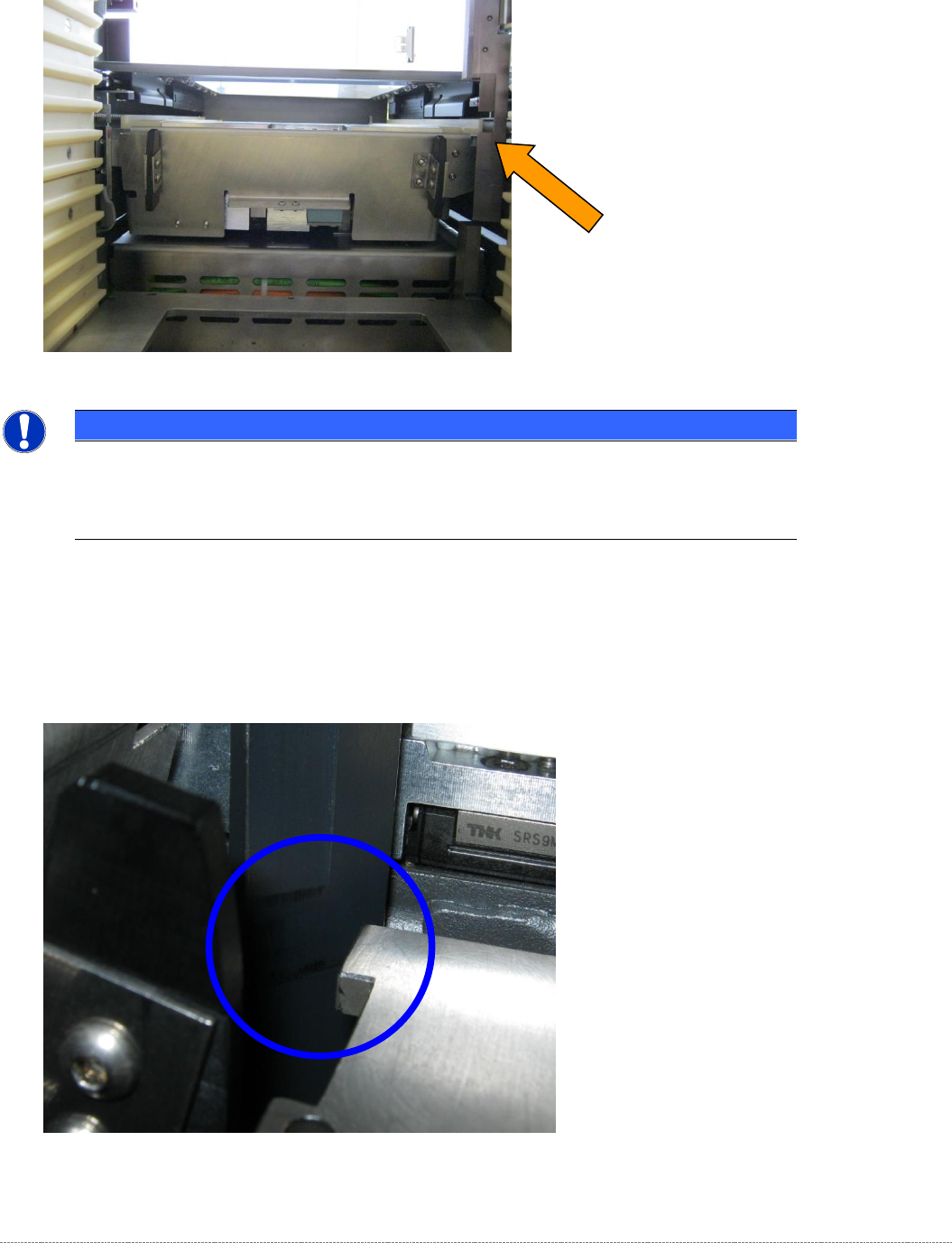

5.5.5 Settings for the stopper strip (rear, top guide rail)

Figure 5.20: Screws securing the tower cover to the WPC frame

NOTICE

Using 2 base plates

In particular when you are setting the stopper strip, it is recommended that you use 2

gauges in the tower as described above.

If you are only using one gauge, insert it in Division 24 (fifth from the top).

Clamp the gauge in the same way as described above, with the „Gauge base setting base plate

position“ [03110862-] touching the guide rails of the lifting axis.

Then position the tower in such a way that the gauge is located between the two alignment marks on

the small, flat surface of the rail.

Figure 5.21: Alignment marks on the stopper strip (top, rear guide rail, bottom position)
