Installation
Gantry 1/3: Removing the Y Trailing Cable and Trailing Interface 3.1.4 Removing the Top Cover
106 Gantry Retrofit Portalnachrüstung
3.2
3.2 Gantry 1/3: Removing the Y Trailing Cable and Trailing Interface
Gantry 1/3: Removing the Y Trailing Cable and Trailing Interface
NOTICE
Gantry 1 or 3
If a gantry is retrofitted in a placement area (PA), you will need to replace the long trailing cable
for the gantry already fitted with the shorter version. The trailing interface must also be moved.
This procedure is exactly the same for both PA1 and PA2.
NOTICE
Service manual
► Observe the relevant chapter in the service manual.
► Remove the screws (2) and dismantle the covers (1)
on the trailing interface boards in both placement ar-
eas.
► Unplug all pneumatic connections (blue, black and
white hoses) (2).
► Unplug all electrical connections (1) on the trailing in-
terface and Vision Hotlinik Adapter.
► Remove the long screw (3) with the Y pieces.
► Use a cable tie to bind all cables and hoses together.
► Loosen the three screws (1) fastening the bottom
holder on the Y trailing cable.
⇨ The lower end of the Y trailing cable has now been
completely disconnected from the machine.
Installation
3.1.4 Removing the Top Cover Gantry 1/3: Removing the Y Trailing Cable and Trailing Interface
Gantry Retrofit Portalnachrüstung 107
► Unplug all electrical connections (1) from the top of
the Y gantry interface.
► Loosen the six screws (1) fastening the cover on the
hose couplings.
► Remove the two cable ties (2).
► Unplug all pneumatic connections (1).
► Disconnect the cooling air tubes from the Y motor.
► Pull the cooling air hoses back through the goose-
neck (Y trailing cable holder).
Installation
Gantry 1/3: Removing the Y Trailing Cable and Trailing Interface 3.1.4 Removing the Top Cover
108 Gantry Retrofit Portalnachrüstung

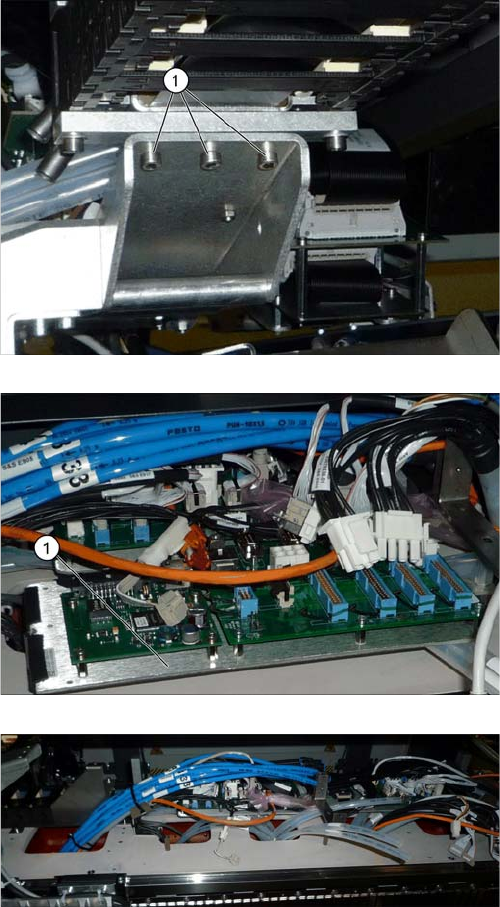

► Loosen the three screws (1) fastening the top Y trail-
ing cable.
⇨ The top end of the Y trailing cable has now been com-
pletely disconnected from the gantry.
► Carefully remove the Y trailing cable from the ma-
chine.
► Remove the trailing interface (1) and the Vision Hot-
link Adapter (2), together with the plate on which
these are fitted.
Removal of the Y trailing cable, trailing interface and Vi-
sion Hotlink Adapter has been been completed.
