Appendix 4.1.2 Overview of GCUs Excerpts from the Service Manual Gantry Retrofit Portalnachrüstung 141 DIP switch (gantry ID) LEDs Switch Status Signal name Description GCU1 GCU2 GCU3 GCU4 S1.1 ON/OFF Gantry_ID_0 OFF ON …

Appendix

Excerpts from the Service Manual 4.1.2 Overview of GCUs

140 Gantry Retrofit Portalnachrüstung

4.1.2

4.1.2 Overview of GCUs

Overview of GCUs

Overview GCUs

Appendix

4.1.2 Overview of GCUs Excerpts from the Service Manual

Gantry Retrofit Portalnachrüstung 141

DIP switch (gantry ID)

LEDs

Switch Status Signal name Description

GCU1 GCU2 GCU3 GCU4

S1.1 ON/OFF Gantry_ID_0 OFF ON OFF ON

S1.2 ON/OFF Gantry_ID_1 OFF OFF ON ON

S1.3 ON/OFF Gantry_ID_2 OFF OFF OFF OFF

S1.4 ON/OFF Gantry_ID_3 OFF OFF OFF OFF

LED Color Status Signal name Description

H1 RD ON LED_ERROR Error display

H2 GN ON A1_LED_PM_ON_N Power module activated, axis 1

H3 GN ON A2_LED_PM_ON_N Power module activated, axis 2

H4 GN ON A1_LED_END End position signal, axis 1

H5 GN ON A2_LED_END End position signal, axis 2

H6 GN ON LED_READY Ready

H7 GN ON P24V +24VDC

H8 GN ON P5V +5VDC

Appendix

Excerpts from the Service Manual 4.1.3 Replacing the Y Axis Incremental Encoder [03094996-xx]

142 Gantry Retrofit Portalnachrüstung

4.1.3

4.1.3 Replacing the Y Axis Incremental Encoder [03094996-xx]

Replacing the Y Axis Incremental Encoder [03094996-xx]

Parts, equipment and tools

▪ Select the correct incremental encoder:

▪ If needed, mounting bracket for Y axis sensor [03086842-xx]

▪ Test device PG1-I (MS22/MS30) assembly [03102699-xx]

▪ Ethanol

Isopropanol – IPA can be used as an alternative.

Overview

Removal

► Unplug the incremental encoder press-fit connection from the gantry interface. In this case, make a

note of the position, to make clear assignment easier later on.

► Unthread the connection cable as far as the incremental encoder.

► Loosen the three screws fastening the incremental encoder holder and carefully remove this togeth-

er with the incremental encoder.

X4i S, X4 S, X3 S, X2 S X4i S micron, X4 S micron

Read head MS22.84 Y axis [03094996-xx] (includ-

ing plastic thickness gauge)

RSF MS30.53 MK read head Y axis [03102065-xx]

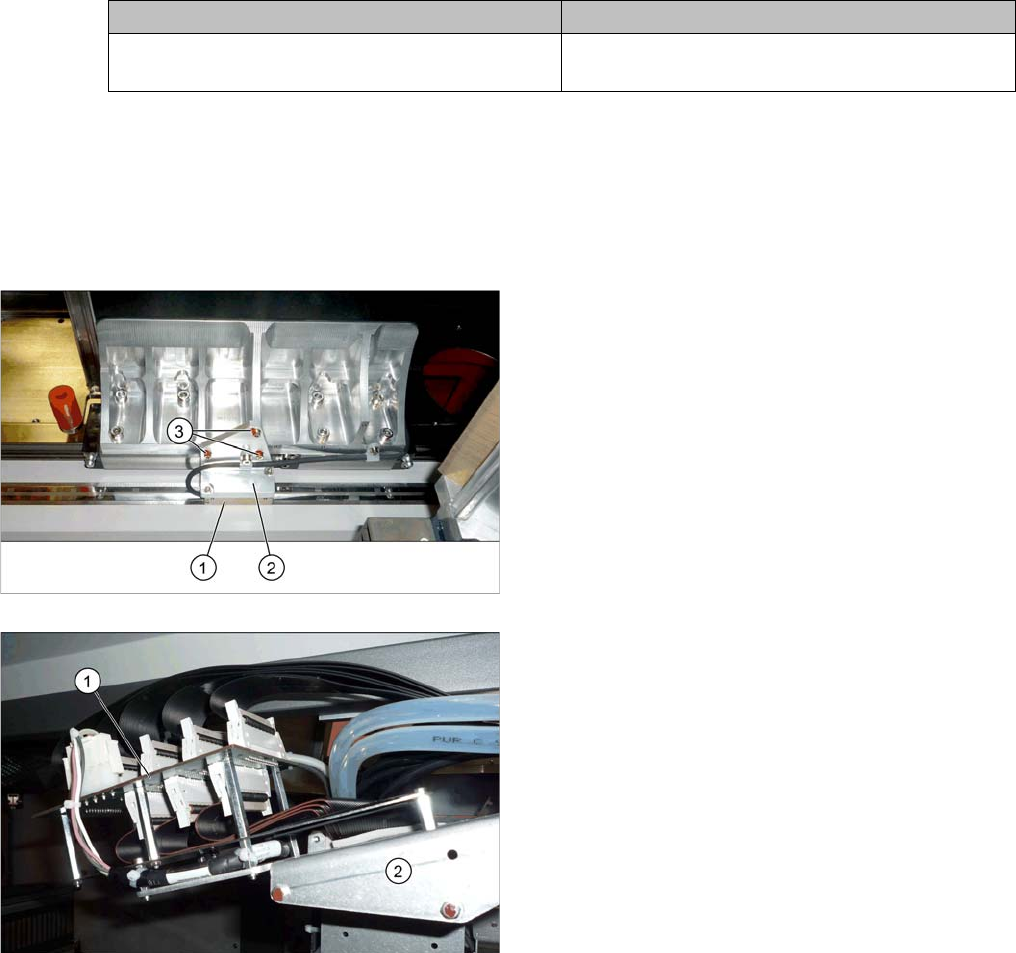

1. Incremental encoder (mounted on the holder)

2. Holder

3. Fastening screws (3x) for holder

1. Gantry interface

2. Trailing cable holder on gantry
