Installation 3.1.4 Removing the Top Cover Fitting the Y Trailing Cable for th e New Gantry 2 /4 Gantry Retrofit Portalnachrüstung 121 3.7 3 . 7 F it t in g t h e Y T r a ilin g C a b le f o r t h e N e w G a n t r y 2 / …
Installation
Fitting the Y Trailing Cable for Gantry 1/3 3.1.4 Removing the Top Cover
120 Gantry Retrofit Portalnachrüstung
► Further installation is performed by following the above instructions in the reverse order. Also read
section "4.1.1.3 Replacing the Y Trailing Cable" [ ➙ 137].
► Attach the white (1) and black hoses (2) to the gantry.
NOTICE!
The 3rd black hose (3) serves as a spare and is not used.
► Reconnect the electrical and pneumatic systems to
the trailing interface.
► Connect the divided flat ribbon cable to the Vision
Hotlink Adapter, with one section on the trailing inter-
face and the other section on the Vision Hotlink
Adapter (from the back).
Installation
3.1.4 Removing the Top Cover Fitting the Y Trailing Cable for the New Gantry 2/4
Gantry Retrofit Portalnachrüstung 121
3.7
3.7 Fitting the Y Trailing Cable for the New Gantry 2/4
Fitting the Y Trailing Cable for the New Gantry 2/4

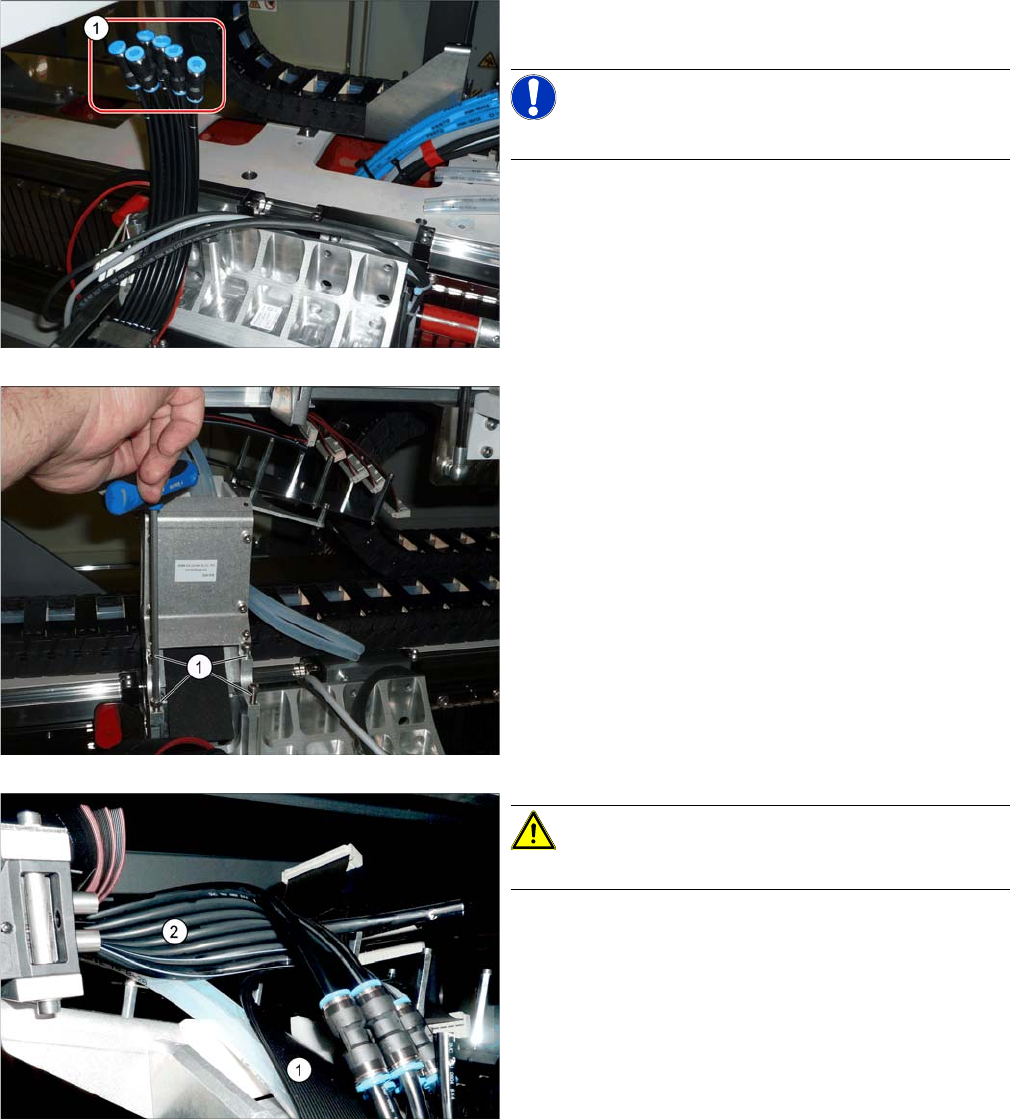

► Position the hose couplings (1) on the black hoses on
the gantry.
NOTICE!
The third hose remains free. This serves as a spare.
► Carefully place the new trailing cable into the ma-
chine.
► Fasten the goose neck to the gantry, with the four
screws (1). Secure the screws with Loctite 241.
CAUTION!
Do not bend the cable or hoses!
► Run the flat ribbon cable (1) from the gantry to the Y
gantry interface. Run the cable with a 90 degrees ro-
tation.
► Run the black hoses (2) from the trailing cable to the
connections on the gantry. Run the cables with a 90
degrees rotation.
Installation
Fitting the Y Trailing Cable for the New Gantry 2/4 3.1.4 Removing the Top Cover
122 Gantry Retrofit Portalnachrüstung

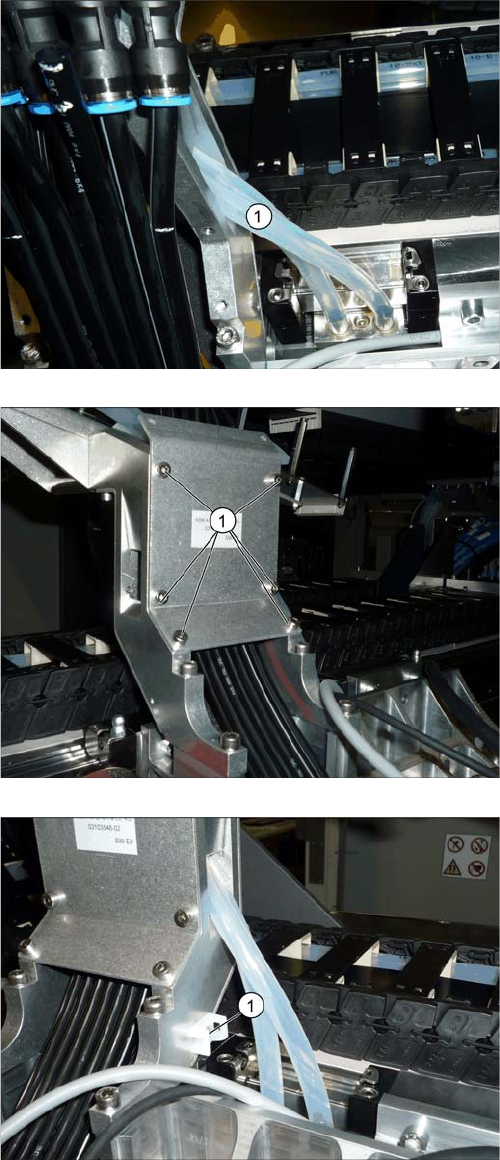

► Run the white hoses (1) from the trailing cable to the
gantry.
► Fasten the cover to the goose neck with the six
screws (1). Secure the screws with Loctite 241.
► Fit the cable holder (1) to the goose neck.
